Mission · Speakers · Floor-standing Speakers

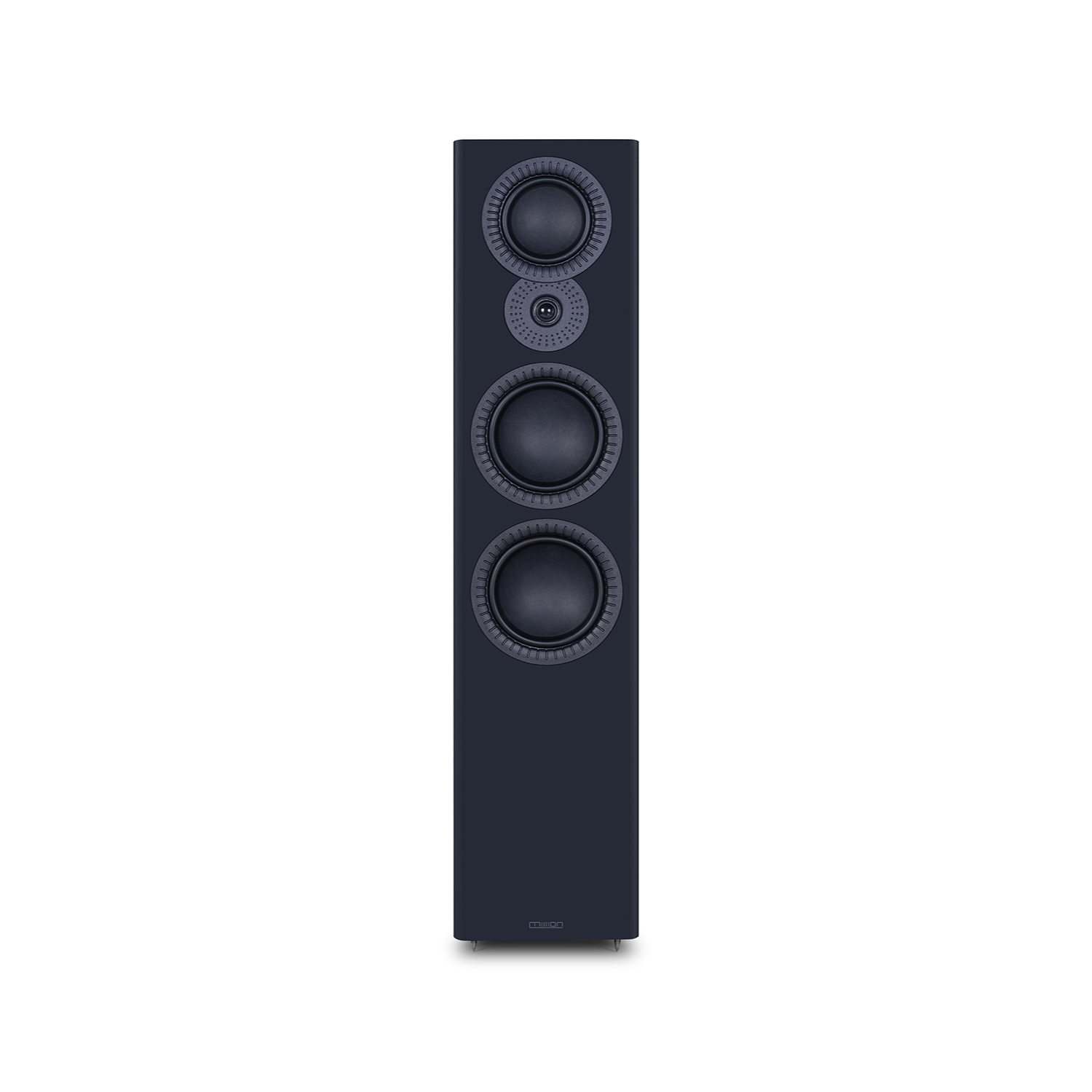

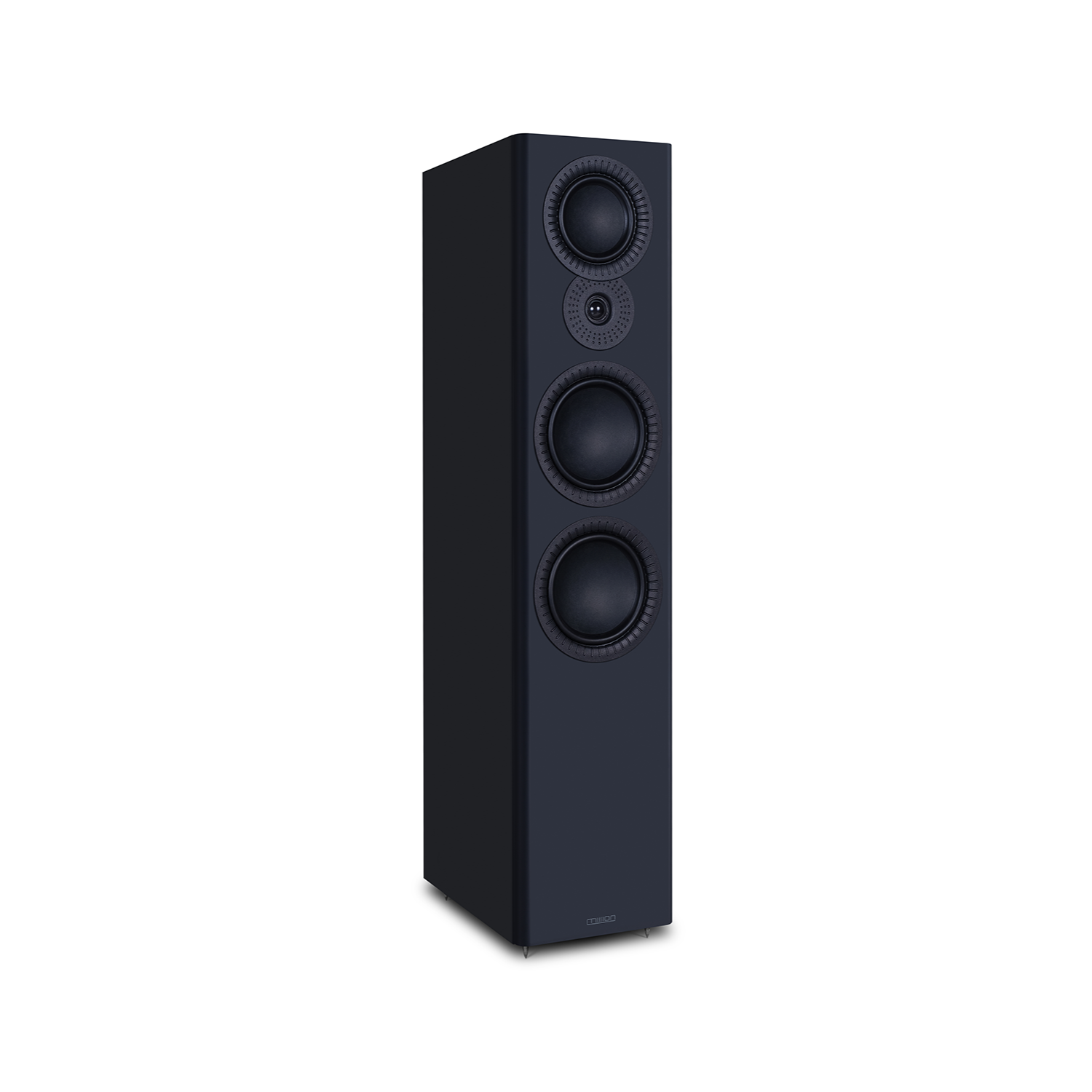

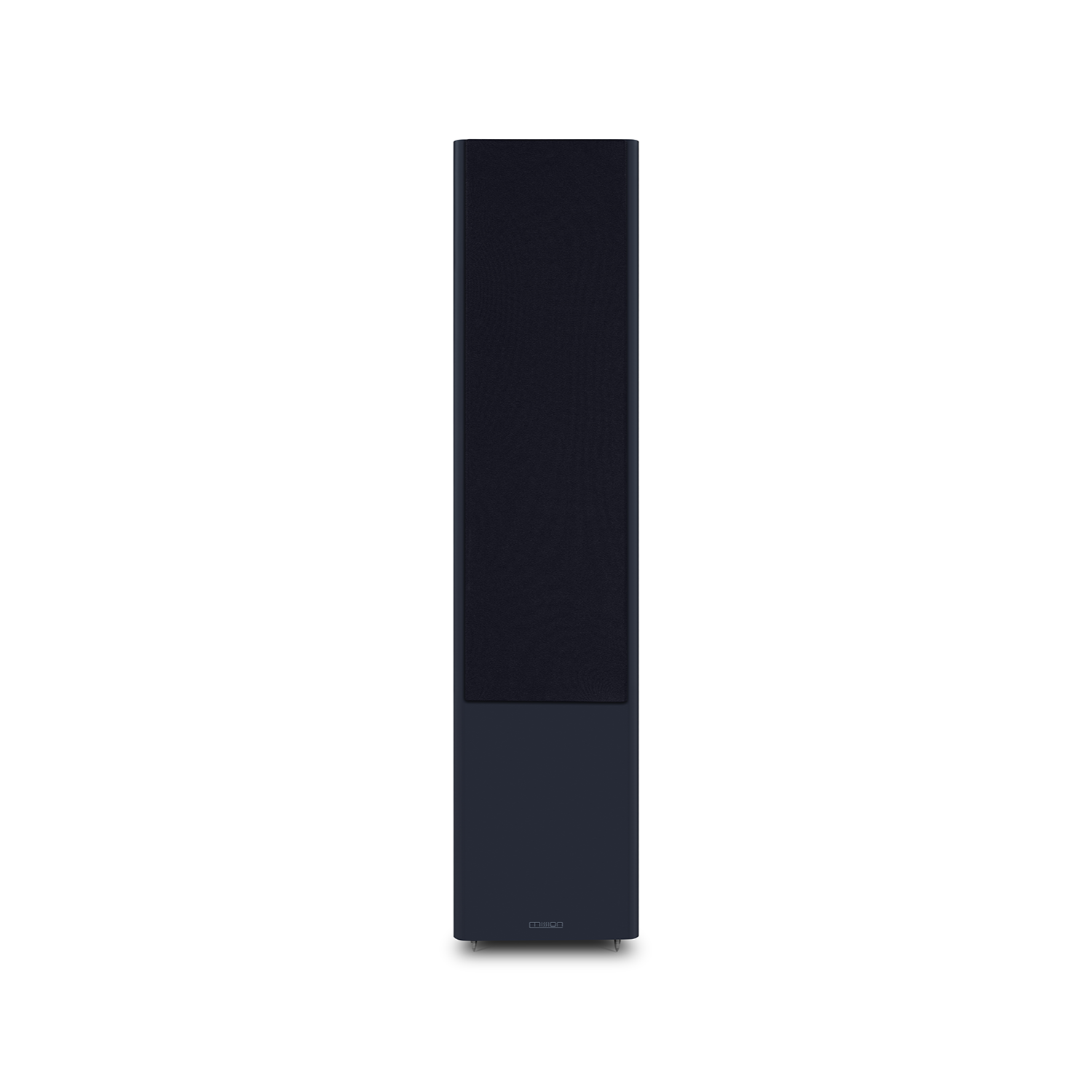

LX-6 MKII
The LX-6 MKII is a 3-way floorstanding loudspeaker in Mission's LX MKII Series, with two 6.5-inch bass drivers, a 5-inch midrange driver, a 25 mm tweeter, and bass-reflex cabinet.
fig. 01 · speakers
LX-6 MKII
538887
out of stock
From Mission
The LX-6 MKII is a 3-way floorstanding loudspeaker in Mission's LX MKII Series. It has two 6.5-inch bass drivers, a 5-inch midrange driver, a 1-inch soft-dome treble unit, Mission's Inverted Driver Geometry layout, and DiaDrive bass-unit engineering carried over from the ZX line. The bass-reflex cabinet delivers 35 Hz to 20 kHz frequency response and 91 dB sensitivity, recommended for 30 to 200 W amplifiers, and each speaker weighs 21.9 kg.
Specifications
| General description | 2-way bookshelf speaker Bass extension(-6dB) 30Hz |
|---|---|
| Enclosure type | Bass reflex Crossover frequency 400Hz,3.3kHz |
| Transducer complement | 2-way Cabinet Volume (in litres) 3.2L/72.5L |
| Bass driver | 6.5"(165mm) composite fibre x2 Height (on plinth) (1000+20)mm |
| Midrange driver | 5"(130mm) composite fibre Width 226mm |
| Treble driver | 25mm microfibre dome Depth (with terminals) (325+8)mm |
| AV shield | No Carton size 445 x 340 x 1115mm |
| Sensitivity (2.83V @ 1m) | 91dB Net weight 21.9kg/pcs |
| Recommended amplifier power | 30-200W Gross weight 24.7kg/ctn |
| Peak SPL | 107dB Finish Walnut Pearl / Lux White / Lux Black |
| Nominal impedance | 8 Ohms Compatible |
| Minimum impedance | 3.0 Ohms |
| Frequency response (+/-3dB) | 35Hz ~ 20kHz |
| Product type | floorstanding loudspeaker |
| Series | LX MKII |
| Speaker type | 3-way floorstanding loudspeaker |
| Bass drivers | two 6.5 inch drivers |
