LX-C1 MKII

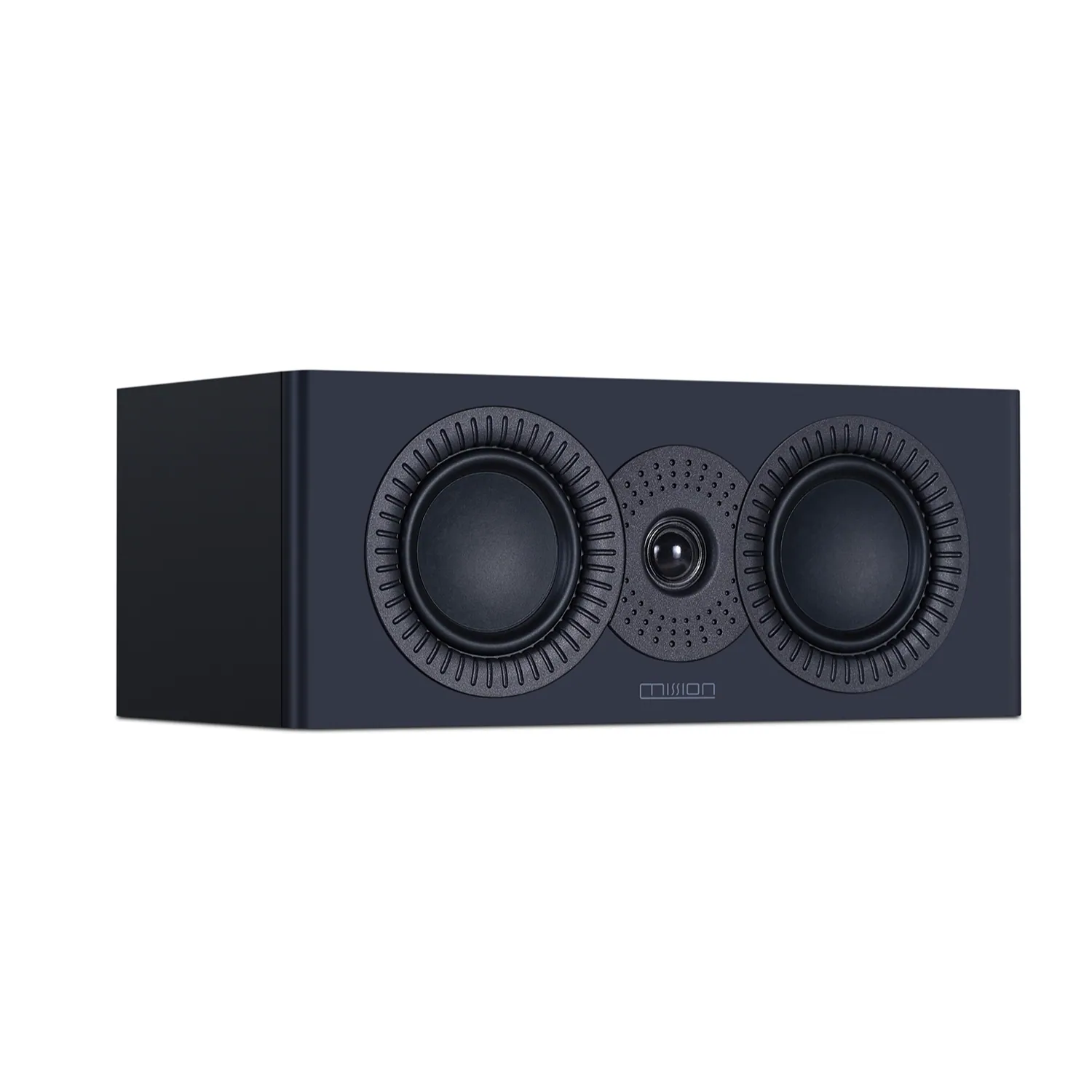

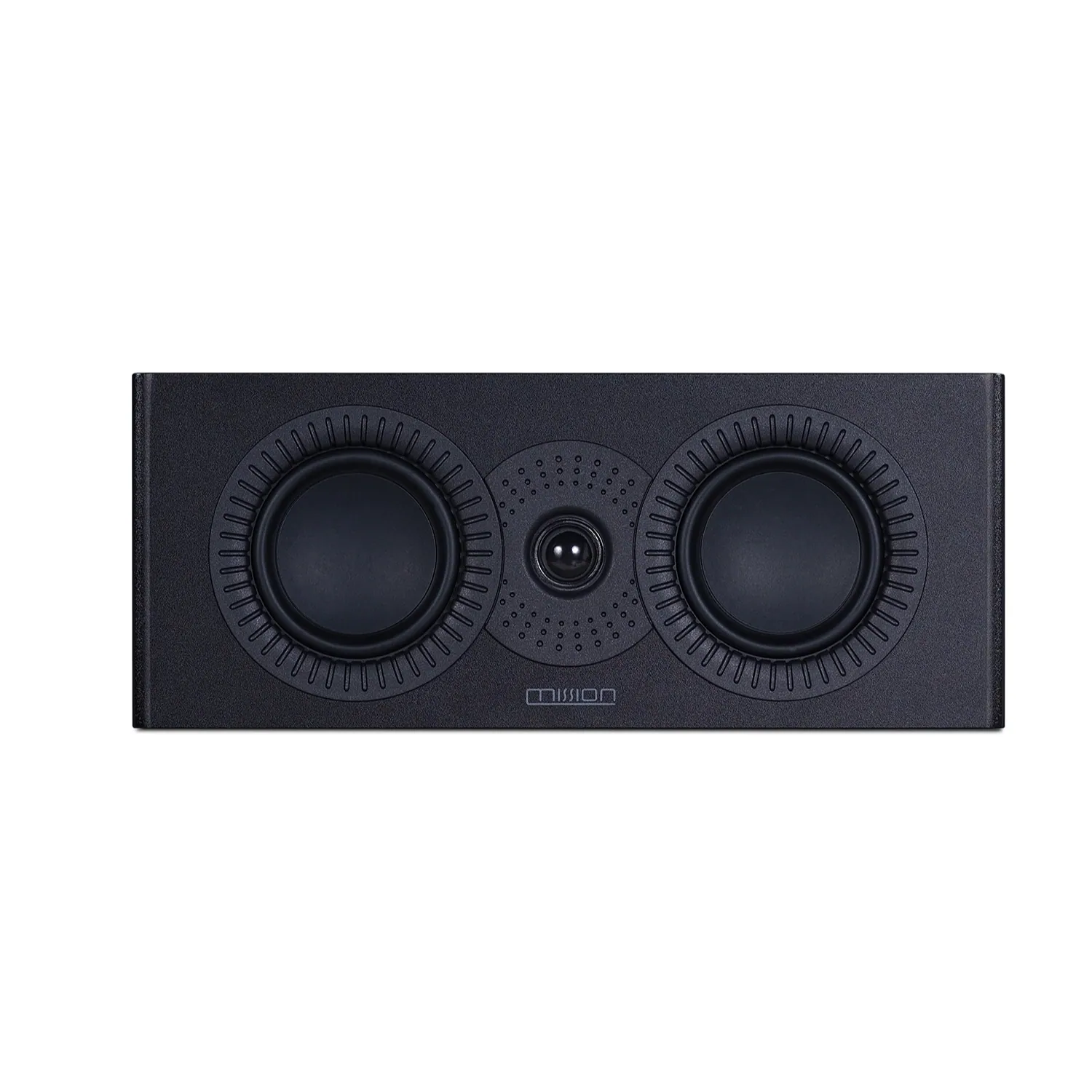

The LX-C1 MKII is a center-channel loudspeaker in Mission's LX MKII Series, with dual 4-inch composite-fibre bass drivers, a 25 mm tweeter, and a closed-box cabinet.
fig. 01 · speakers
LX-C1 MKII
538891
out of stock
From Mission
The LX-C1 MKII is a 2-way center-channel loudspeaker in Mission's LX MKII Series. It has dual 4-inch bass drivers, a 1-inch soft-dome treble unit, Mission's Inverted Driver Geometry layout, and DiaDrive bass-unit engineering carried over from the ZX line. The closed-box cabinet delivers 75 Hz to 20 kHz frequency response and 88 dB sensitivity, recommended for 20 to 100 W amplifiers, and it weighs 6.1 kg.
Specifications
| General description | 2-way bookshelf speaker Bass extension(-6dB) 70Hz |
|---|---|
| Enclosure type | closed-box system Crossover frequency 3.5kHz |
| Transducer complement | 2-way Cabinet Volume (in litres) 7.6L |
| Bass driver | 4"(100mm) composite fibre Height (on plinth) 160mm |
| Width | 400mm |
| Treble driver | 25mm microfibre dome Depth (with terminals) (200+8)mm |
| AV shield | No Carton size 495 x 300 x 255mm |
| Sensitivity (2.83V @ 1m) | 88dB Net weight 6.1kg/pcs |
| Recommended amplifier power | 20-100W Gross weight 7.5kg/ctn |
| Peak SPL | 103dB Finish Walnut Pearl / Lux White / Lux Black |
| Nominal impedance | 8 Ohms Compatible |
| Minimum impedance | 4.3 Ohms |
| Frequency response (+/-3dB) | 75Hz ~ 20kHz |
| Product type | center-channel loudspeaker |
| Series | LX MKII |
| Speaker type | 2-way center-channel speaker |
| Bass drivers | dual 4 inch drivers |
