LX Connect Wireless Speaker System
The LX Connect is a wireless speaker system with active LX-series speakers, a wireless hub, 5.8 GHz uncompressed transmission, and both digital and analogue inputs.
fig. 01 · active speakers
LX Connect Wireless Speaker System
546652
out of stock
6 photographs · 5 shown
From Mission

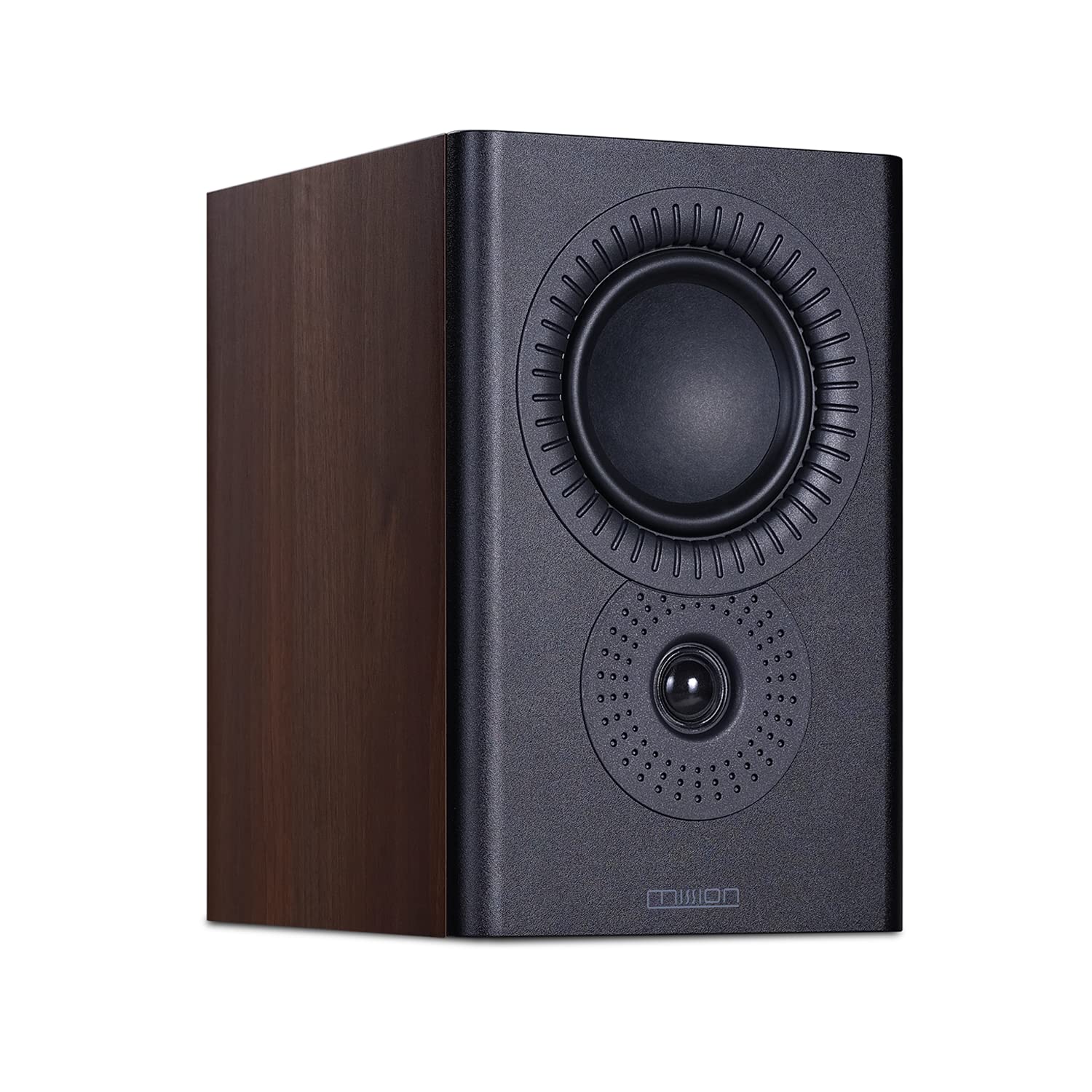

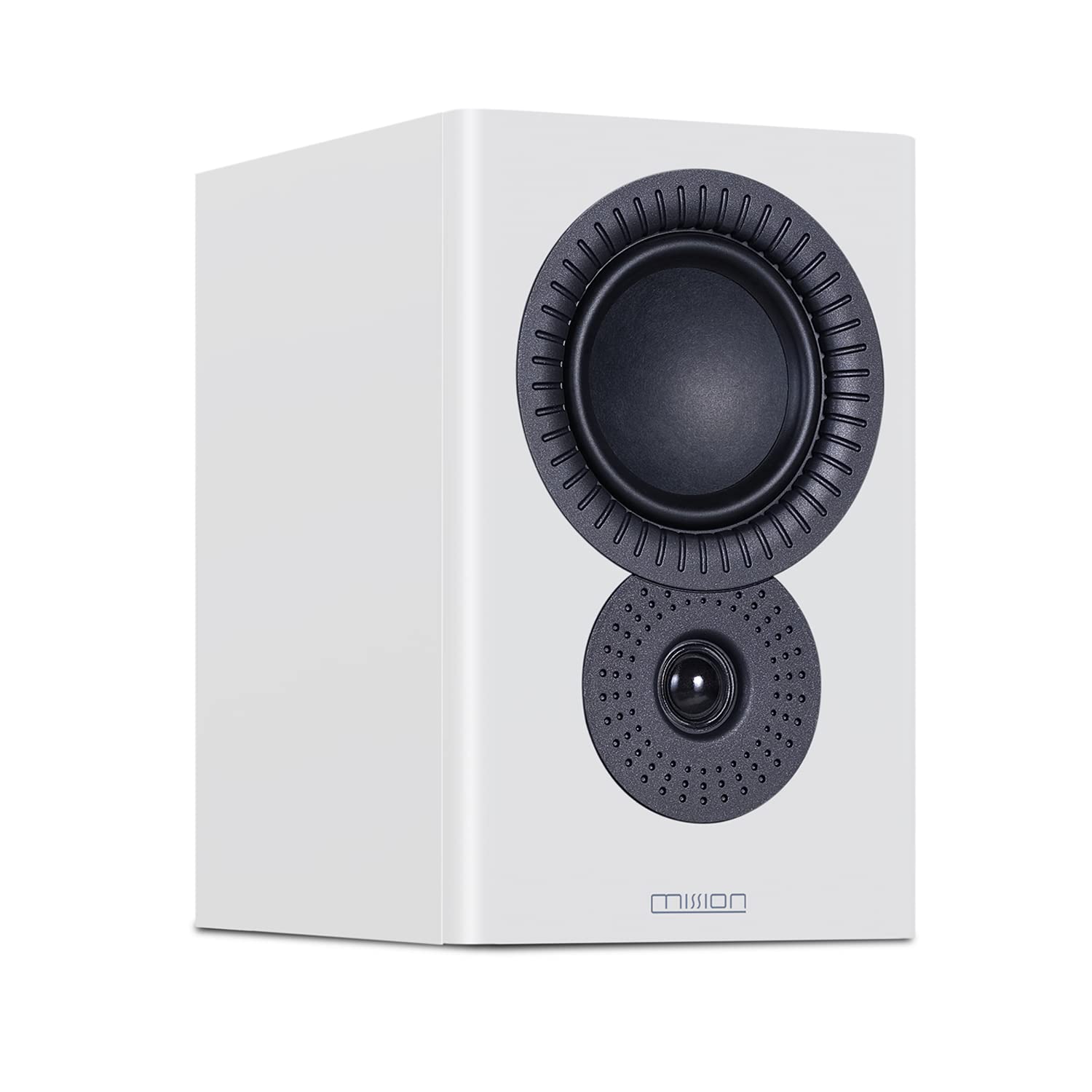

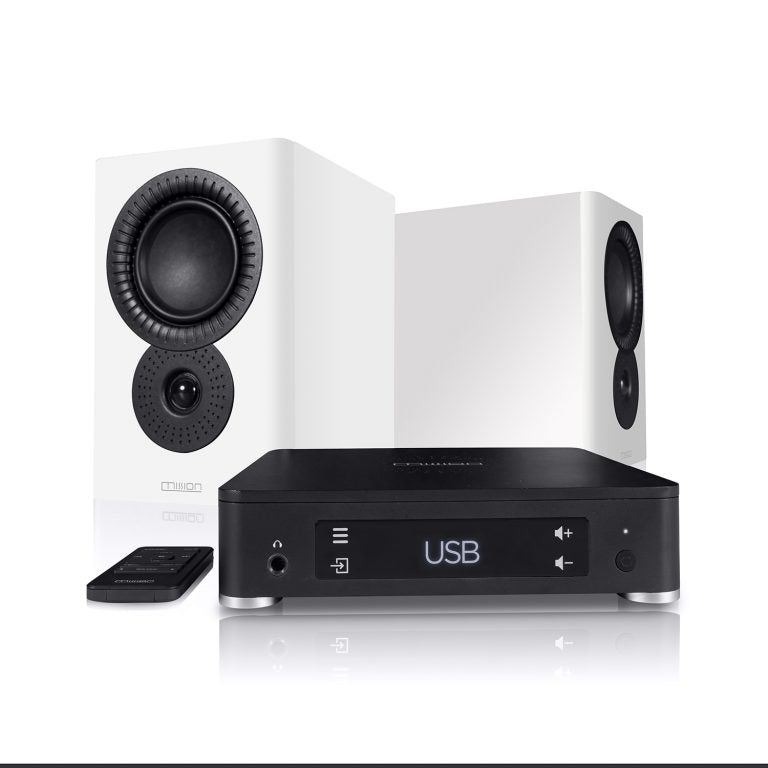

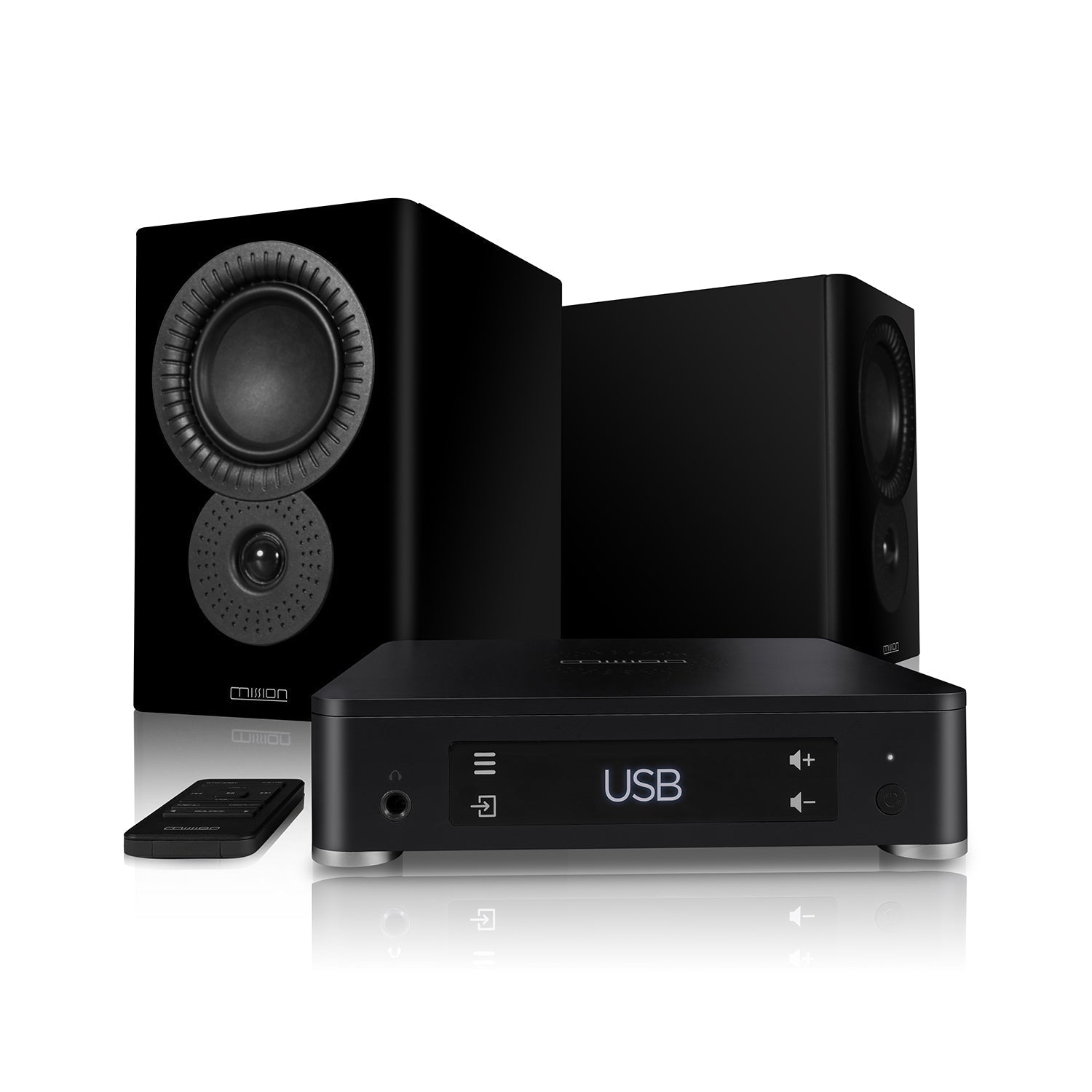

The LX Connect is a wireless speaker system built around active speakers and a separate hub. The hub sends left and right audio to the speakers over 5.8 GHz uncompressed wireless transmission, so there's no cable between the speakers or back to the hub. Each two-way speaker has a 130 mm composite-fibre bass cone and a 25 mm microfibre dome tweeter, rated at 60 W, with optical, coaxial, PC USB, Bluetooth, RCA aux, AV audio, and RCA pre-out connections.
Specifications
| General Description | Wireless Speaker System Active Speakers |
|---|---|
| Design Philosophy And Core Technology | 5.8GHz Wireless Uncompressed Enclosure Type Bass Reflex |
| Technology | Transducer Complement 2-way |
| DAC ESS Sabre 9018 | Drive Unit |
| Support Music And Movie Mode | Bass Unit 130mm Composite Fibre Cone |
| Headphone amplifier | Treble Unit 25mm Microfibre Dome |
| Support USB Upgrade | AV Shielded No |
| Pre Delay Setting | Rated Power Output 60W |
| Roon Tested | Peak Power Output 100W |
| Touch Control | Peak SPL 99dB |
| Analogue Input | RCA (AUX) Frequency Response (+/-3dB) 58Hz - 20kHz |
| Digital Input | OPT, COAX, PC USB, Bluetooth, AV Audio Bass Extension (-6dB) 52Hz |
| Analogue Output | RCA Pre Out Crossover Frequency 3.2kHz |
| Preamplifier hub | Wireless Reception Distance 20m |
| Input Sensitivity | 300mV (AUX IN, volume = MAX) Cabinet Volume 8.2L |
| Input Impedance | 13K (AUX IN) Dimensions Speaker |
| Variable Output Voltage | 0 - 3.2V Height (on feet) 305mm |
| Output Impedance | 100 ohm Width 200mm |
| Frequency Response | 20Hz-20kHz (+/-0.3dB) Depth (with terminals) (250+15)mm |
| Signal-to-noise Ratio | > 100dB (AUX IN, A-weighted) Hub |
| Total Harmonic Distortion | < 0.001% (digital sources ) Width 225mm |
| Sampling Rate | 24bit - 192kHz (OPT, COAX) System |
| Digital Filters | Fast Roll-off, Slow Roll-off, Minimum Phase Gross Weight 17.8kg |
| Finish | Walnut Pearl / Lux White / Lux Black (speakers); Black (hub) |
| Power Requirements | 100-240Vac (50/60Hz) |
| Product type | wireless speaker system |
| Series | LX Connect |
| Components | wireless speakers and hub |
