Mission 750
Two-way Mission 700 Series standmount speaker with a 5.25-inch polypropylene bass driver, 1.25-inch soft-dome tweeter, and bass-reflex cabinet.
fig. 01 · speakers
Mission 750
603062
out of stock
6 photographs · 5 shown
From Mission

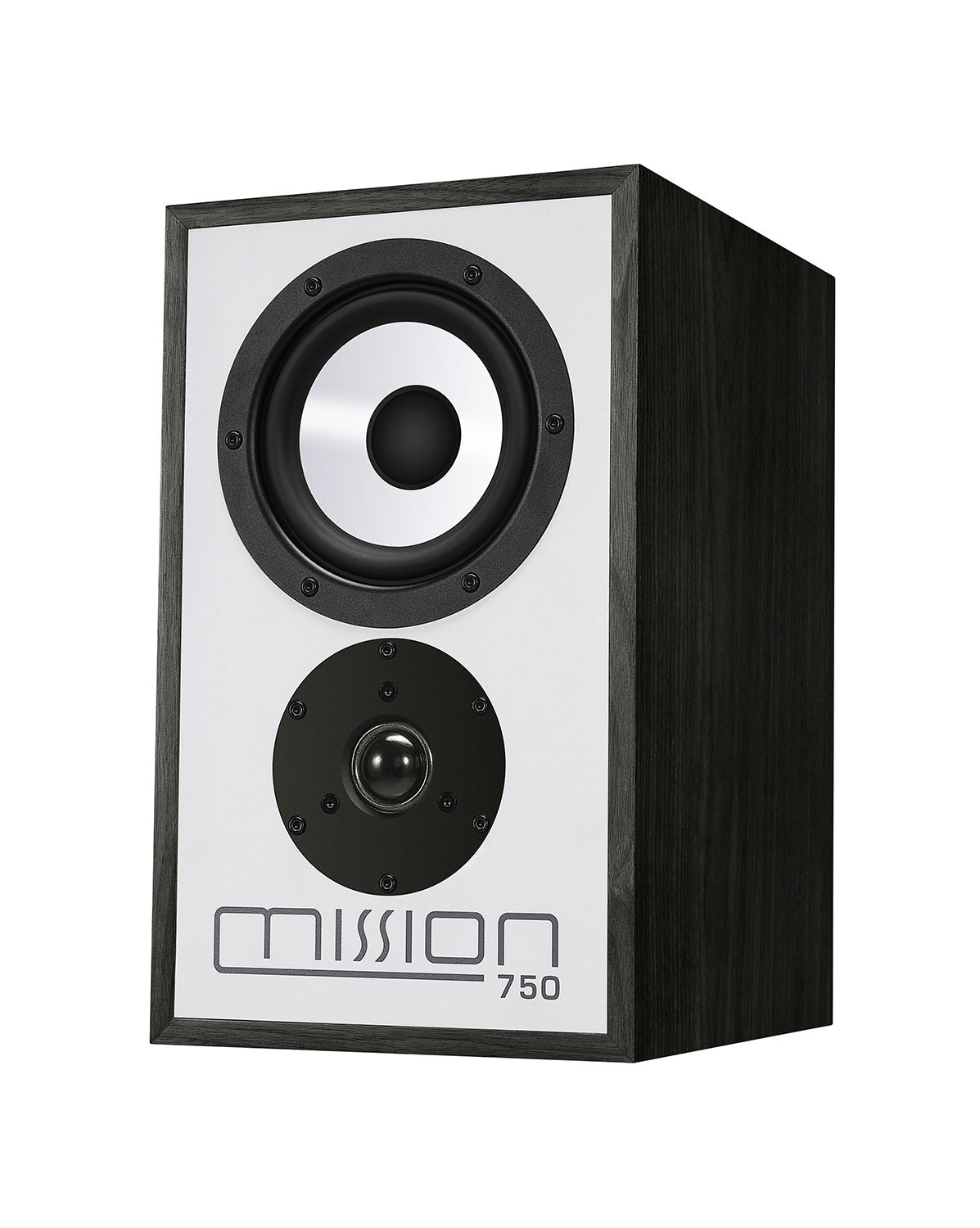

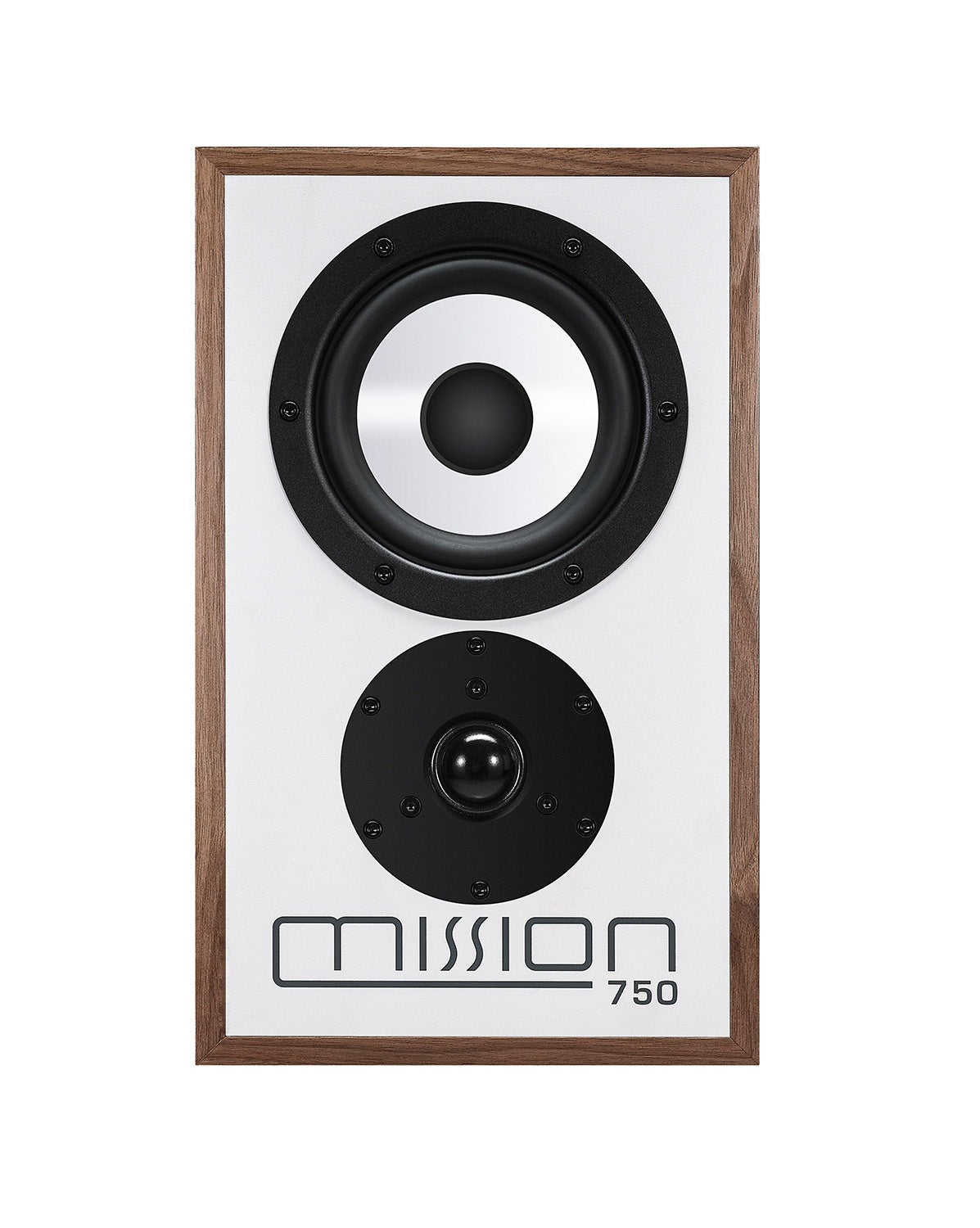

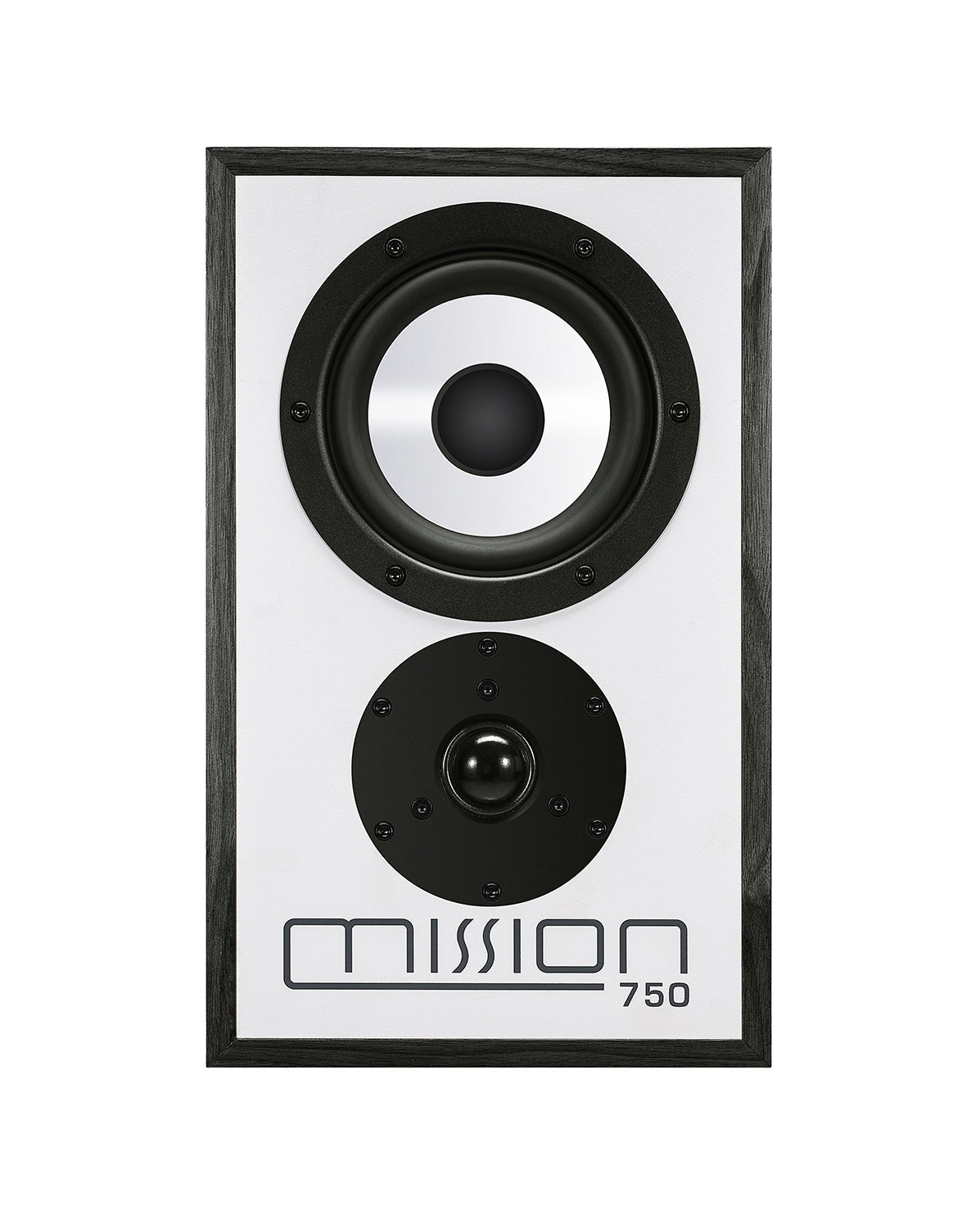

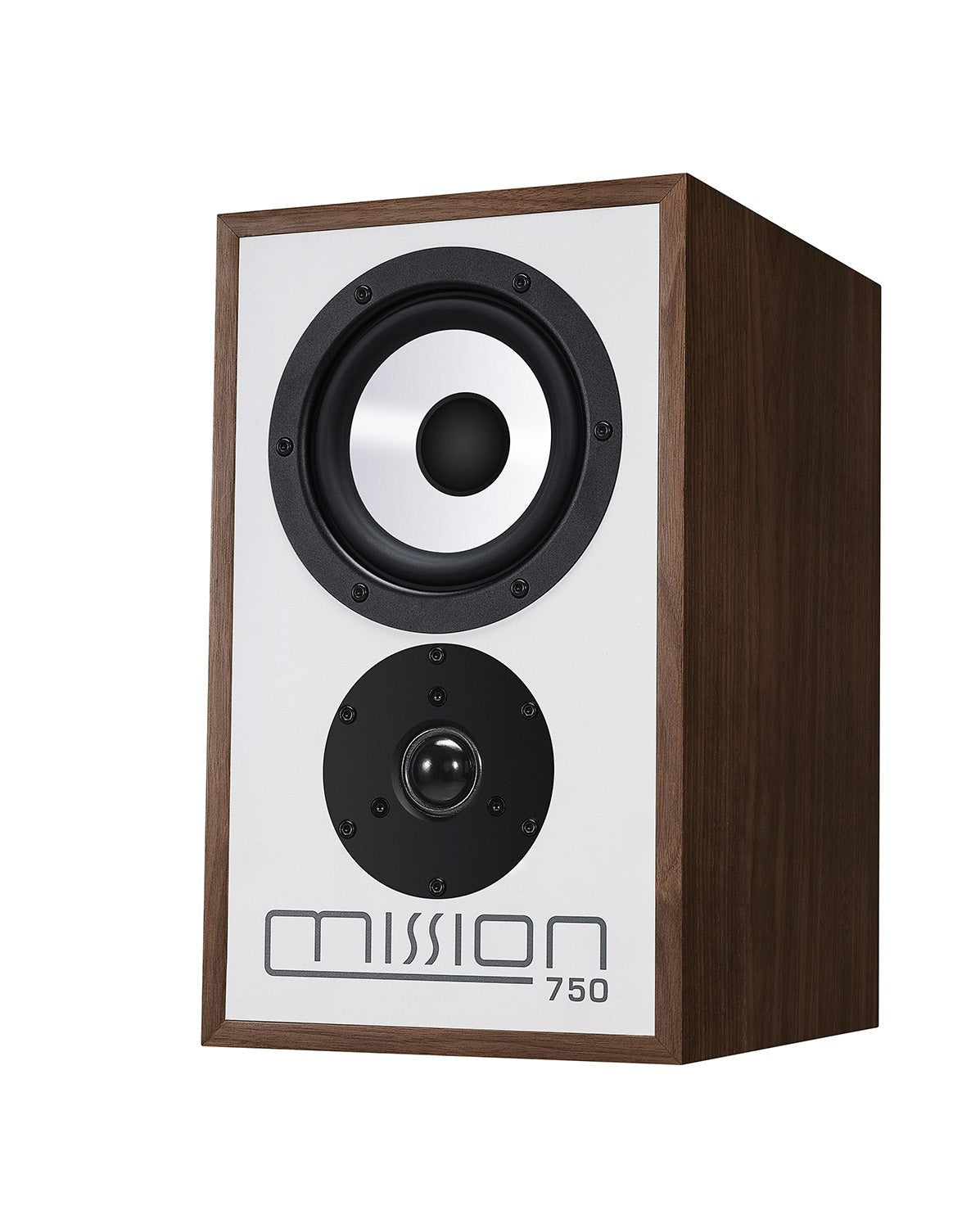

Mission 750 is a two-way bookshelf loudspeaker in the 700 Series, positioned after the Mission 770 and Mission 700 in the brand's modern-classic line. Its saved specifications list a bass-reflex enclosure, a 5.25-inch mineral-loaded polypropylene bass driver, and a 1.25-inch soft-dome tweeter. The row also records 48 Hz to 20 kHz frequency response, 42 Hz bass extension, a 2.4 kHz crossover, and walnut or black oak veneer finish options with a white baffle.
Specifications
| Model | Mission 750 Nominal impedance 6 Ohms (Compatible 8 Ohms) |
|---|---|
| General description | Two-way standmount Minimum impedance 4.5G |
| Design philosophy and core technology | Frequency response(+/- 3dB) 48Hz ~ 20kHz |
| Enclosure type | Bass reflex Bass extension(-6dB) 42Hz |
| Transducer complement | 2-way Crossover frequency 2.4kHz |
| ABR | Calbind Volume (in litres) 12.2L |
| Bass driver | 5.25 inch (133mm) mineral loaded polypropylene cone Dimensions (mm) |
| Midrange driver | Height (on plinth) 355mm |
| Treble driver | 1.25 inch (28mm) Soft Dome Width 216mm |
| Full-range driver | Depth (with terminals) (270 + 35) mm |
| AV shield | No Carton size 565 + 395 + 485 mm |
| Sensitivity (2.83V @ 1m) | 66dB Net weight 9.0kg / pcs |
| Recommended amplifier power | 29V - 100W Gross weight 19.5kg / ctn |
| Peak power handling | Finish Walnut or Black Oak real wood veneer with white bafe finish |
| Peak SPL | 103dB Standard accessories rubber feet |
| Product type | bookshelf loudspeaker |
| Series | 700 Series |
