Mission 770
The Mission 770 is a standmount loudspeaker in Mission's 700 Series, with an 8-inch polypropylene bass driver, 1.25-inch soft-dome tweeter, and UK-based manufacturing.
fig. 01 · speakers
Mission 770
553071
out of stock
From Mission

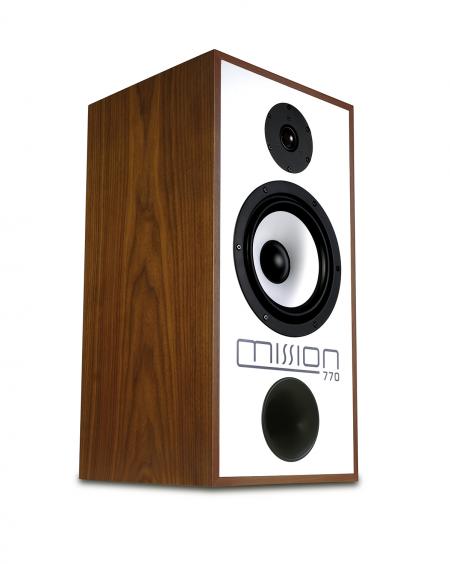

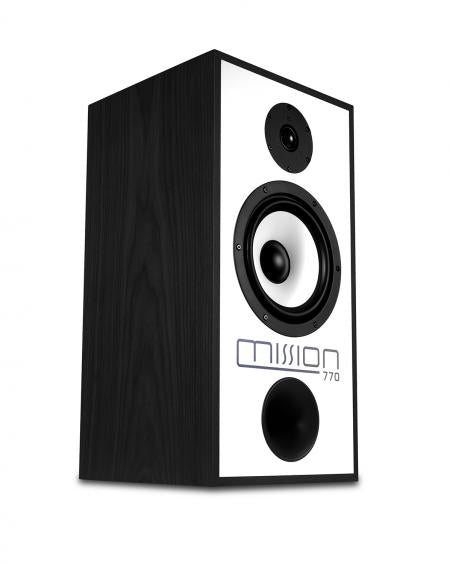

The Mission 770 is a two-way standmount loudspeaker tied to Mission's return to UK-based manufacturing in Huntingdon, Cambridgeshire. It has a vented bass-reflex cabinet, an 8-inch mineral-loaded polypropylene bass driver, and a 1.25-inch soft-dome tweeter. Frequency response runs 42 Hz to 20 kHz with 30 Hz bass extension, sensitivity is 88 dB, and it's recommended for 25 to 200 W amplifiers.
Specifications
| General Description | 2-way vented-box / standmount Frequency Response (+/-3dB) 42Hz ~ 20kHz |
|---|---|
| Enclosure Type | Bass reflex Bass Extension (-6dB) 30Hz |
| Transducer Complement | 2-way Crossover Frequency 2.9kHz |
| Bass Driver | 8" (200mm) mineral loaded polypropylene cone Cabinet Volume (in litres) 38.5L |
| Treble Driver | 1.25" (28mm) soft dome Dimensions (mm) |
| AV Shield | No Height (on plinth) 590mm |
| Sensitivity (2.83V @1m) | 88dB Width 300mm |
| Recommended amplifier power | 25-200W Depth (with terminals) (300+22)mm |
| Peak SPL | 117dB Carton Size 440 x 430 x 725mm |
| Nominal Impedance | 8 Net Weight 19.2kg/pcs |
| Minimum Impedance | 6 |
| Product type | standmount loudspeaker |
| Series | 700 Series |
