Quinta

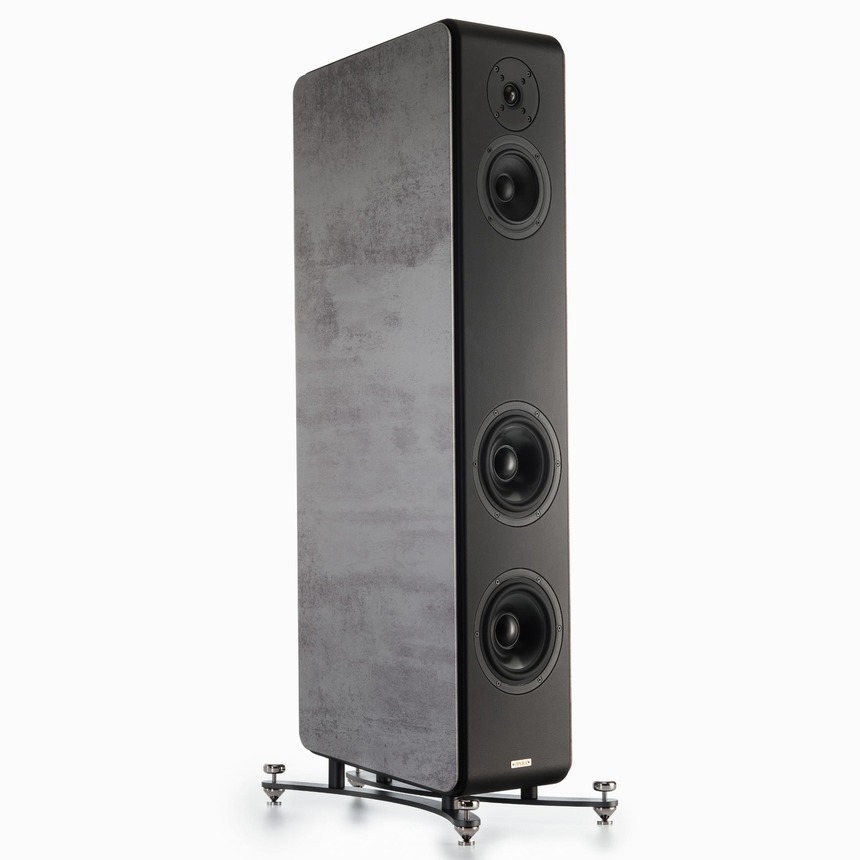

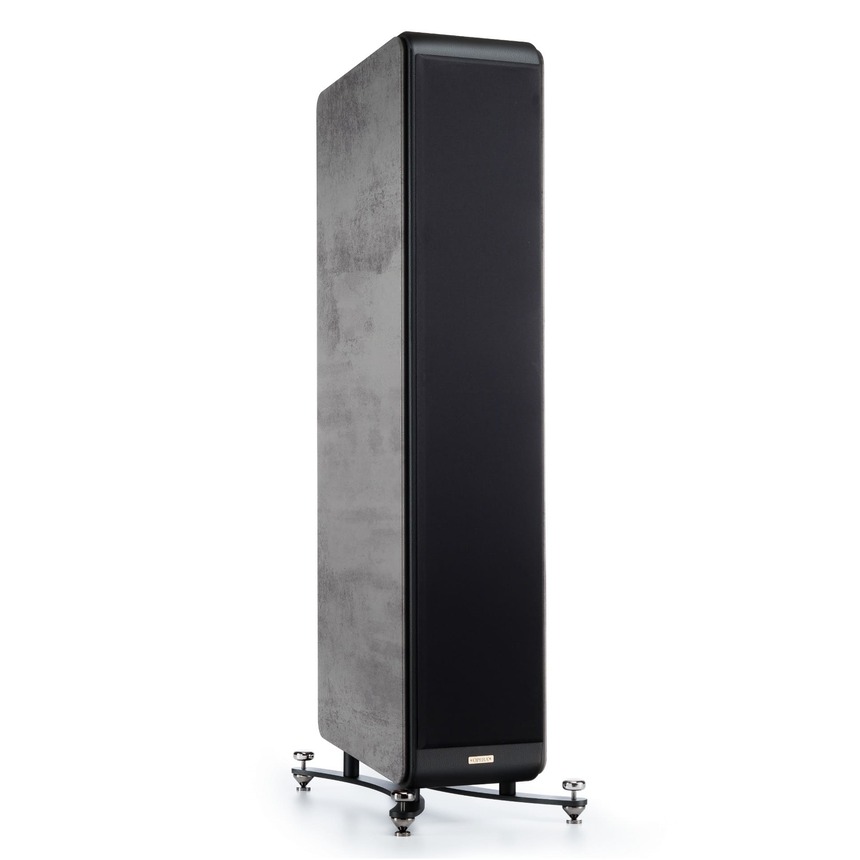

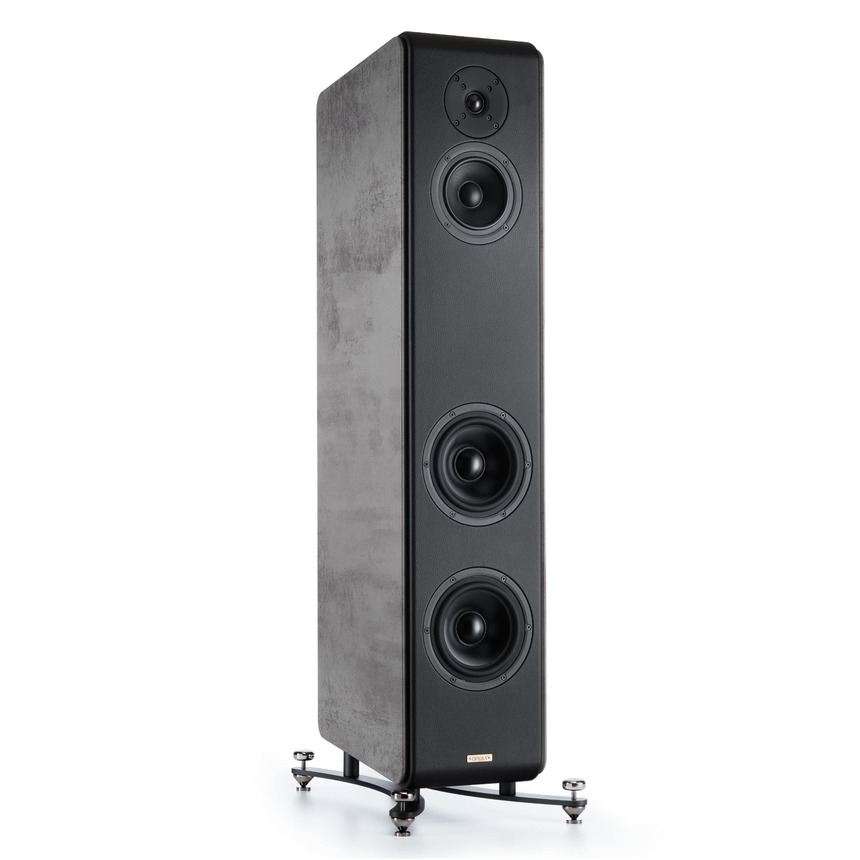

Quinta is the three-way Classica floorstander, built around dual 180 mm woofers, a 150 mm midrange, a soft-dome tweeter, and two rear bass-reflex ports.
fig. 01 · speakers
Quinta
8 photographs · 5 shown
From Opera Loudspeakers

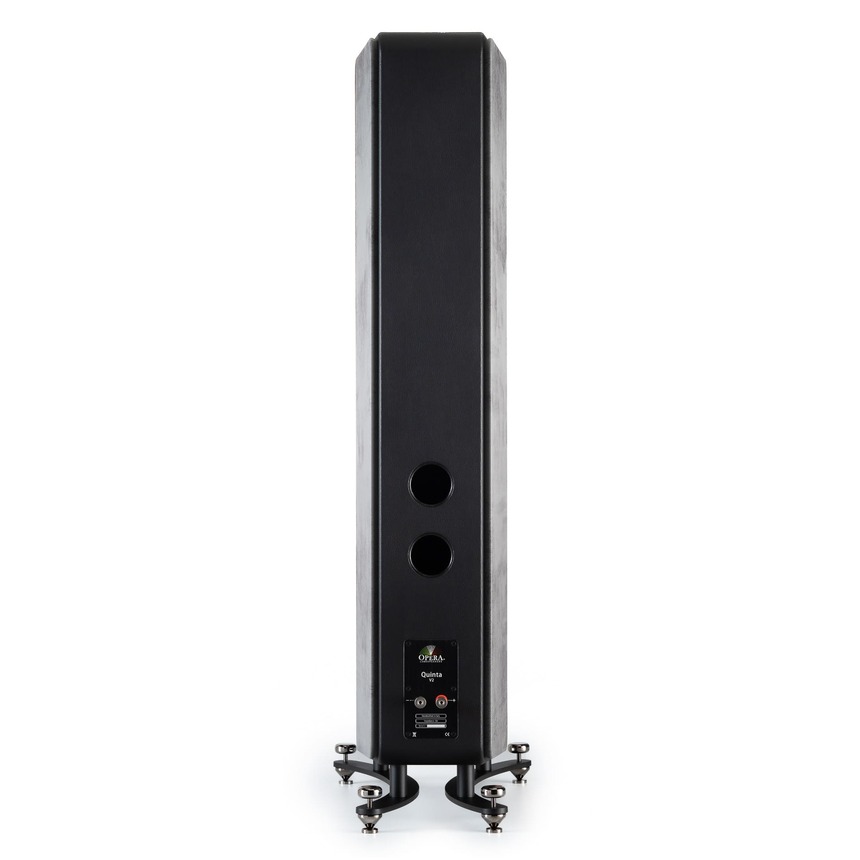

Quinta uses a shaped cabinet with nonparallel internal geometry, dual rear ports, and a dedicated midrange section to keep the vocal band clean as output rises. Its three-way driver set and 250 Hz / 2300 Hz crossover give it deeper extension, stronger scale, and a balanced presentation for larger listening rooms.
Specifications
| Type | Three-way Rear Bass-Reflex Floorstanding Speaker |
|---|---|
| Finish | Cement grey / Rosewood |
| Drivers | Tweeter 26 mm Soft Dome Tweeter Double Ferrite Magnet, Alu Frontplate Mid 150 mm Coated Fiberglass Cone Ferrite Magnet Woofer 2 x 180 mm Black anodized Alu Cone, Ferrite Magnet |
| Sensitivity (2.83V/1m) | 91 dB |
| Frequency response (-3 dB) | 42 - 28000 Hz |
| Nominal impedance | 6 Ω |
| Minimum impedance | 4.3 Ω |
| Maximum power | 200 W (without clipping) |
| Recommended amplifier power | 25 - 150 W |
| Crossover frequency | 250 Hz / 2300 Hz |
| Dimension | Cabinet only: 237 x 1100 x 440mm (l x h x d) Complete loudspeaker (with base): 319 x 1158 x 529 mm (l x h x d) |
| Net Weight | 39 kg each |
