Ortofon · Styli
Stylus VNL I
VNL I replacement stylus with 6 mV output and 4 g recommended tracking force.

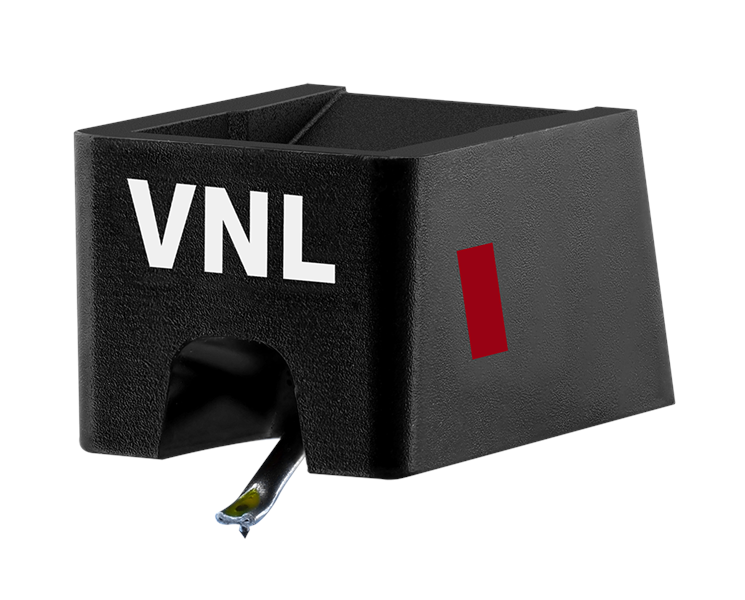

fig. 01 · styli
Stylus VNL I
current
From Ortofon
The Stylus VNL I is an Ortofon replacement stylus in the VNL family. It has a 6 mV output voltage, 20 dB channel separation at 1 kHz, a 20 Hz to 20 kHz frequency response, 100 um tracking ability, and 16 um/mN lateral compliance. Tracking force runs from 3 g to 5 g, with 4 g recommended.
Specifications
| Product type | Replacement stylus |
|---|---|
| SKU | 0050001 |
| VNL stylus variant | I |
| Output voltage | 6 mV at 1000 Hz, 5 cm/sec |
| Channel separation | 20 dB at 1 kHz |
| Frequency response | 20 Hz - 20 kHz -2/+4 dB |
| Tracking ability | 100 um at 315 Hz at recommended tracking force |
| Dynamic lateral compliance | 16 um/mN |
| Tracking force range | 3 - 5 g |
| Recommended tracking force | 4 g |
| MSRP | $51.99 USD |
