Adrenalin

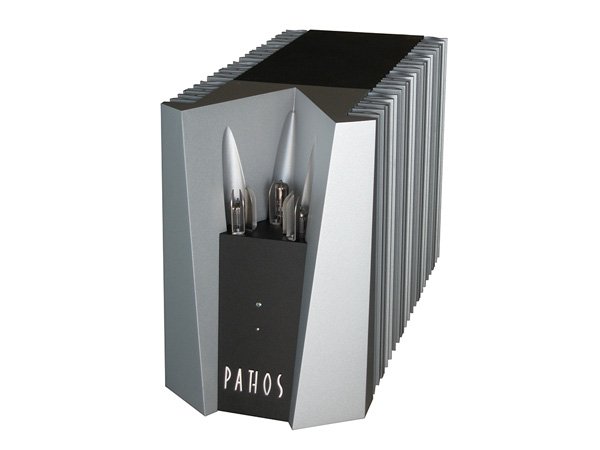

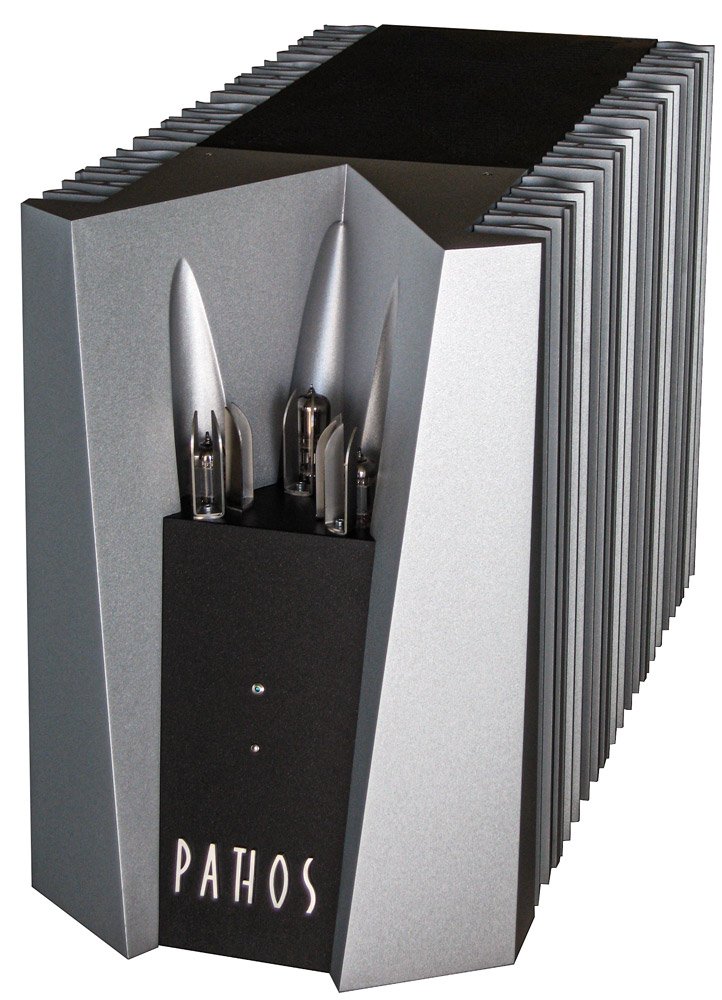

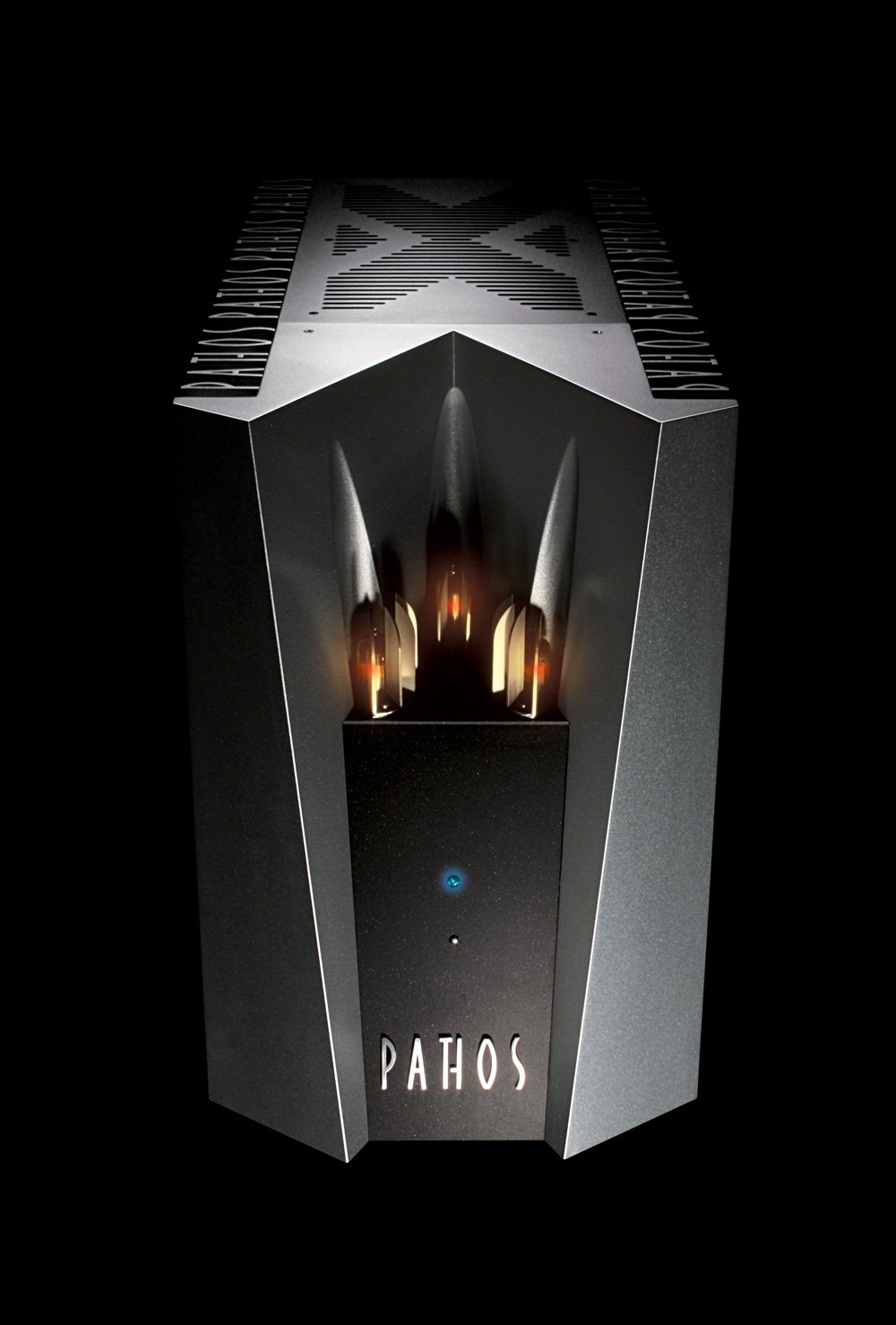

The Pathos Adrenalin is a double InPoL power amp with a balanced XLR input, one 6H30 tube, and 200W of output.
fig. 01 · power amplifiers
Adrenalin
From Pathos
The Adrenalin is Pathos' InPoL power amp for balanced systems, built with no feedback and a single balanced XLR input. It puts out 200W at 8 ohms, runs from 5Hz to 60kHz, uses one 6H30 tube, has a damping factor of 25, and weighs 80kg.
Specifications
| Product type | entirely balanced, Double INPOL® power amplifier in pure class A |
|---|---|
| Feedback | absent |
| Inputs | 1 balanced XLR |
| Input impedance | 100 Ohm |
| Output power | 200 W @ 8 Ohm |
| Frequency response | 5Hz - 60kHz ± 0.3 dB |
| S/N ratio | 98 dB |
| THD | 0,01% @ 1W |
| Power consumption at rest | 475 W |
| Tubes | 1 x 6H30 |
| Damping factor | 25 |
| Rise time | 6µs |
| Fall time | 6µs |
| Slew rate | 11V/µs |
| Dimensions | 68cm (D) x 30cm (W) x 44cm (H) |
| Weight | 80Kg |
| Series | InPoL |
