AmpliD

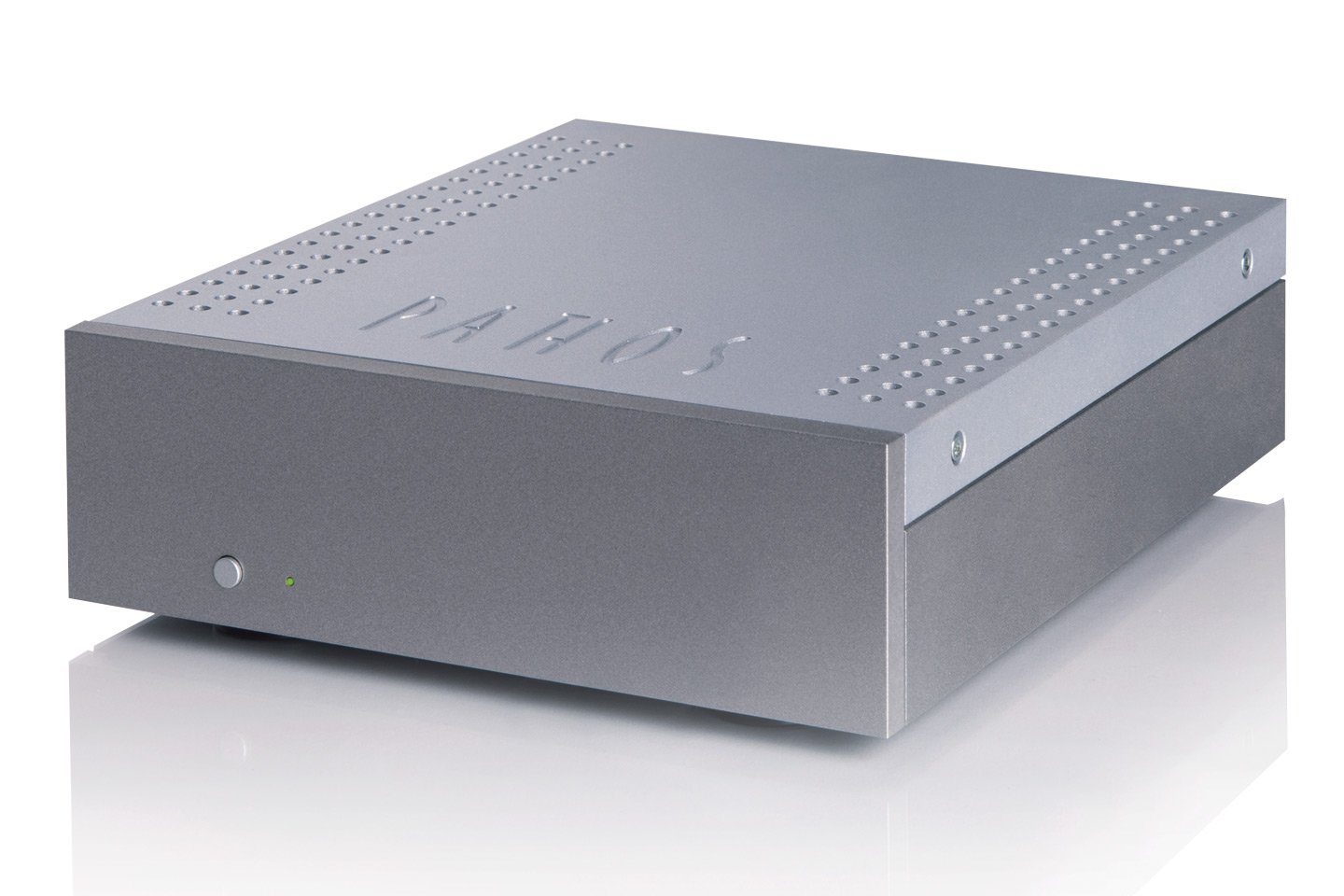

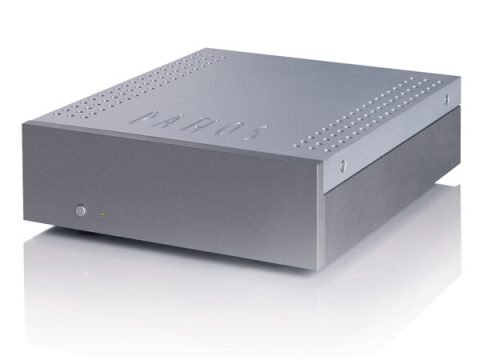

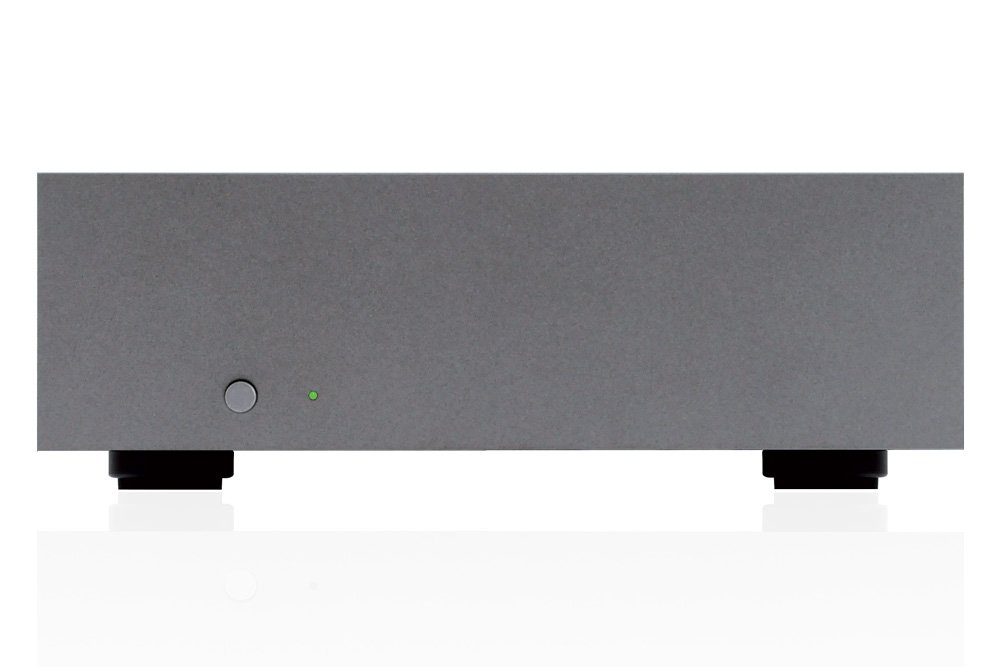

The Pathos AmpliD is a compact Class D power amp with balanced and RCA inputs and 70W per channel at 8 ohms.
fig. 01 · power amplifiers
AmpliD
From Pathos
The AmpliD is Pathos' stereo Class D power amp in a small 5kg chassis. It delivers 70W at 8 ohms and 130W at 4 ohms, runs from 1Hz to 100kHz, has balanced XLR plus RCA line inputs, and an output impedance of 0.16 ohms.
Specifications
| Product type | Stereo power amplifier in pure class D, fully balanced |
|---|---|
| Output power | 70W @ 8 Ohm130W @ 4 Ohm |
| Frequency response | 1 Hz - 100 KHz |
| THD | < 0,04% |
| Damping factor | 50 |
| S/N ratio | 98 dB |
| Input impedance | 47 KOhm |
| Analogue inputs | 1 stereo balanced XLR & 1 stereo unbalanced RCA line |
| Input sensitivity | 0,8 VRMS Unbalanced0,8+0,8 VRMS Balanced |
| Output impedance | 0,16 Ohm |
| Gain | 29 dB Unbalanced23 dB Balanced |
| Power consumption | min 8W Max 300W<0,5W standby mode |
| Dimensions | 230mm (D) x 200mm (W) x 70mm (H) |
| Weight | 5 Kg |
