Pathos · Integrated Amplifiers

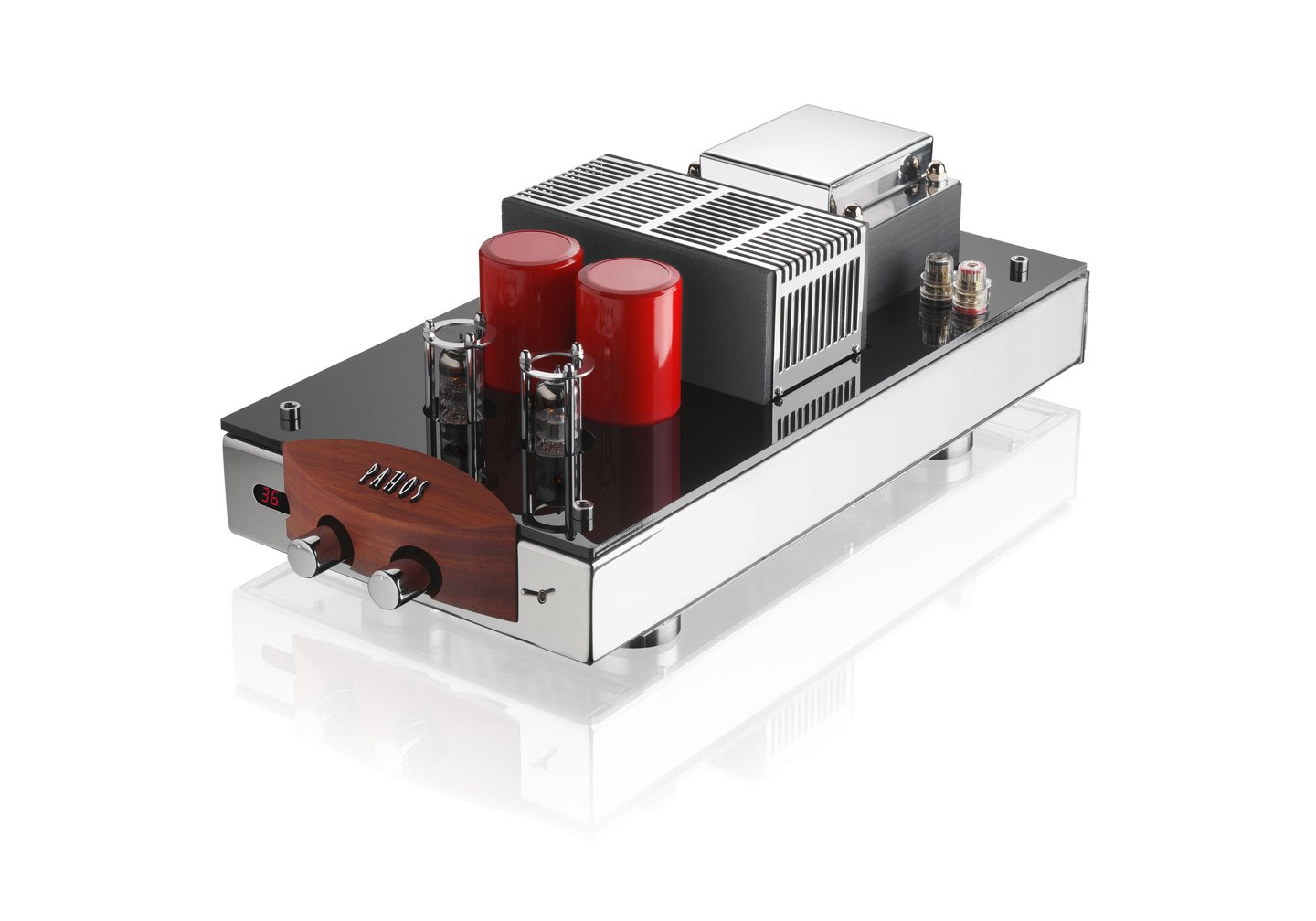

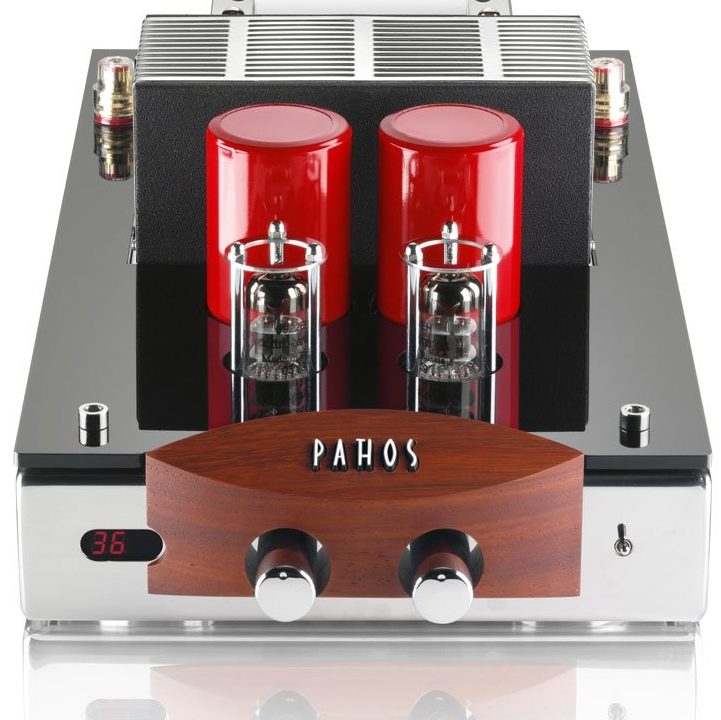

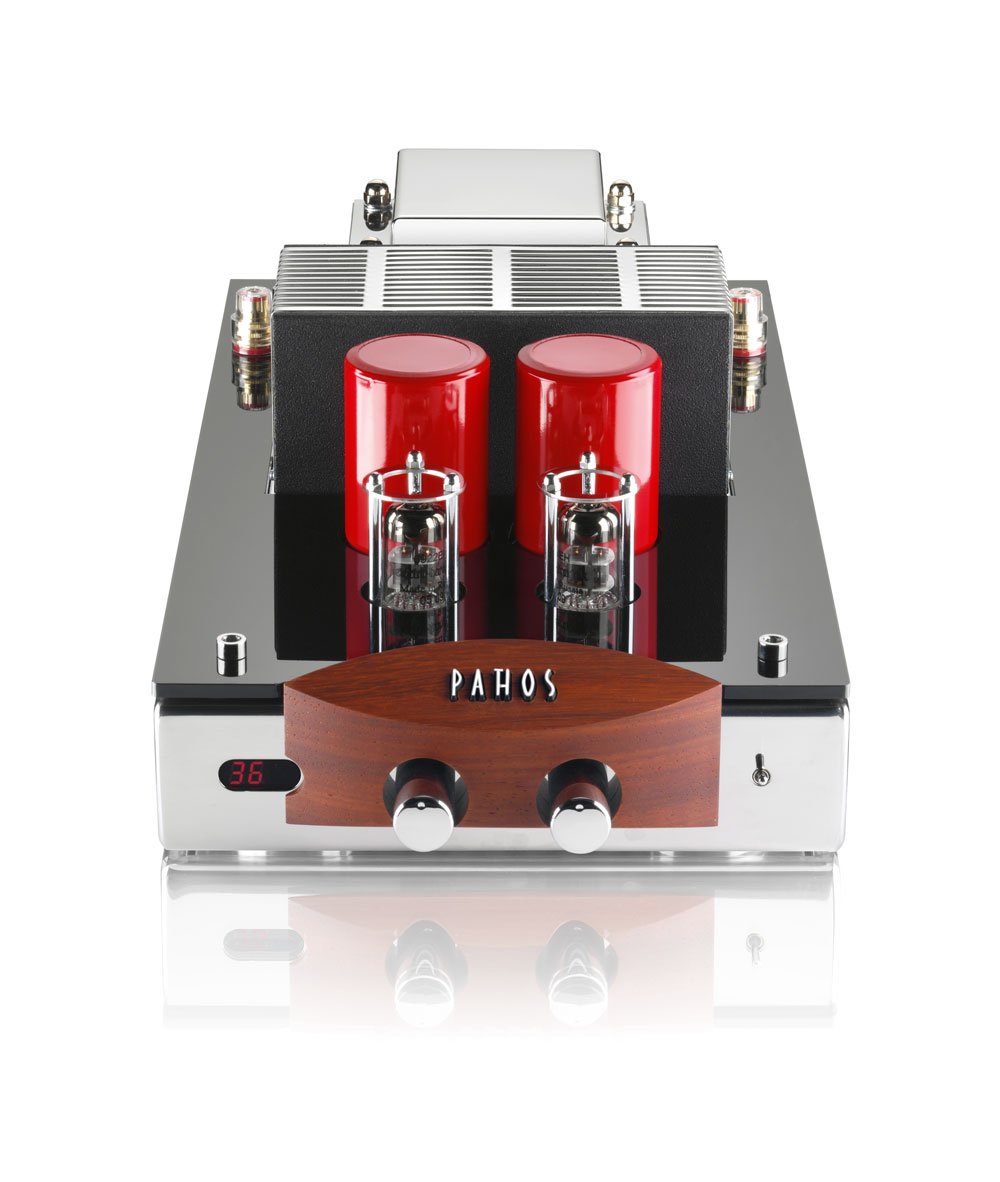

Classic One MKIII
The Pathos Classic One MKIII is a Classic series hybrid amp with a tube preamp section, a bridgeable output stage, and a balanced XLR input.
fig. 01 · integrated amplifiers
Classic One MKIII
From Pathos
The Classic One MKIII combines a tube Class A preamp section with a Class A/AB output stage in one chassis. It delivers 2 x 70W at 8 ohms, 2 x 135W at 4 ohms, and 180W in bridged mono mode, runs from 2Hz to 100kHz, and has one balanced XLR input.
Specifications
| Product type | Integrated amplifier in Class A/AB, hybrid circuit with input tube stage, bridgeable |
|---|---|
| Output power | 2 x 70W @ 8 Ohm, 2 x 135W @ 4 Ohm, 180W in bridged mode (mono) |
| Inputs | 1 balanced XLR |
| Frequency response | 2Hz - 100kHz |
| THD | <0.05% |
| S/N ratio | 90dB |
| Input impedance | 100kOhm |
| Dimensions | 230mm (D) X 500 (W) X 140mm (H) |
| Weight | 13Kg |
| Series | Classic |
