Classic Remix
The Pathos Classic Remix is a Classic series hybrid amp and headphone amp with a balanced input, a pre-out, and optional HiDac Mk2 inputs.
fig. 01 · integrated amplifiers
Classic Remix
From Pathos

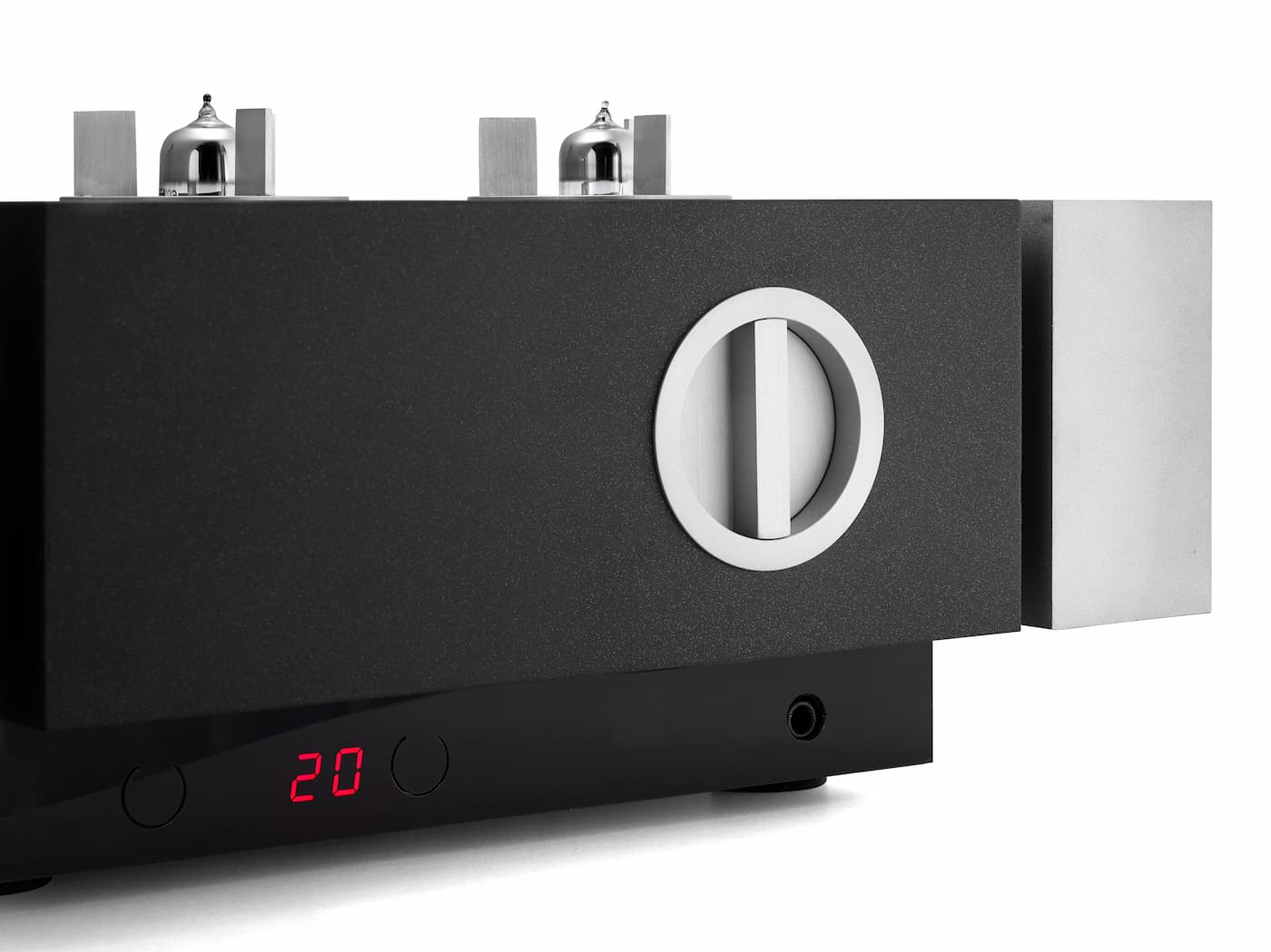

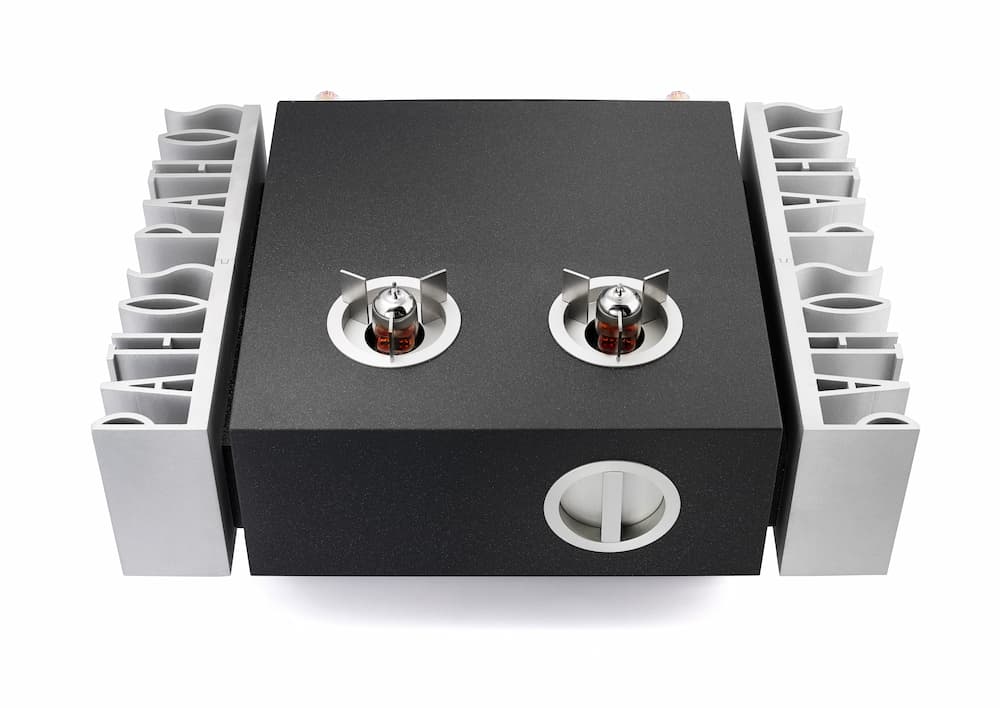

The Classic Remix renews the Classic One idea with a tube pre-stage, a solid-state Class AB output stage, and a headphone output. It delivers 2 x 70W at 8 ohms and 1.6W at 32 ohms, has a balanced XLR input and stereo pre-out, and can add USB, coaxial, and optical inputs through the HiDac Mk2.
Specifications
| Product type | Integrated stereo amplifier, fully balanced, Hybrid technology. |
|---|---|
| Preamplifier stage | Tube (2x6922 ECC88) |
| Final stage | solid stage, bridge mode, class AB |
| Output power | 2x70 W RMS @ 8 Ω (Both channel driven) | 1,6W @ 32 Ω |
| Frequency response | 1,5Hz - 200KHz ± 0,5dB |
| Max input voltage | 4,25VRMS |
| Input sensitivity | 500m VRMS |
| Input impedance | 47K Ω |
| Output polarity | Non- inverting. Balanced pin 2 + |
| Volume regulator | 2 x Burr Brown PGA2310 (180 steps 0,5dB) |
| THD | 0,025% |
| S/N ratio | > 100dB |
| Power requirements | 250W @ 70W PC / 100W @ zero volume / < 0,5W@standby |
| Analogue inputs | 1 balanced XLR |
| Digital inputs | Installation of (optional) HiDac Mk2 board is required to enable these inputs1 USB port type "B" for PC, 1 SPDIF coaxial, 1 SPDIF optical |
| Outputs | 1 Pre out stereo line |
| Output impedance | 10 Ω |
| Max output level | 10 V RMS |
| Amplifier | 37cm (W) x 28cm (D) x 17cm (H) |
| Packed dimensions | 49cm (W) x 43cm (D) x 30cm (H) |
| Weight (net / packed) | 14Kg / 17,5 Kg |
| Series | Classic |
