Pathos · Integrated Amplifiers
InPoL Remix MKII
Compact InPoL amp and headphone platform with balanced inputs, pre-outs, and optional HiDac Mk2 inputs.
fig. 01 · integrated amplifiers

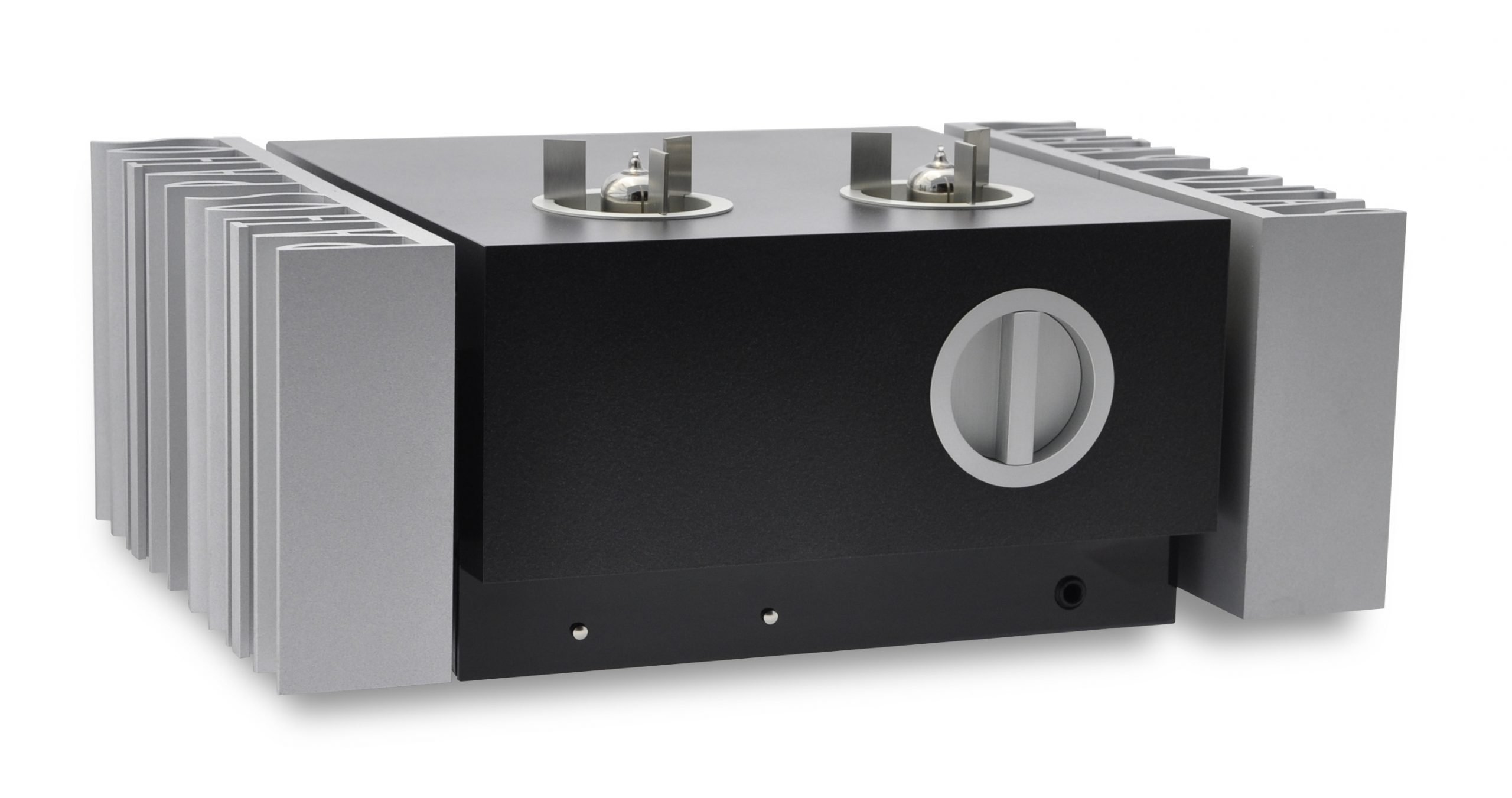

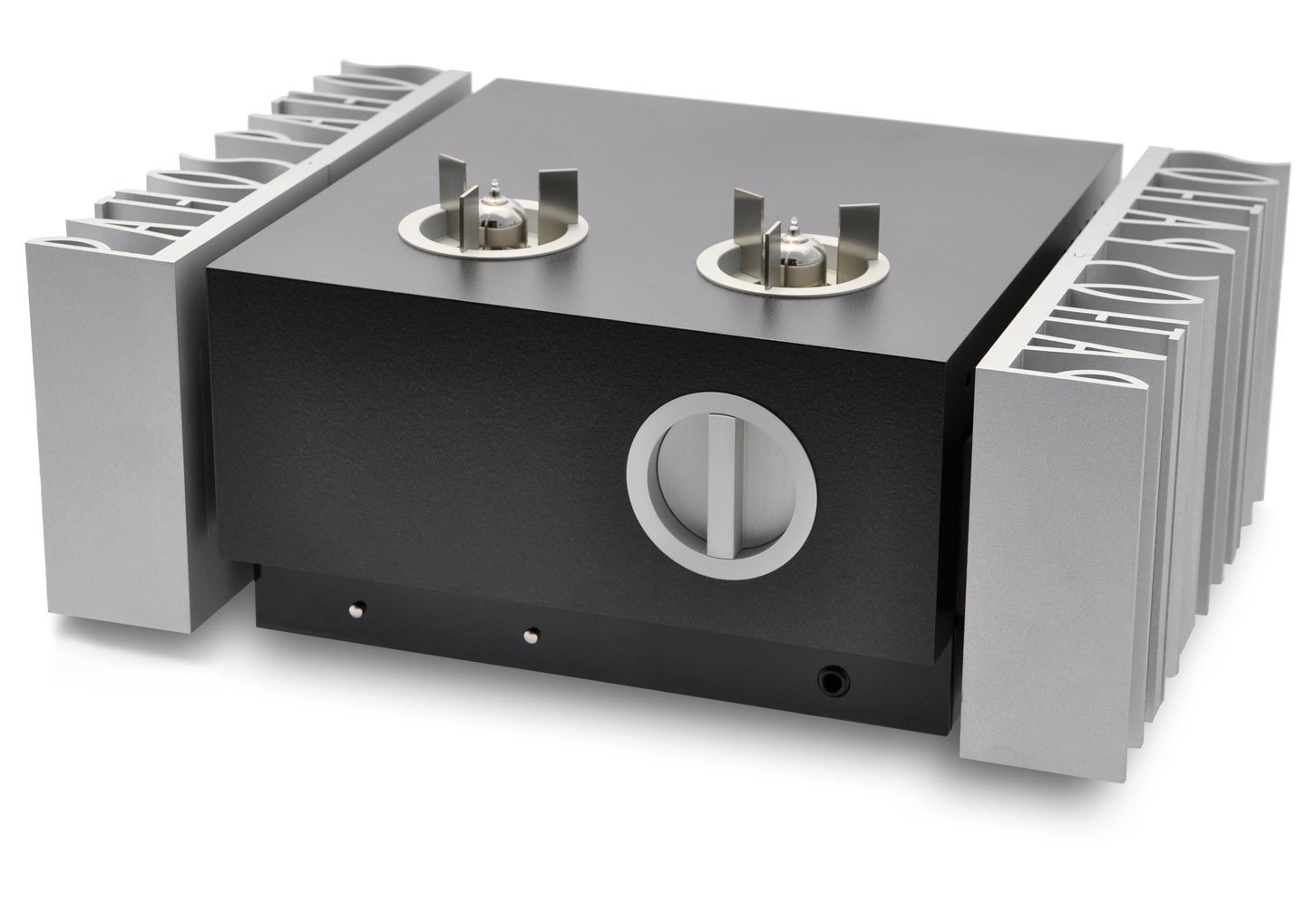

InPoL Remix MKII
From Pathos
InPoL Remix MKII uses double InPoL circuitry in a smaller Pathos chassis for speaker, preamp, and headphone use. The saved specs list pure Class A operation, balanced XLR and RCA inputs, RCA and XLR pre-outs, a 6.3mm headphone jack, and optional USB, coaxial, and optical inputs through HiDac Mk2.
Specifications
| Product type | Stereo integrated amplifier Pure class A- double INPOL technology - fully balanced -digital Bias/gain set technology |
|---|---|
| Output power | 2,65W @ 32 Ω |
| Frequency response | 2Hz - 400KHz ± 0,5db |
| Input sensitivity | 470mVRMS |
| Input impedance | 47KOhm |
| Output polarity | Selectable by remote control |
| Volume regulator | 2 x Burr Brown PGA2310 (180 steps 0,5dB) |
| THD | 0,025% |
| S/N ratio | > 100dBGain 31 db Unbalanced 37 db BalancedOutput impedance 0,9Ω |
| Analogue inputs | 1 Balanced XLR line, 4 unbalanced RCA line |
| Digital inputs | Installation of (optional) HiDac Mk2 board is required to enable these inputs1 USB port type "B" for PC, 1 SPDIF coaxial, 1 SPDIF optical |
| Outputs | 1 Pre out stereo line RCA1 Pre out stereo line Balanced XLRPre-output phase can be selected1 connector for jack headphone 6,3mm |
| Output impedance | 0,45Ω |
| Max output level | 9,6 VRMS |
| Amplifier | 370mm (D) x 280mm (W) x 180mm (H) |
| Weight | 15,5Kg |
| Series | InPoL |
