Pathos · Integrated Amplifiers

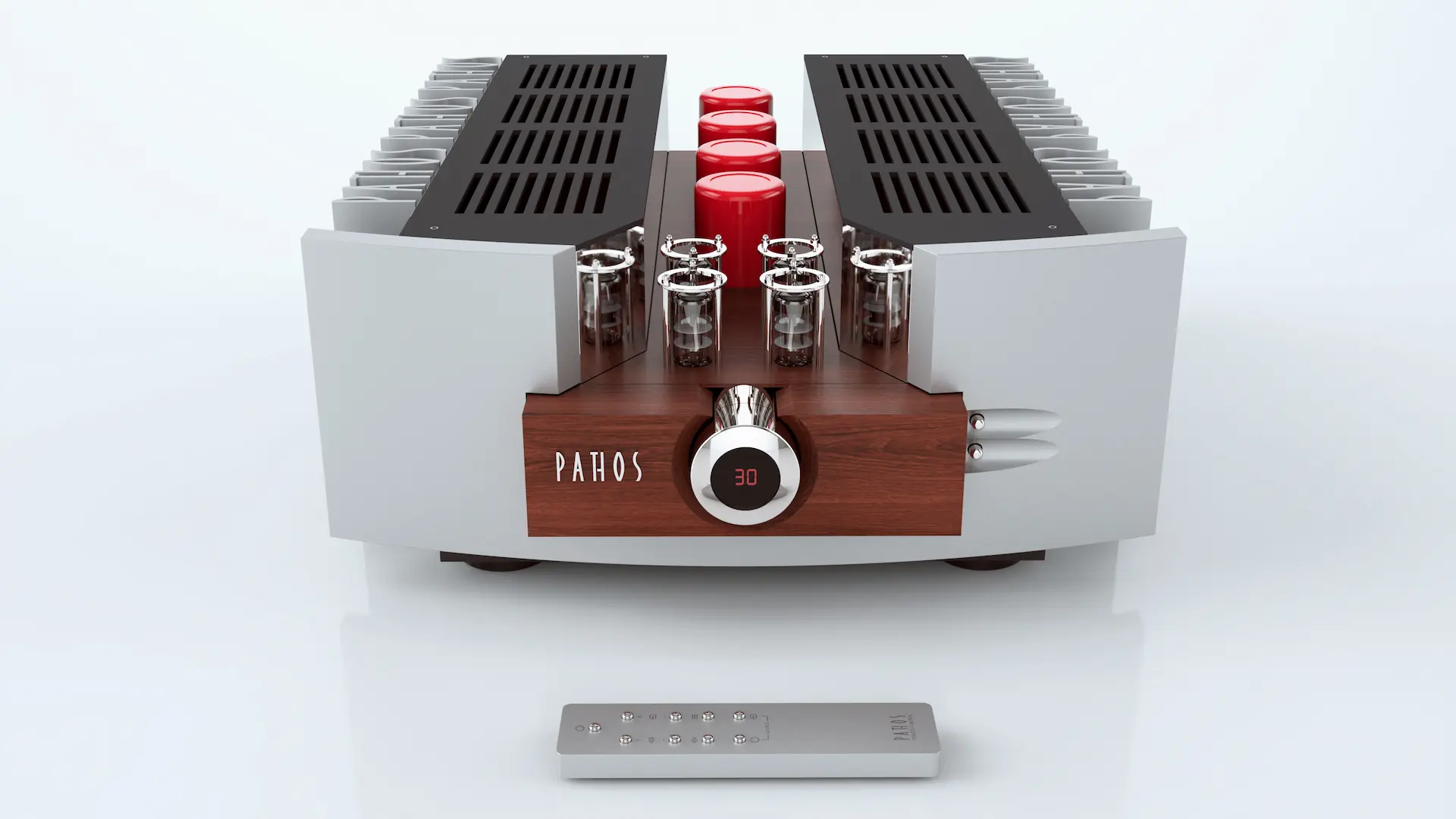

InPoL² MKII
Pure Class A InPoL amp with 45W per channel and optional HiDac Mk2 input expansion.
fig. 01 · integrated amplifiers
InPoL² MKII
From Pathos
InPoL² MKII updates the second-generation InPoL design with more current delivery and a revised power supply. The saved specs list 2 x 45W at 8 ohms, no feedback, balanced and unbalanced input impedance data, and optional USB, coaxial, and optical inputs through HiDac Mk2.
Specifications
| Product type | integrated stereo amplifier based on INPOL technology, operating in pure class A |
|---|---|
| Power output | 2 x 45 W @ 8 Ohm |
| Feedback | absent |
| Input impedance | 20KOhm (balanced) - 42KOhm (unbalanced) |
| Analogue inputs | 4 RCA and |
| Digital inputs | Installation of (optional) HiDac Mk2 board is required to enable these inputs 1 USB port type "B" for PC, 1 SPDIF coaxial, 1 SPDIF optical |
| Output | 1 pre-out stereo balanced XLR |
| Dimensions | 430mm (D) X 530mm (W) X 195mm (H) |
| Weight | 38Kg |
| Series | InPoL |
