Pathos · Power Amplifiers
InPower MKII

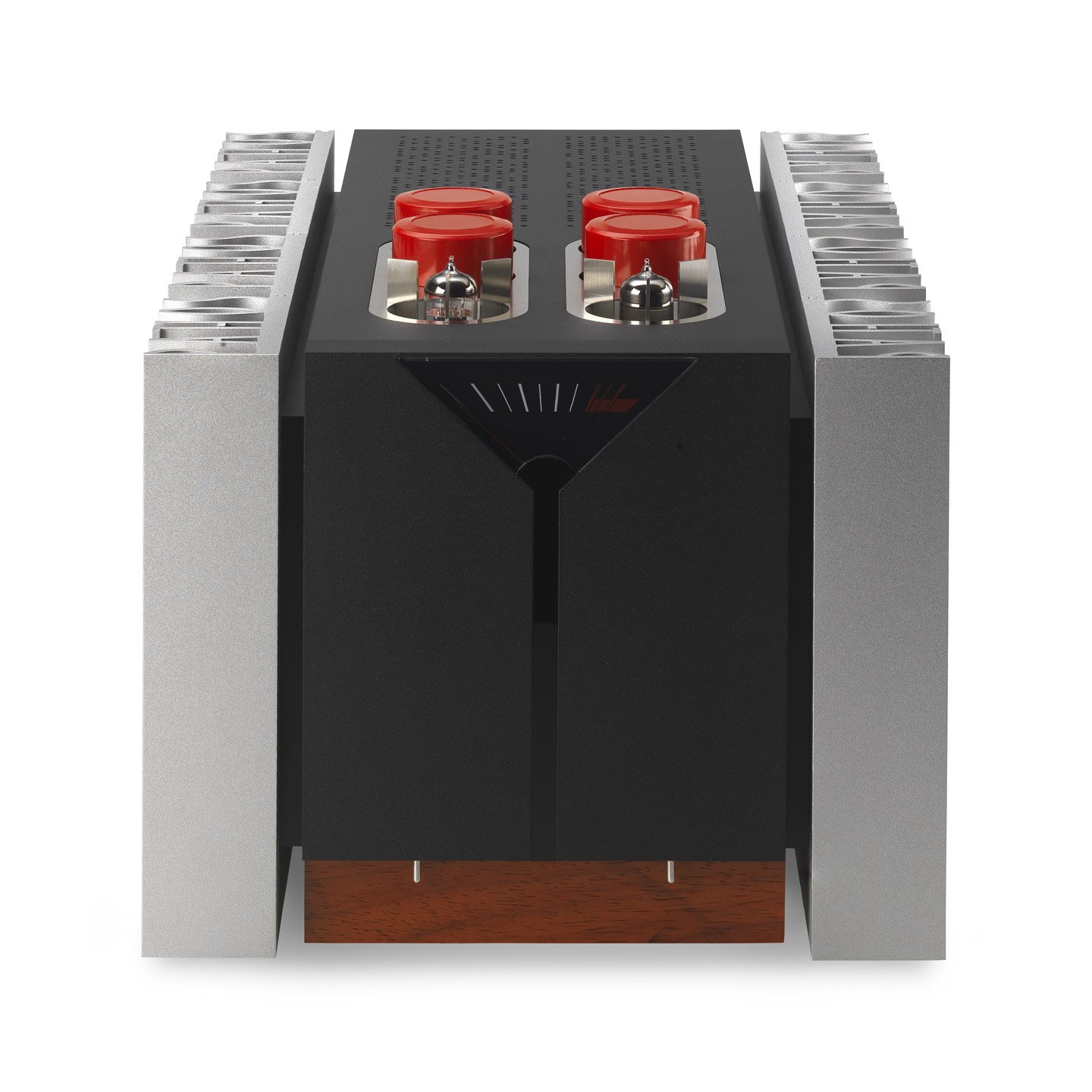

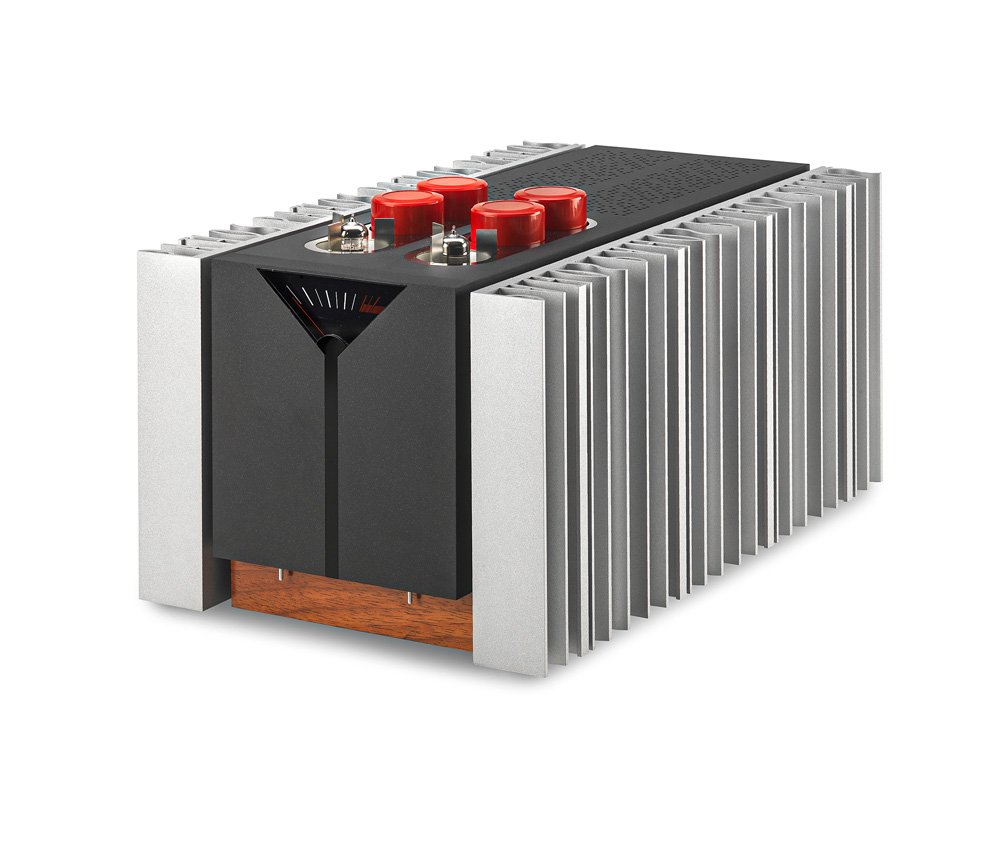

The Pathos InPower MKII is a double InPoL power amp with adjustable gain, no feedback, and 120W output at 8 ohms.
fig. 01 · power amplifiers
InPower MKII
From Pathos
The InPower MKII uses Pathos' InPoL circuit in a stereo power amp made for balanced or unbalanced systems. It runs with no feedback, offers adjustable gain ranges for both input types, delivers 120W at 8 ohms, and responds from 5Hz to 60kHz.
Specifications
| Product type | entirely balanced, Double INPOL® power amplifier in pure class A |
|---|---|
| Feedback | absent |
| Output power | 120 W @ 8 Ohm |
| Input impedance | 20 kOhm |
| Gain | 20dB - 31dB Unbalanced; 26dB - 37dB Balanced |
| Frequency response | 5Hz - 60kHz ± 0.3 dB |
| S/N ratio | >100dB |
| THD | < 0.4% up to maximum power |
| Power consumption at rest | 350 W |
| Dimensions | 31,5x55,5x30cm |
| Weight | 55kg |
| Series | InPoL |
