Pathos · Integrated Amplifiers
Kratos

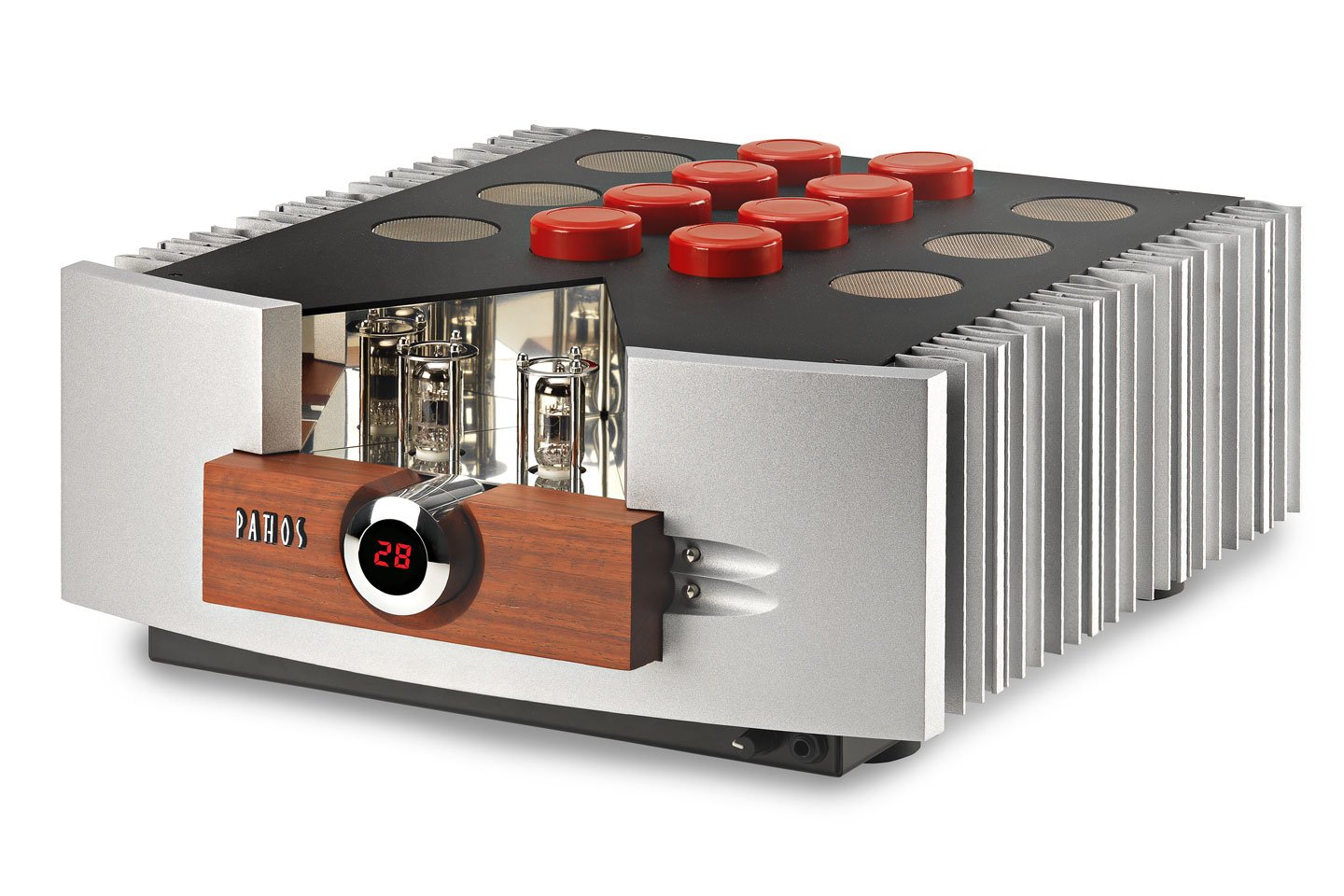

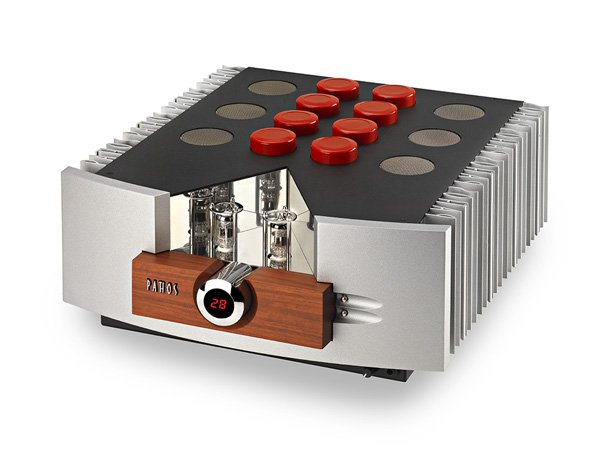

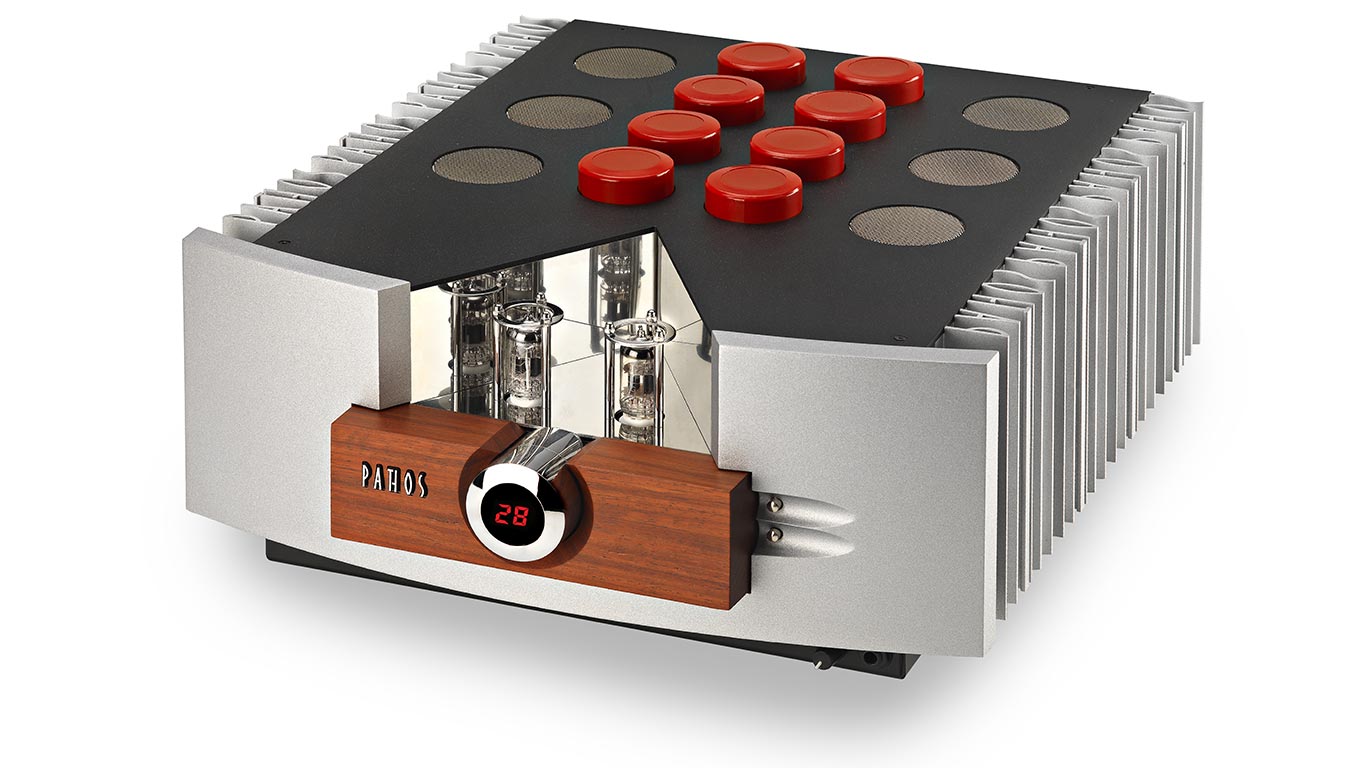

The Pathos Kratos is a hybrid stereo amp with a tube pre-stage, a MOSFET output stage, and high-power speaker and headphone outputs.
fig. 01 · integrated amplifiers
Kratos
From Pathos
The Kratos pairs a tube Class A pre-stage with a MOSFET Class AB output stage in a fully balanced Pathos amp. It delivers 2 x 200W at 8 ohms and 2 x 350W at 4 ohms, has balanced XLR and RCA line inputs with pre-outs in RCA and XLR, and can add inputs through the HiDac Mk2.
Specifications
| Product type | Hybrid stereo amplifier, fully balanced. Preamplifier stage: tubes, class A, 2 x TungSol ECC803SFinal stage: Mosfet, bridge configuration, class AB |
|---|---|
| Output power | 2 x 200WRMS @ 8 Ω, 2 x 350WRMS @ 4 Ω | 3,3 W @ 16 Ω , 2 W @ 32 Ω |
| Max input voltage | 5V RMS |
| Input sensitivity | 350mV |
| Input impedance | 20K balanced and unbalanced |
| Pre out gain | 15dB |
| Gain | 42dB balanced and unbalanced |
| Analogue inputs | 2 balanced XLR line, 5 unbalanced RCA line, 1 balanced XLR direct to the power amp |
| Optional inputs | (available only with HiDac Mk2 module installed)2x USB "B" type; px SPDIF RCA; 1x SPDIF optic |
| Outputs | 1 Pre out stereo unbalanced RCA, 1 Pre out stereo Balanced XLR |
| Max output level | 10V RMS |
| Amplifier | 425mm (D) x 525mm (W) x 210mm (H) |
| Weight | 35Kg |
