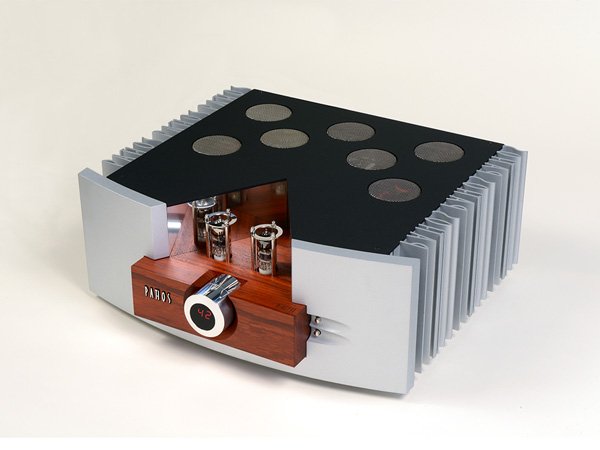

Lògos MKII
The Pathos Lògos MKII is a hybrid stereo amp with a tube pre-stage, a MOSFET output stage, balanced inputs, and a sub output.
fig. 01 · integrated amplifiers
Lògos MKII
From Pathos

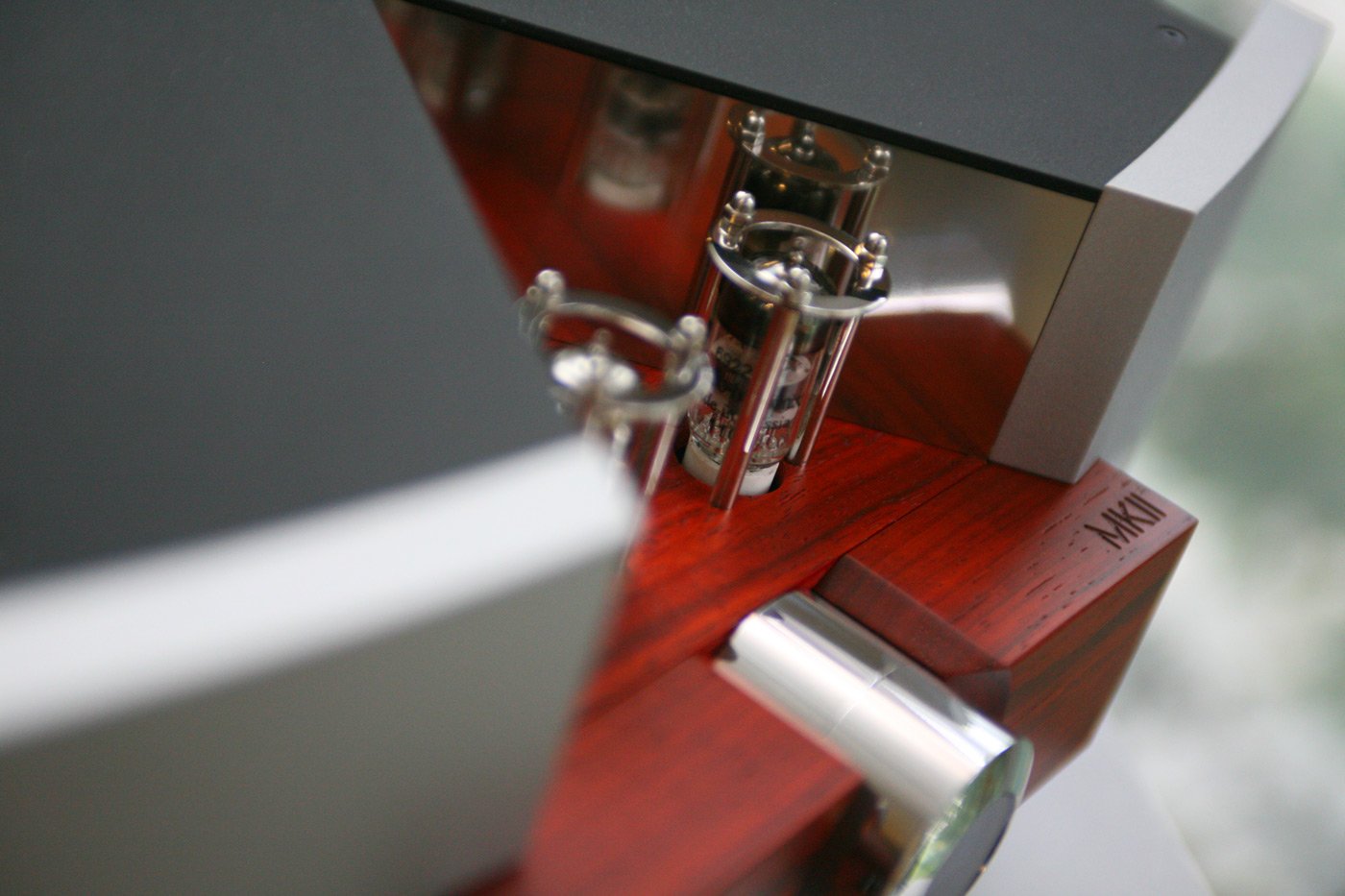

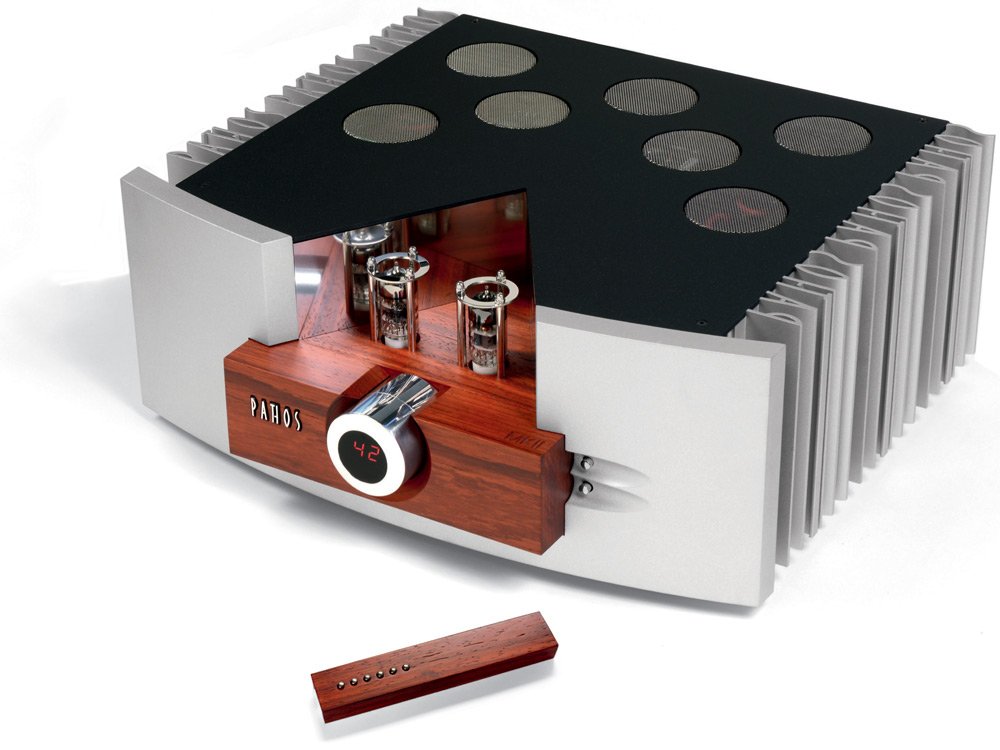

The Lògos MKII keeps the Pathos tube pre-stage and MOSFET Class AB output layout in a stereo chassis. It delivers 2 x 110W at 8 ohms, runs from 5Hz to 140kHz, has 2 balanced XLR plus 5 RCA line inputs, a stereo pre-out, and a mono sub output.
Specifications
| Product type | Integrated stereo amplifier, Hybrid technology. Preamplifier stage Tube (2x6922 ECC88), class A Final stage; Mosfet, class AB |
|---|---|
| Output power | 2x110 W RMS@8Ohm (Both channel driven) |
| Frequency response | 5Hz - 140KHz ± 0,5dB |
| Max input voltage | 6V RMS |
| Input sensitivity | 500mV RMS (39dB Gain) |
| Input impedance | 32KOhm unbalanced, 20KOhm balanced |
| Output polarity | Non- inverting. Balanced pin 2 + |
| Volume regulator | Burr Brown PGA2310 (100 steps) |
| Damping Factor | 360@8Ohm |
| THD | 0,02% @ 1W; 0,2% @ 110W |
| S/N ratio | >90dB |
| Power requirements | 200W @ 100WPC / 130W @ zero volume < 0,5W@standby |
| Analogue inputs | 2 balanced XLR line, 5 unbalanced RCA line |
| Digital inputs | Installation of (optional) HiDac Mk2 board is required to enable these inputs1 USB port type "B" for PC, 2 SPDIF coaxial |
| Driver | Disponibili per Windows; sistemi Mac e Linux non necessitano di Driver |
| Outputs | 1 Pre out stereo line, 1 sub out mono line |
| Amplifier | 420mm (D) x 430mm (W) x 170mm (H) |
| Packed dimensions | 600mm (D) x 600mm (W) x 350mm (H) |
| Weight (net / packed) | 28Kg / 30Kg |
