Pathos · Integrated Amplifiers
T.T.

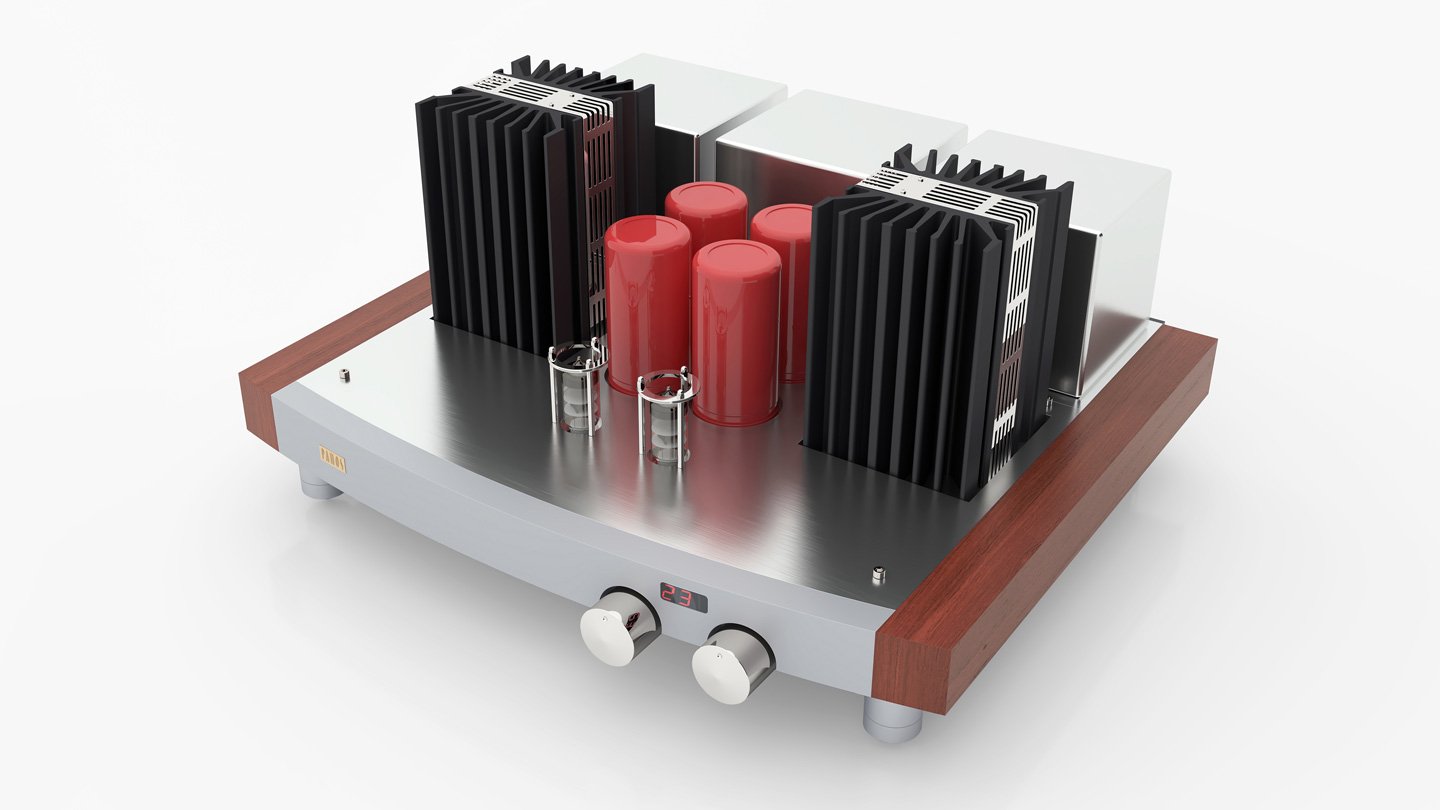

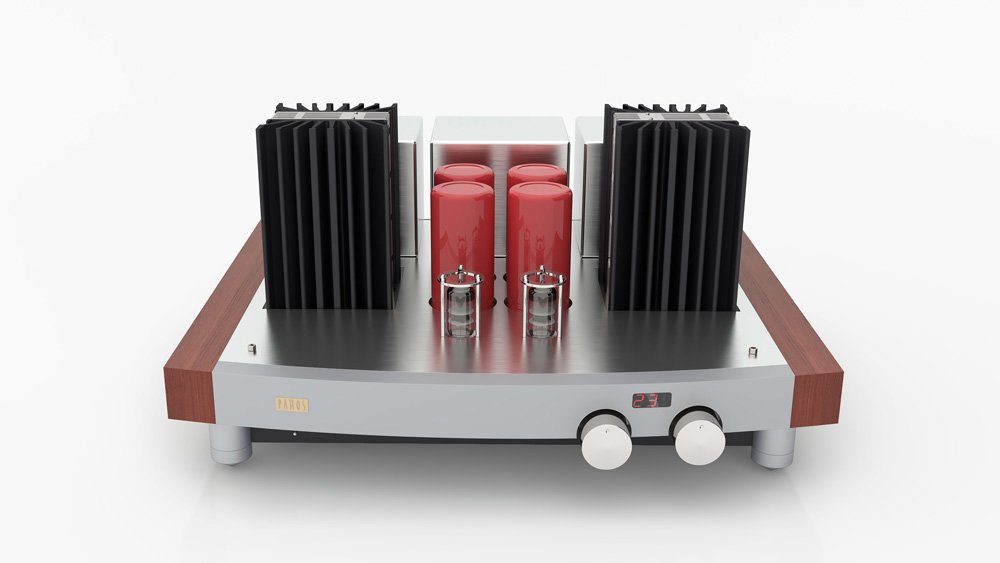

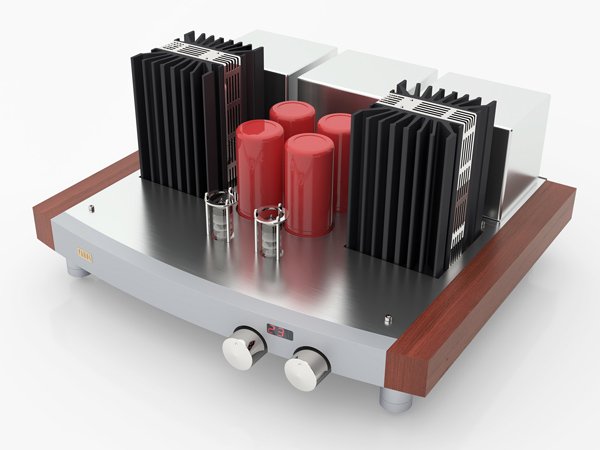

The Pathos T.T. is the original Pathos InPoL amp with pure Class A circuitry, no feedback, and 35W per channel.
fig. 01 · integrated amplifiers
T.T.
From Pathos
The T.T. is the early Pathos model that introduced the brand's InPoL circuit language. It runs pure Class A with no feedback, delivers 2 x 35W at 8 ohms, responds from 13Hz to 78kHz, and weighs 42kg.
Specifications
| Product type | integrated amplifier operating in pure class A according to INPOL®circuitry |
|---|---|
| Power output | 2 X 35 W @ 8 Ω |
| Feedback | absent |
| Frequency response | 13 Hz - 78 kHz ± 0,5 dB |
| THD | < 0,5% up to the maximu power |
| S/N ratio | 90 db |
| Slew rate | 38 volt/μs |
| Input impedance | 100 KΩ |
| Power consumption at rest | 240 W |
| Dimensions | 480mm (D) X 450 (W) X 300mm (H) |
| Weight | 42Kg |
| Series | InPoL |
