PMC · Speakers
ACTIVE twenty5.22i

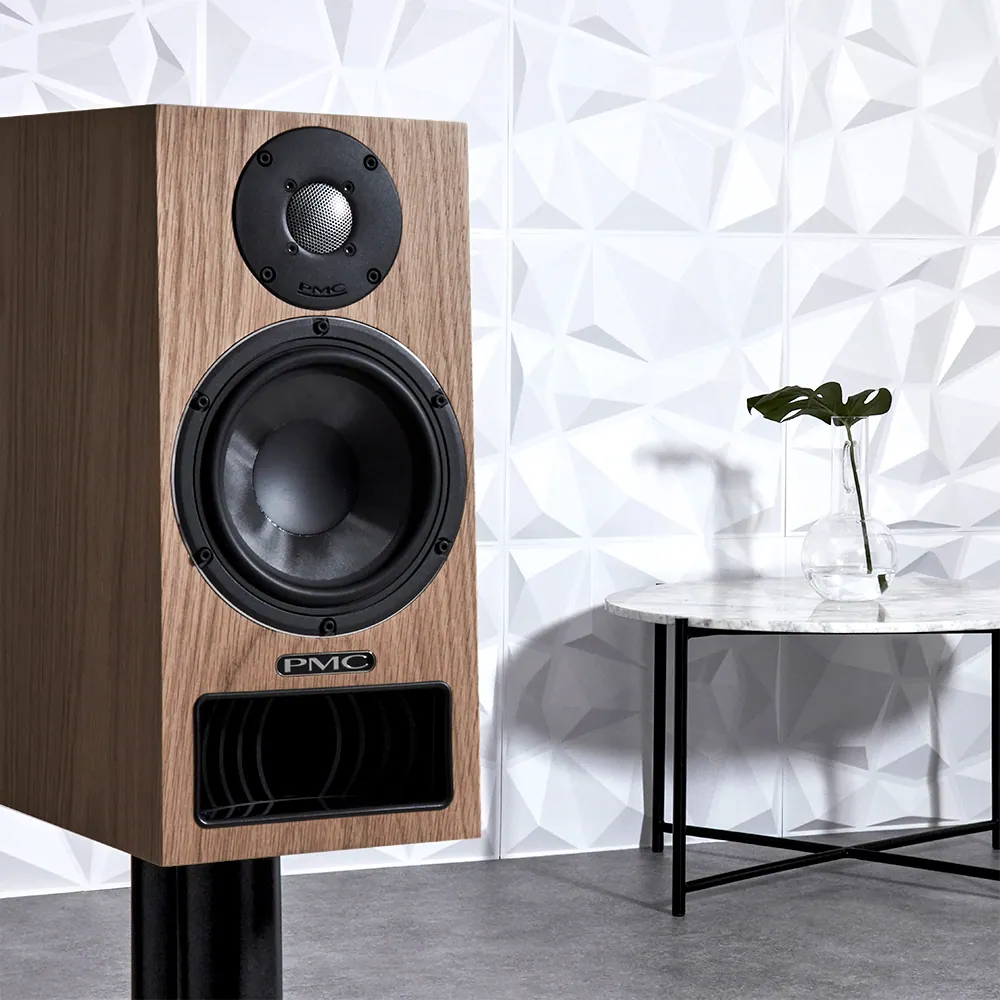

The Active twenty5.22i is a larger active standmount speaker in PMC's Active twenty5i range, built with onboard amplification and ATL bass loading.
fig. 01 · speakers
ACTIVE twenty5.22i
7 photographs · 5 shown
From PMC
The Active twenty5.22i steps up from the 21i with a larger cabinet, built for rooms that need more output and lower bass extension.
Amplification is built into the cabinet, and PMC's ATL bass loading carries through from the rest of the twenty5i range.
It sits equally well on dedicated stands or console furniture, and suits larger listening spaces than the 21i.
Specifications
| Frequency Response | 39Hz - 25kHz |
|---|---|
| Sensitivity | 1Vrms = 99dB SPL @ 1m (low setting) / 109dB SPL @ 1m (high setting) |
| Effective ATL™ Length | 2m (6.5ft) |
| Impedance | >14kΩ |

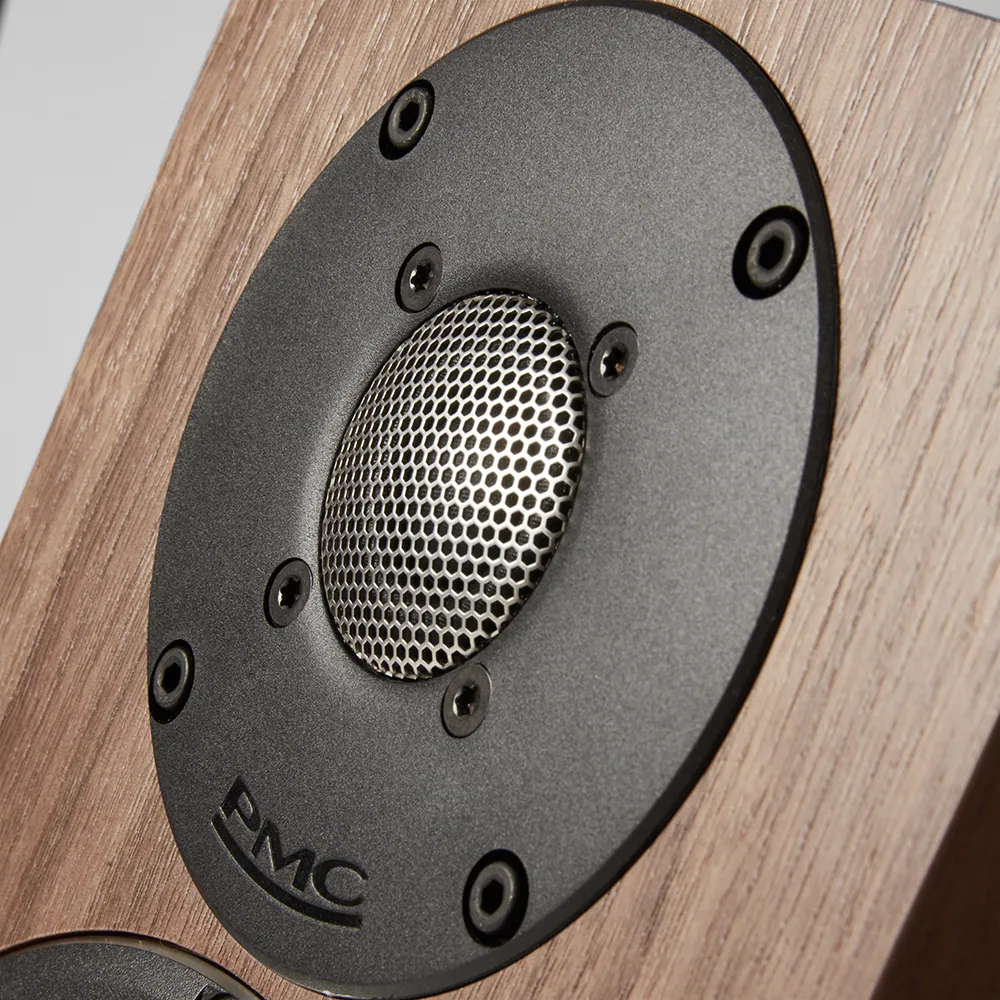

| Drive Units | LF PMC 6.5” / 170mm long-throw g-weave™ cone with cast alloy chassis HF PMC/SEAS®, 19mm twenty5i series, SONOMEX™ fabric soft dome, Ferrofluid cooled, with 34mm surround and dispersion grille |
| Crossover Frequency | 1.75kHz |

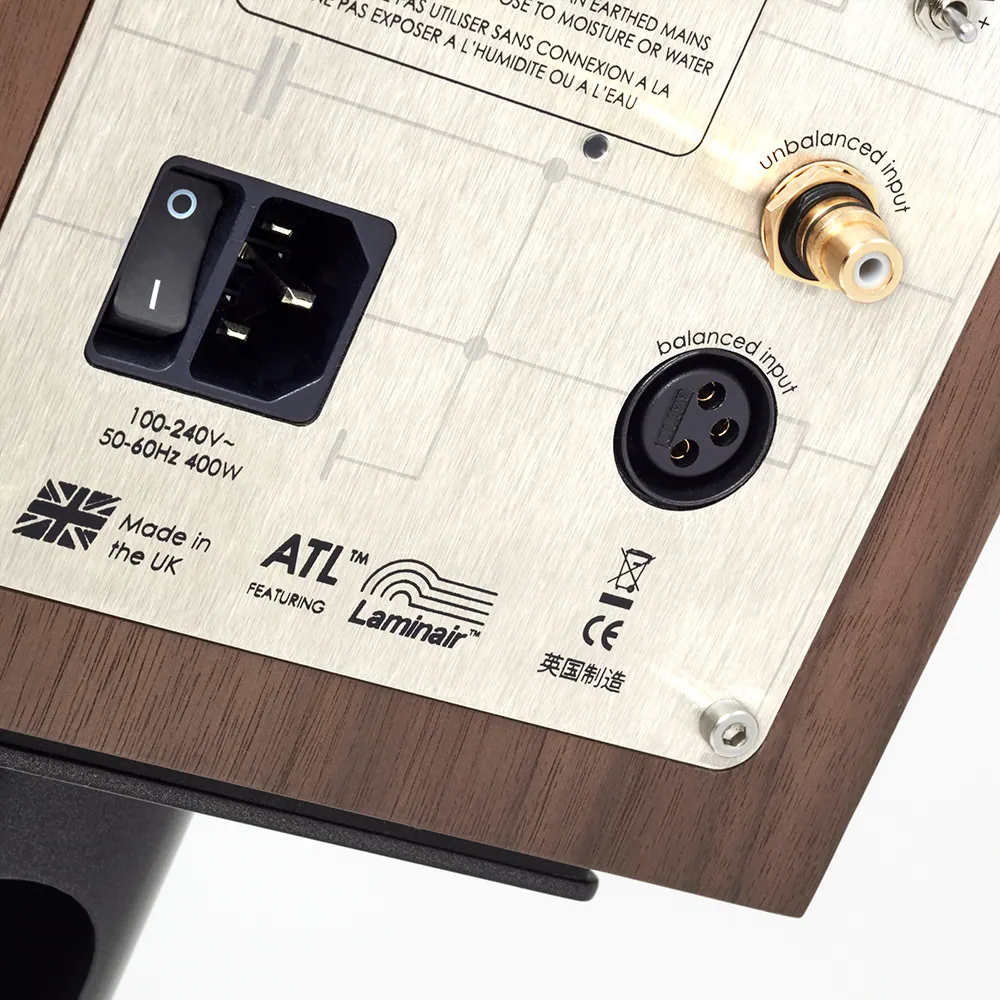

| Input Connectors | Balanced analogue XLR and unbalanced RCA |
| Dimensions | H 410mm (16.1”) W 192mm(7.6”) D 357mm (14”) including connectors (+ 9mm grille) |
| Weight | 10.15KG (22.37 lbs) |
