ACTIVE twenty5.23i
The Active twenty5.23i is a compact active floorstanding speaker, combining PMC's ATL bass loading with onboard amplification.
fig. 01 · speakers
ACTIVE twenty5.23i
7 photographs · 5 shown
From PMC

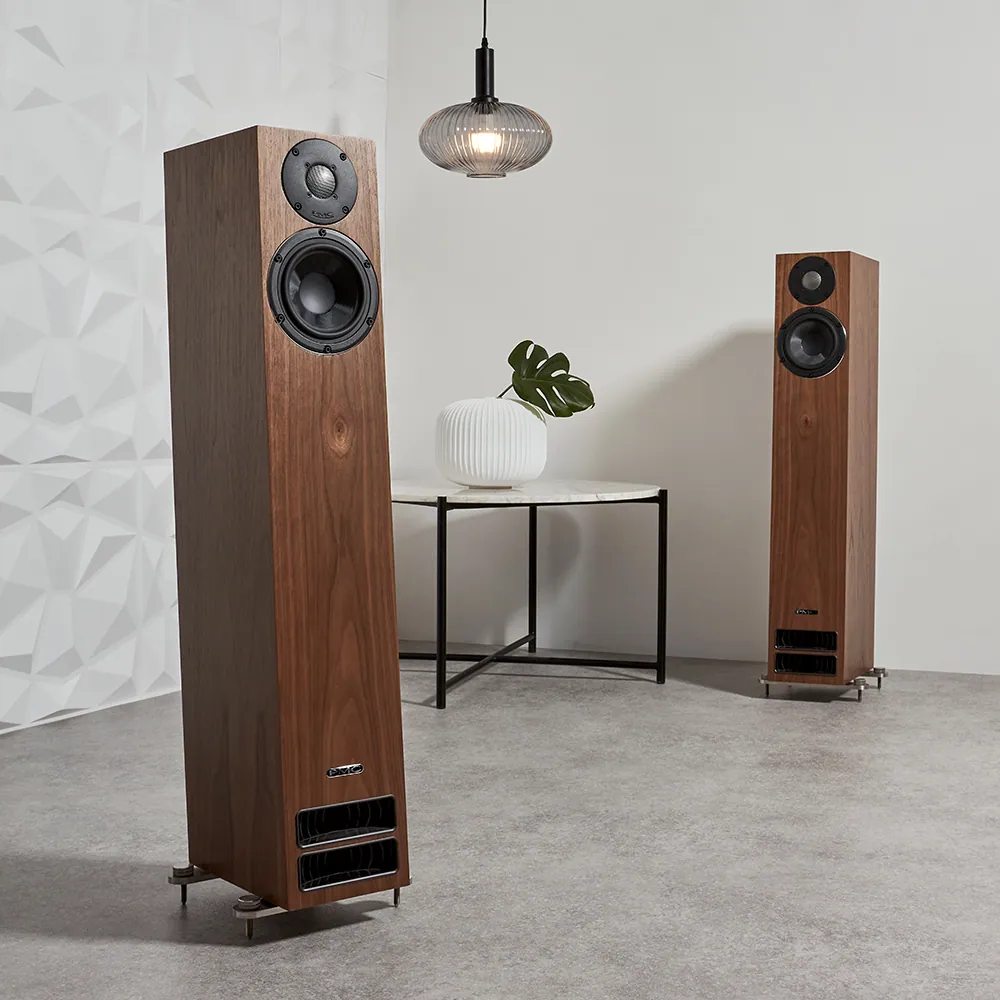

The Active twenty5.23i is a floorstanding model built around the driver and cabinet configuration that made the passive twenty5.23i the most popular speaker in PMC's lineup.
It carries built-in amplification and ATL bass loading, aimed at weight and refinement in a cabinet that stays compact for a floorstander.
It suits listeners who want a floorstanding active speaker without a large footprint.
Specifications
| Frequency Response | 28Hz – 25kHz |
|---|---|
| Sensitivity | 1Vrms = 96.5dB SPL @ 1m (low setting) / 106.5dB SPL @ 1m (high setting) |
| Effective ATL™ Length | 2.4m (7.8ft) |
| Impedance | >14kΩ |

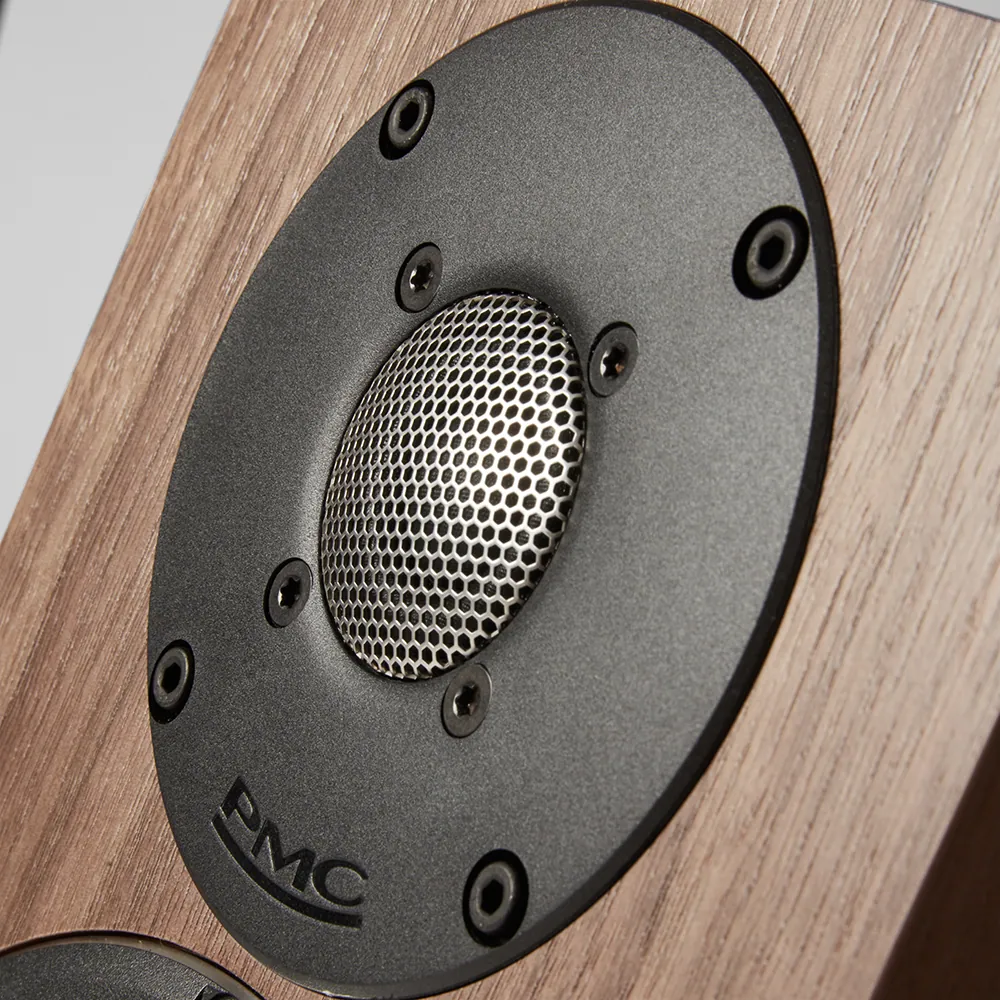

| Drive Units | LF PMC 5.5” / 140mm long-throw g-weave™ cone with cast alloy chassis HF PMC/SEAS®, 19mm twenty5i series, SONOMEX™ fabric soft dome, Ferrofluid cooled, with 34mm surround and dispersion grille |
| Crossover Frequency | 1.75kHz |

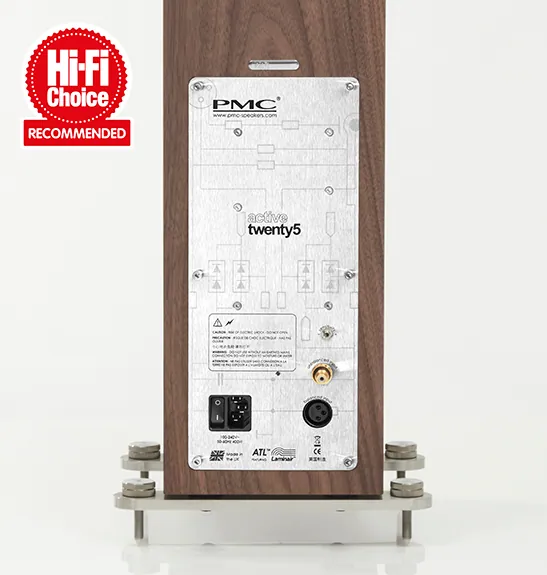

| Input Connectors | Balanced analogue XLR and unbalanced RCA |
| Dimensions | H 907mm (35.7”) (+20mm spikes) W 162mm (6.4”) (238mm incl. plinth bars) D 330mm (13”) (+9mm grille) |
| Weight | 15.15KG (33.40 lbs) |
