PMC · Speakers

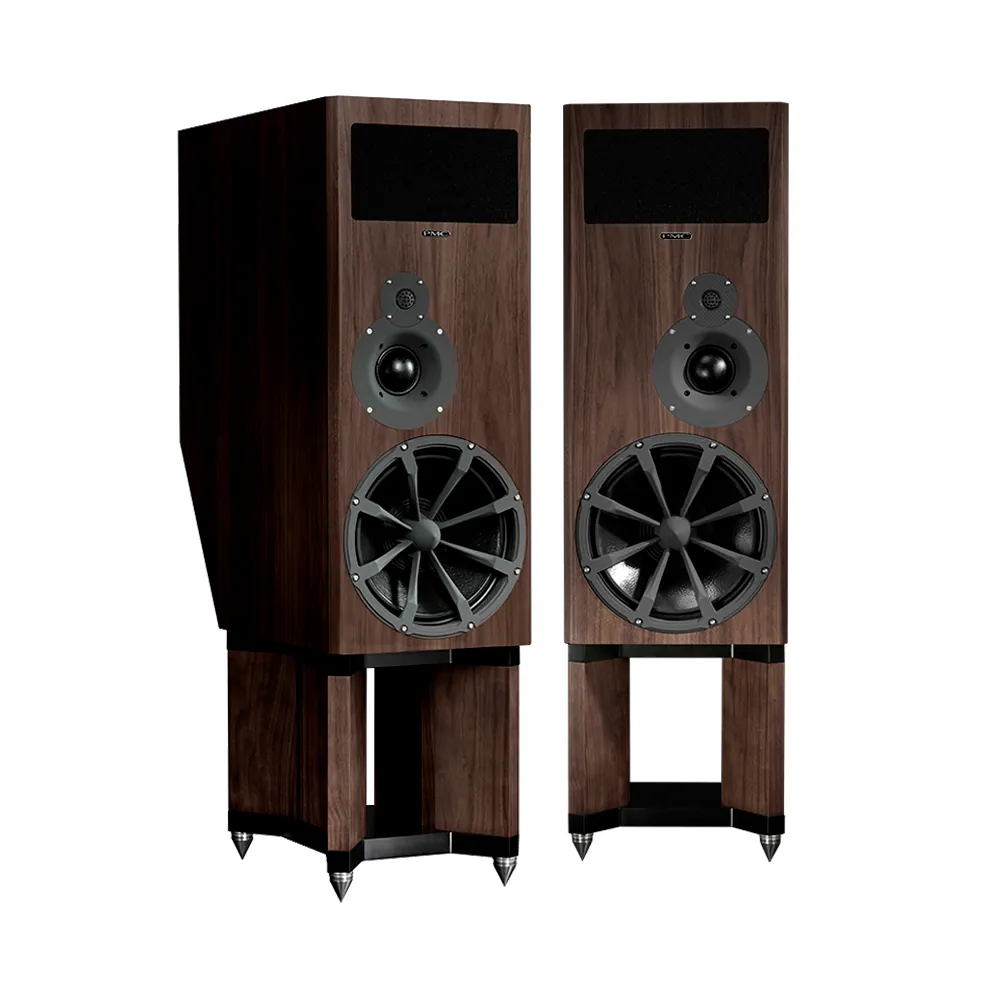

BB5-A SE (Active)
The BB5-A SE is the largest active model in PMC's SE range, built around a 15-inch Radial bass unit.
fig. 01 · speakers
BB5-A SE (Active)
From PMC
The BB5-A SE is the top model in PMC's SE monitor range, an active speaker built to handle the widest output range in PMC's active lineup.
Its 15-inch Radial bass unit is sized to move the air a full-range mix demands without strain, even at high output.
It's built for mastering and mixing rooms, and for home systems that want reference-level monitoring at scale.
Specifications
| Frequency Response | 17Hz-25kHz |
|---|---|
| Effective ATL™ Length | 4m (13ft) |

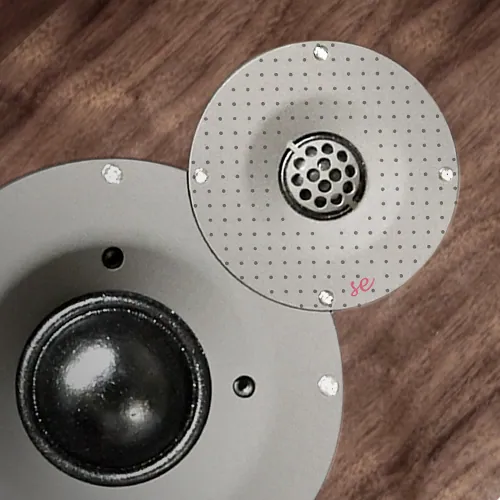

| Drive Units | LFPMC 15” (380mm) Radial™ driver MF PMC75 3” (75mm) fabric dome HF PMC34 1.3” (34mm) soft dome |
| Crossover Frequency | 380Hz - 3.8kHz |

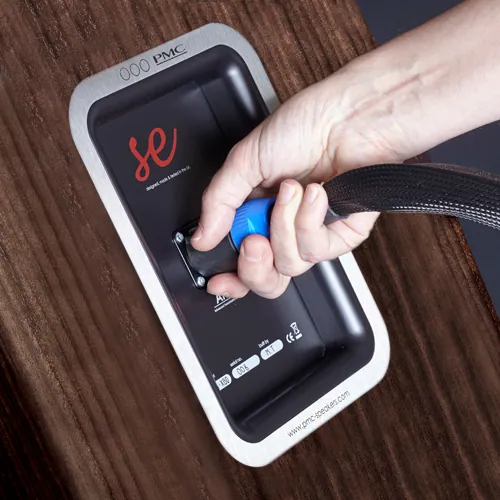

| Input Connectors | Neutrik NL8 Balanced Analogue XLR |

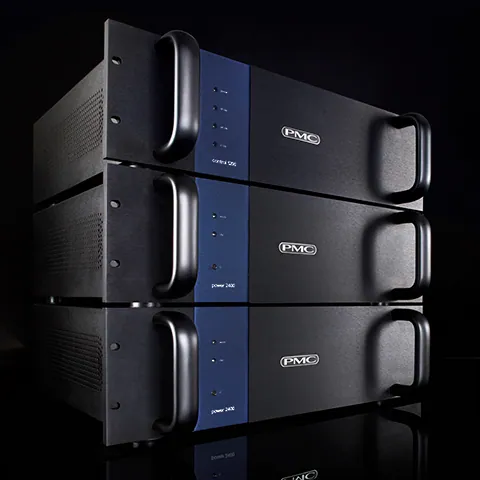

| Amplifier Power per Channel | LF 900W MF 300W HF 300W |
| Dimensions | H 1040mm (41”) W 432mm (17”) D 790mm (31”) |
| Weight | 87kg (191.8lbs) Stand: 19kg (41.9lbs) |
