PMC · Speakers
BB5 SE
The BB5 SE is a passive studio monitor and the largest model in PMC's SE range, built around a 15-inch Radial bass unit.
fig. 01 · speakers
BB5 SE
From PMC
The BB5 SE is the passive version of PMC's flagship SE monitor, built to handle the widest output range in the SE lineup.
Its 15-inch Radial bass unit is the same design used in the active BB5-A SE, without the onboard amplification.
It's built for mastering and mixing rooms running external amplification, and for home systems that want BB5-level scale.
Specifications
| Frequency Response | 17Hz-25kHz |
|---|---|
| Sensitivity | 92dB 1w 1m |
| Recommended Amp Power | 10 - 700W |
| Effective ATL™ Length | 4m 13ft |
| Impedance | 4 Ohm nominal |

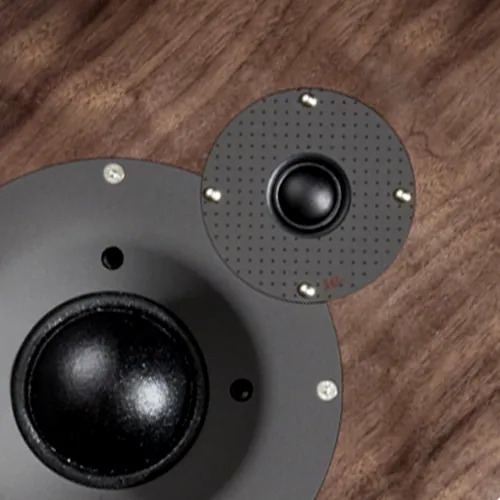

| Drive Units | LF - PMC 15” 380mm Radial™ driver HF - 27mm SONOLEX™ soft dome Ferrofluid cooled MF - PMC75 SE - 75mm soft dome |
| Crossover Frequency | 380Hz - 3.8kHz |

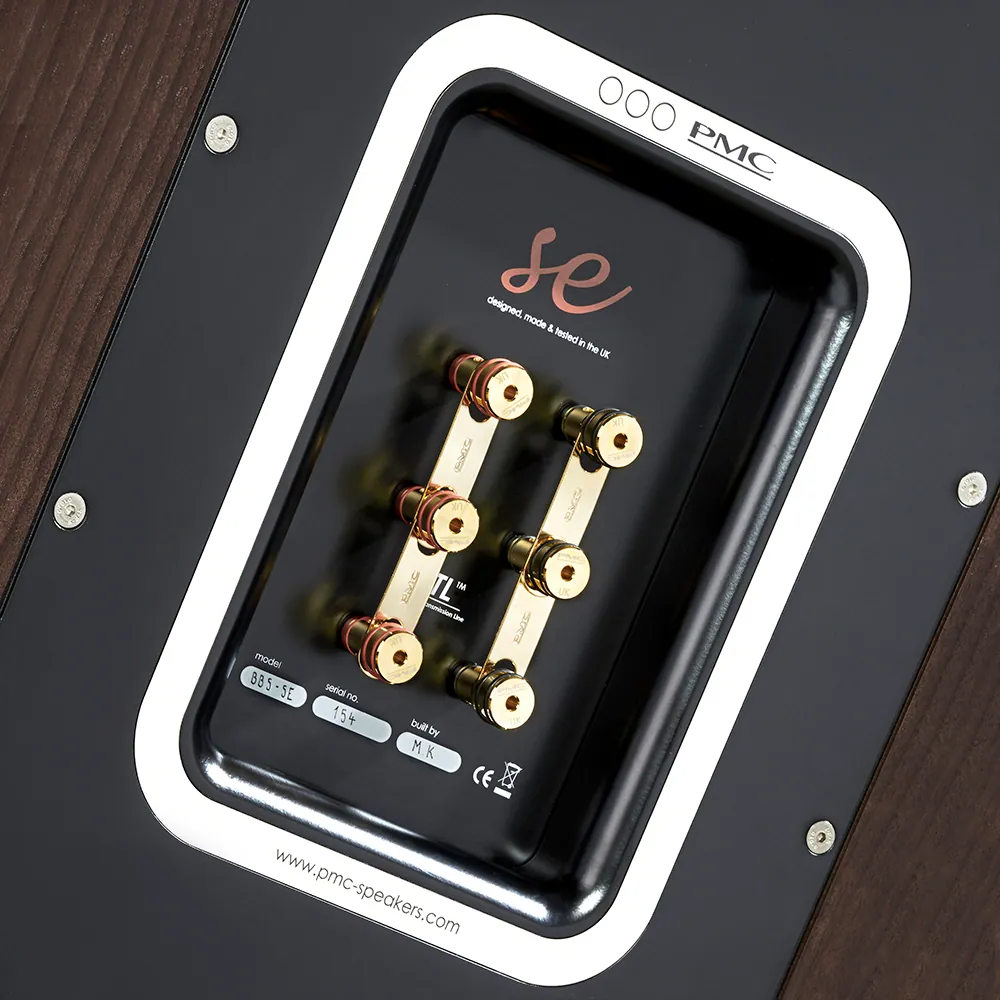

| Input Connectors | 3 pairs 4mm sockets (Tri-Wire or Tri-Amp) |
| Dimensions | H 1040mm (41″) W 432mm (17″) D 790mm (31.1″) |
| Weight | 87kg (191lbs) & Stands 19kg (42lbs) |
