PMC · Speakers
BB5 XBD-A SE (Active)
The BB5 XBD-A SE is PMC's largest active monitor, a twin-cabinet design built around dual 15-inch Radial drivers with more than 2400W of power per channel.
fig. 01 · speakers
BB5 XBD-A SE (Active)
From PMC

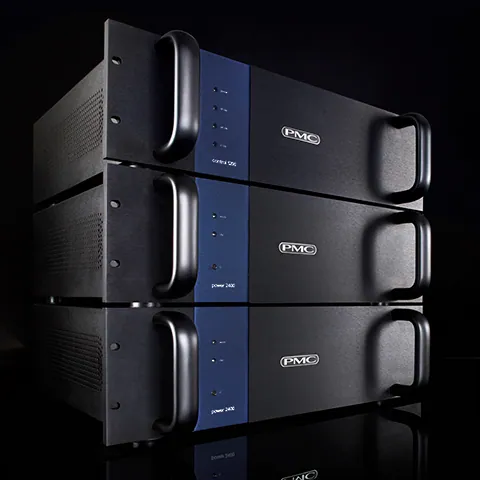

The BB5 XBD-A SE splits amplification and bass duties across two cabinets, built around 15-inch Radial drivers and more than 2400 watts of power per channel.

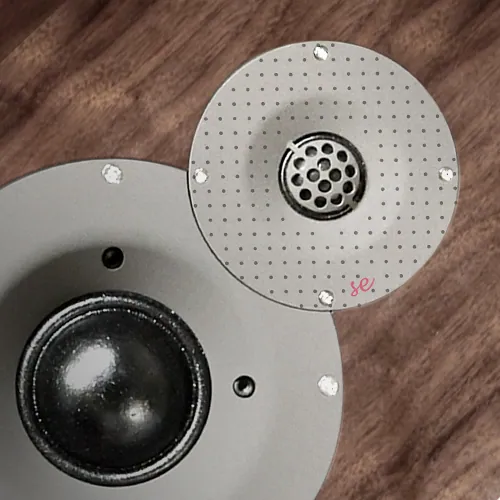

It has 3dB more low-frequency headroom than the single-cabinet BB5, and its bass response extends down to 17Hz, the widest frequency range of any speaker PMC makes. A 34mm high-frequency driver and a hand-crafted 75mm mid-range dome driver handle the top end.
It's built for mastering rooms and reference systems where full-range accuracy at high output matters more than cabinet size.
Specifications
| Frequency Response | 17Hz-25kHz |
|---|---|
| Effective ATL™ Length | 2 x 4m (13ft) |
| Drive Units | LF 2 x PMC 15” (380mm) Radial™ driver MF PMC75 3” (75mm) fabric dome HFPMC34 1.3” (34mm) soft dome |
| Crossover Frequency | 380Hz - 3.8kHz |

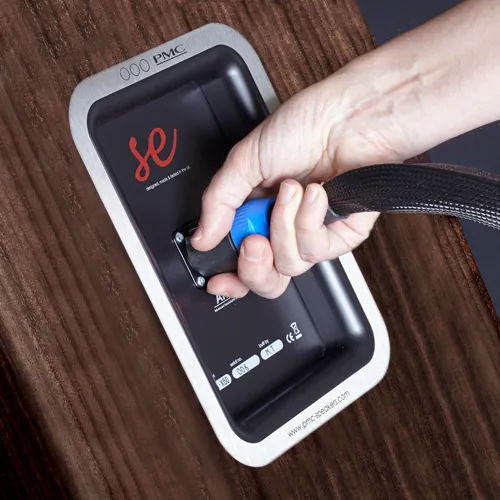

| Input Connectors | Neutrik NL8, NL4 Balanced Analogue XLR |
| Amplifier Power per Channel | LF 2 x 900W MF 300W HF 300W |
| Dimensions | H 2080mm (81.9”) W 432mm (17”) D 790mm (31”) |
| Weight | 136kg (299.2lbs) |
