PMC · Integrated Amplifiers
cor integrated
The PMC cor is PMC's all-in-one amplifier, built to add no sonic character of its own to the signal it passes.
fig. 01 · integrated amplifiers
cor integrated
From PMC
The cor is an amplifier built on the same brief as PMC's speakers: reproduce the music as recorded, without coloring it.
PMC treats amplification and speaker design as one problem rather than two separate ones. The cor carries that same transparency-first approach into electronics.
It's built to partner with PMC loudspeakers as a matched front end, giving listeners a full system built around the same sonic philosophy.
Specifications
| Type | Pure analogue Class A/B integrated amplifier |
|---|---|

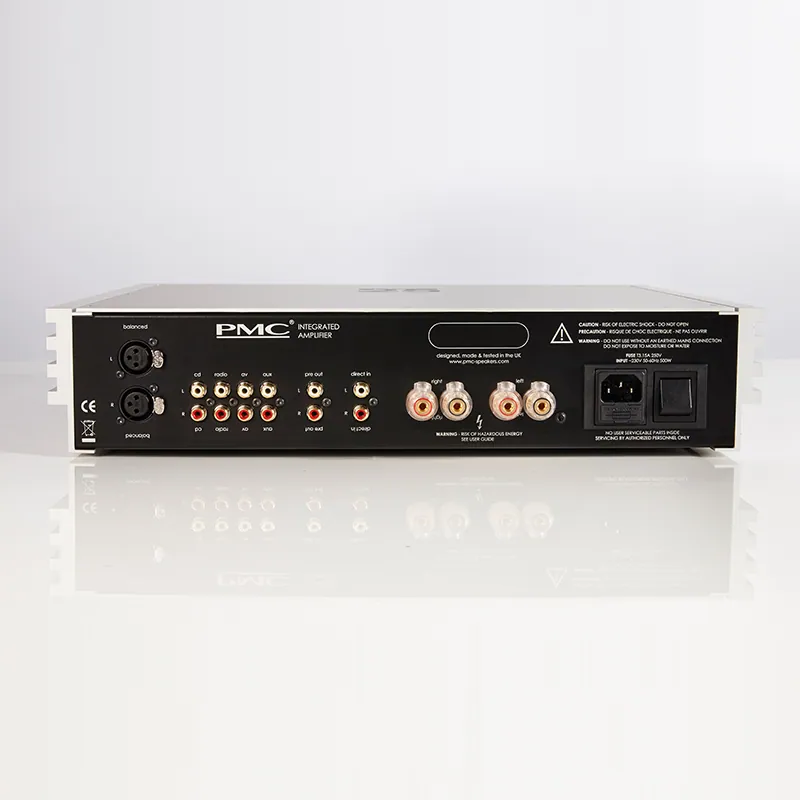

| Inputs | 1 x balanced, 4 x single-ended, direct in |
| Outputs | 4mm binding posts, preamp out |
| Dimensions | W 432mm H 87.5mm D 401mm (inc. feet) |
| Weight | 12kg |
| Frequency response | 20Hz - 20kHz +0/-0.2dB 5Hz - 80kHz +0/-1dB |
| Maximum gain | 15dB |

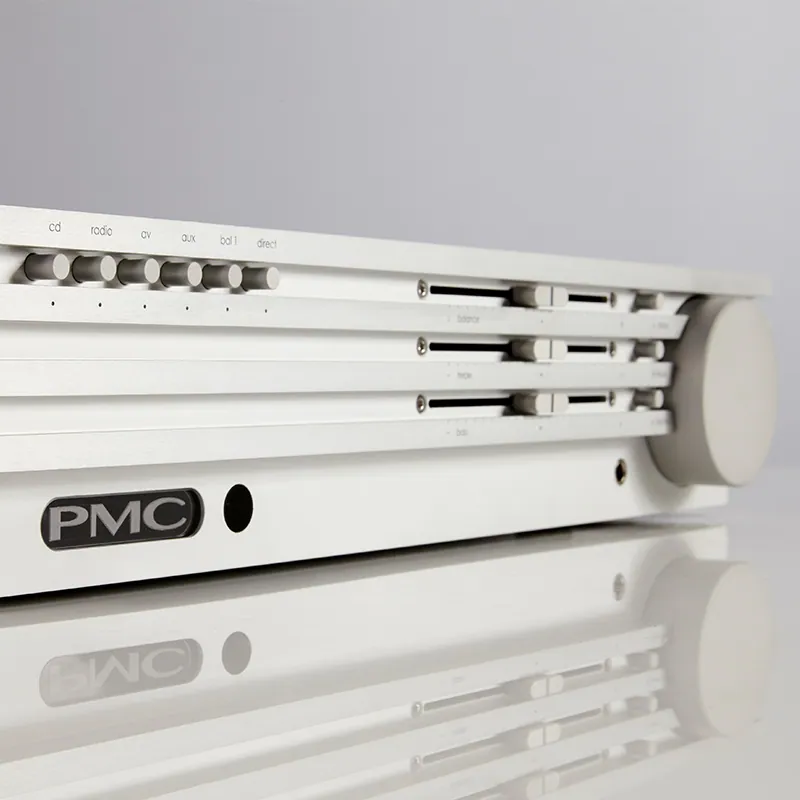

| Tone controls | +/- 10dB |
| Input impedance | 23.5kOhms |
| THD | 0.001% at 1kHz <0.005%, 20Hz - 20kHz, 80kHz measurement bandwidth |
| Noise | -101dB A-weighted re. rated output |
| Maximum input | 5.5Vrms |
| Maximum output | 10Vrms |
| Rated output power, 230V mains | 95W into 8Ohms,140W into 4Ohms |
| Sensitivity | 1V = 100W into 8Ohms |
| Gain | 28.9dB |
| THD (Rated output power into 8Ohms) | 0.001% at 1kHz <0.01%, 20Hz - 20kHz, 80kHz measurement bandwidth |
| Output Impedance | <0.05Ohms, 20Hz - 20kHz |
| Damping factor | >160 into 8Ohms, 20Hz - 20kHz |
