Fenestria
The Fenestria is PMC's flagship fact-range loudspeaker, built with an aerodynamic cabinet and PMC's patented ATL bass-loading technology.
fig. 01 · speakers
Fenestria
8 photographs · 5 shown
From PMC

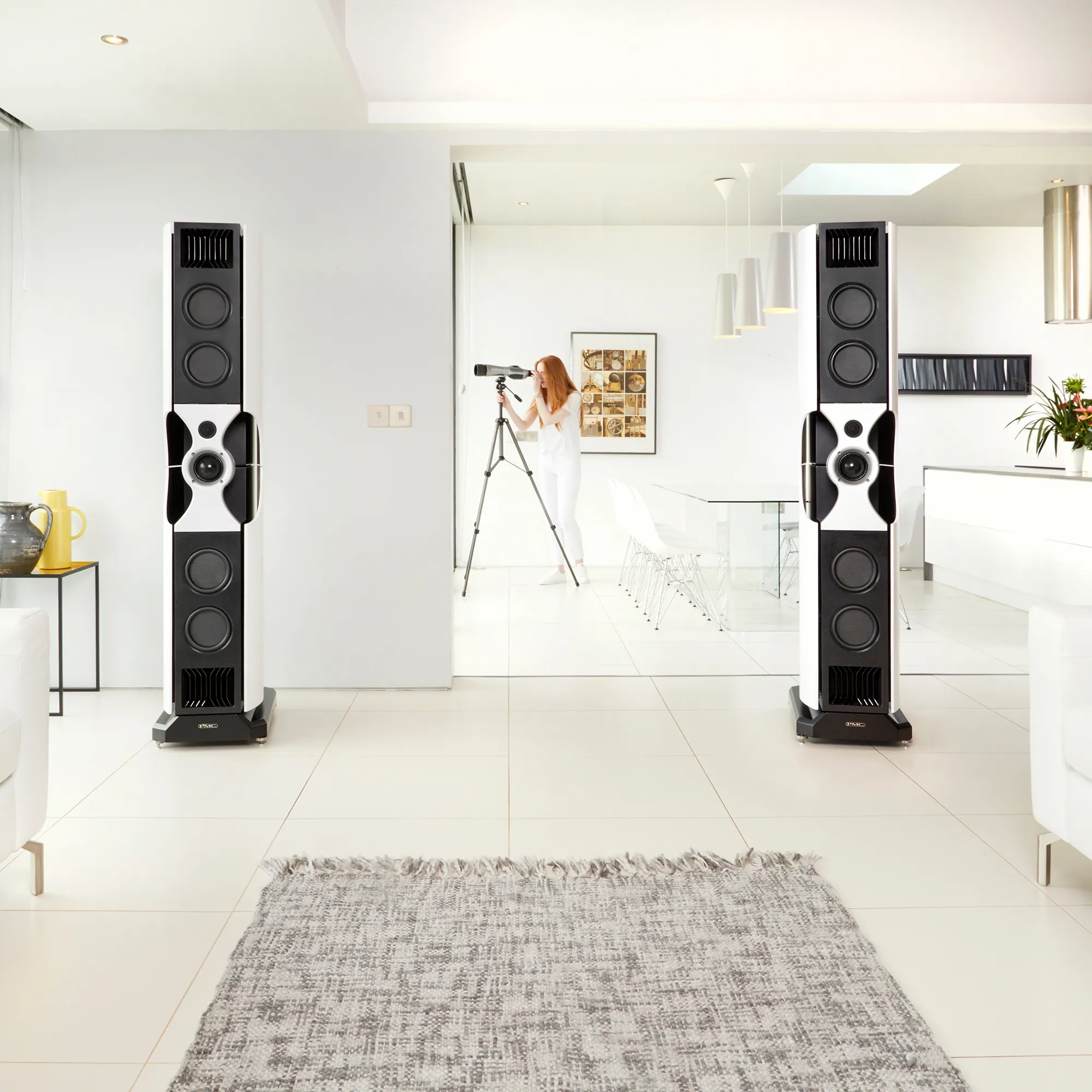

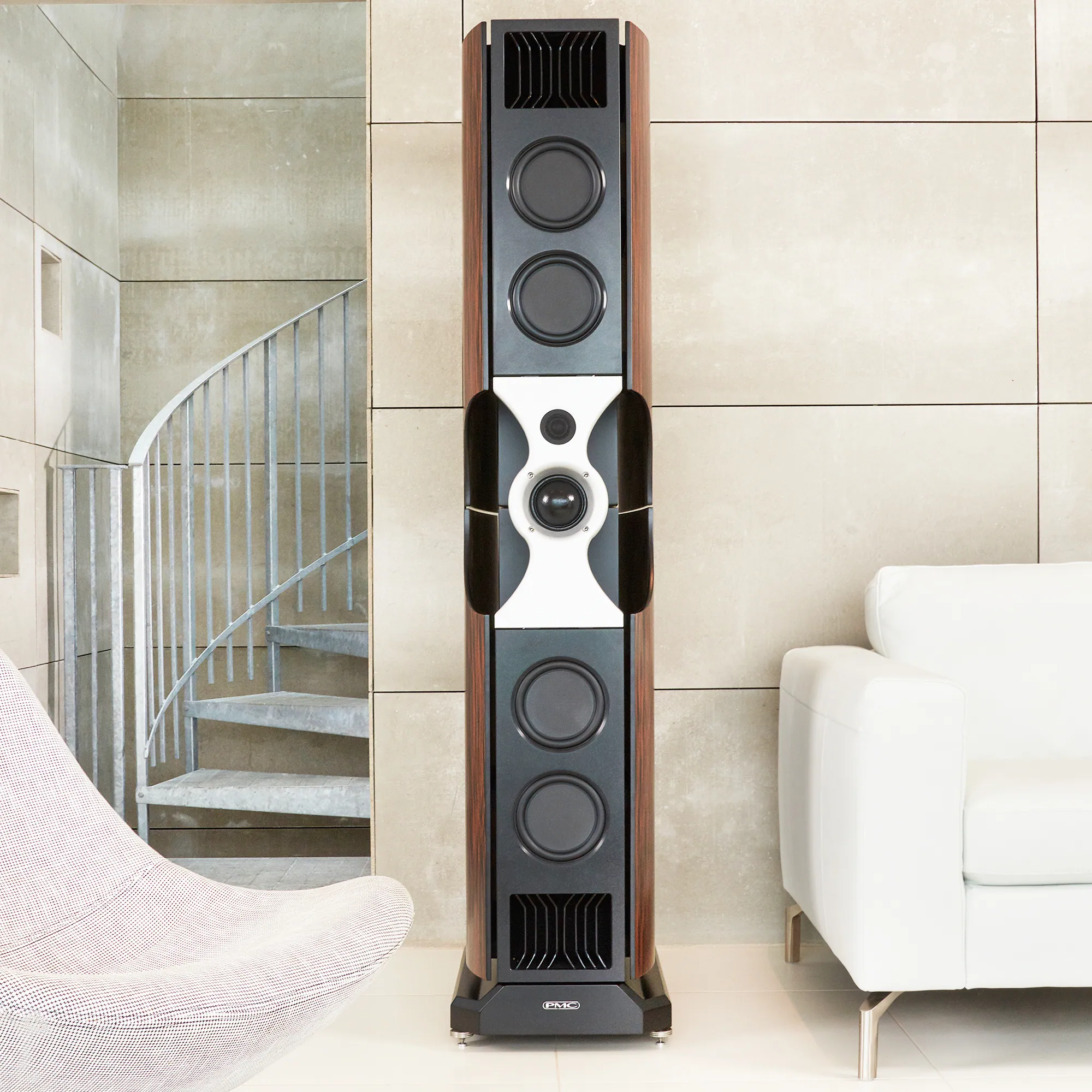

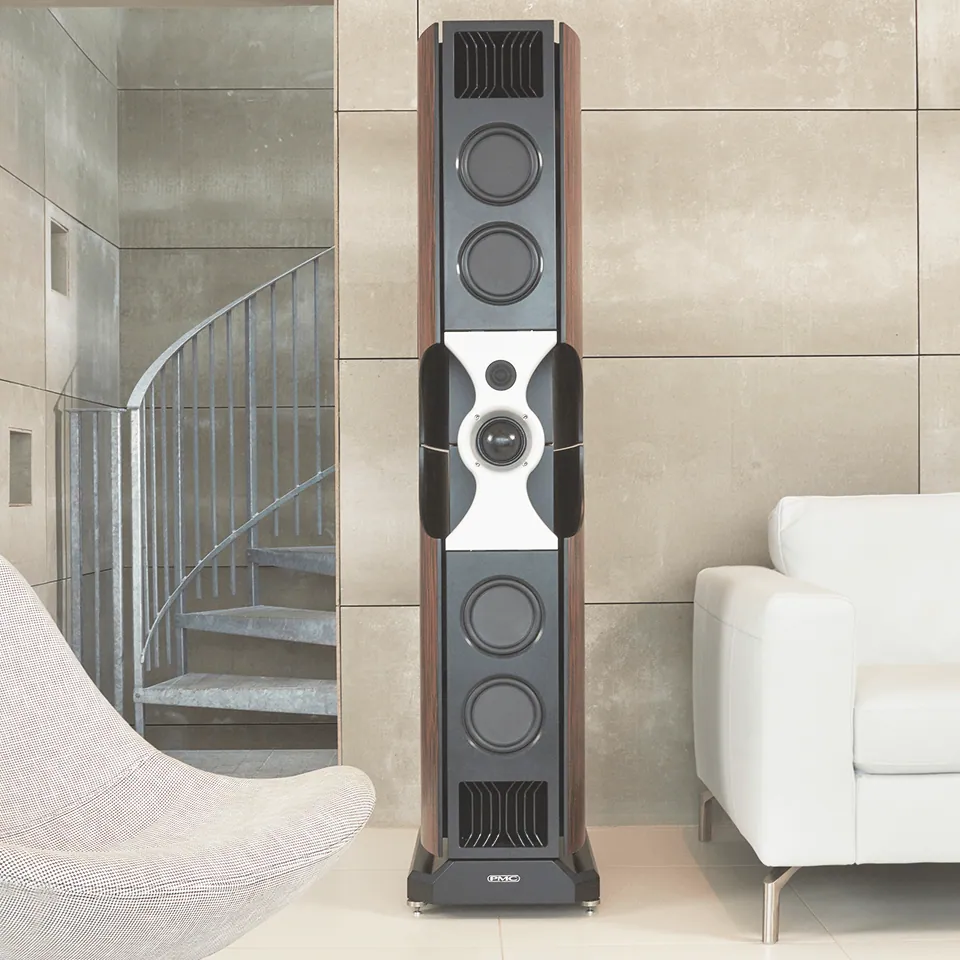

The Fenestria sits at the top of PMC's fact range, a floorstanding speaker built around a shaped, aerodynamic cabinet rather than a traditional rectangular box.
It uses PMC's patented Advanced Transmission Line (ATL) bass-loading technology, combined with vibration-cancelling cabinet engineering aimed at keeping the enclosure itself out of the sound.
It's built for listeners who want PMC's most advanced fact-range engineering in a speaker that adds as little of its own character as possible to the music it plays.
Specifications
| Frequency Response | 23Hz - 25kHz |
|---|---|
| Sensitivity | 86dB @ 1W, 1m |
| Recommended Amp Power | 30W - 1000w |
| Effective ATL™ Length | 2 x 2.4m (7.9ft) |
| Impedance | 4 Ohms |

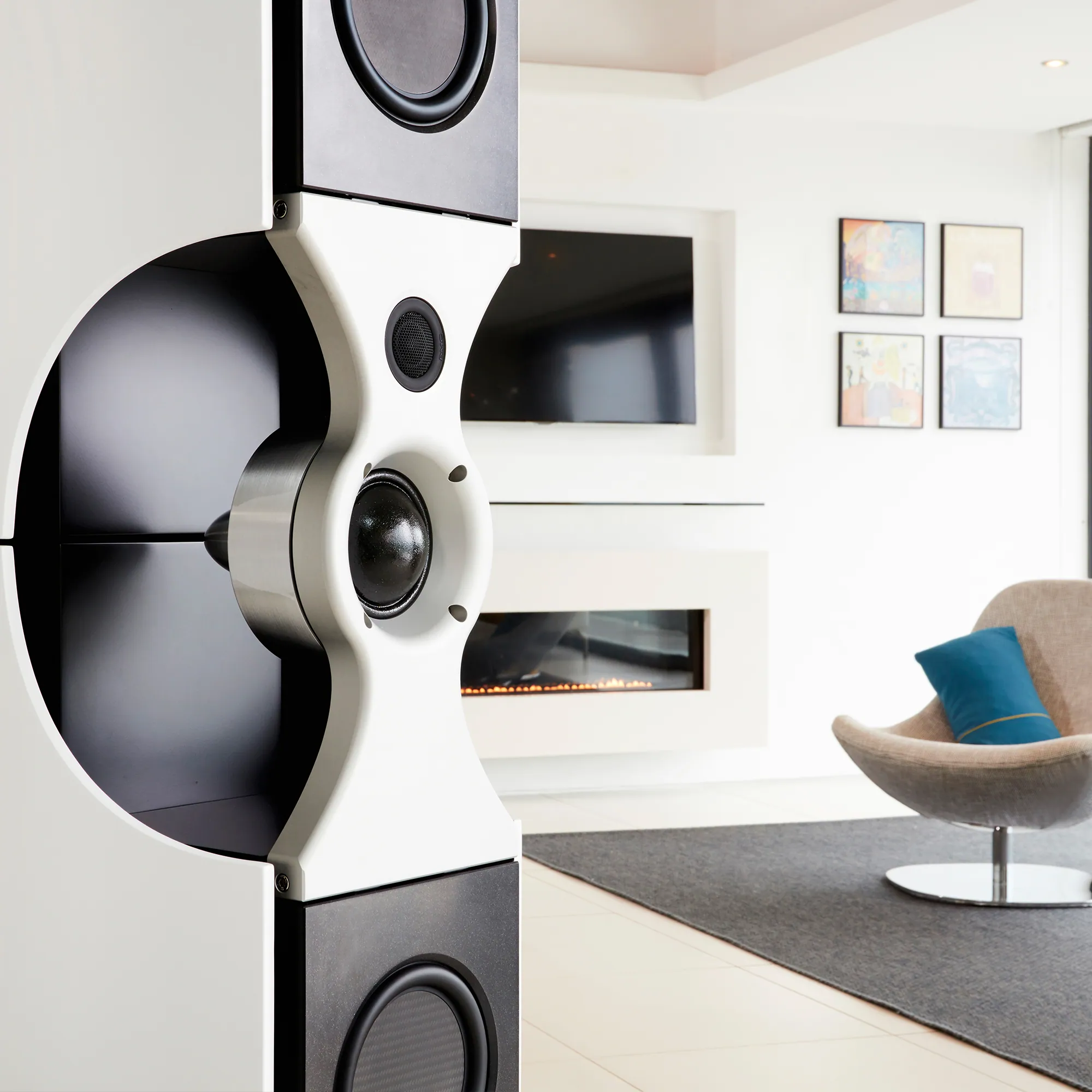

| Drive Units | LF — 6.5” transverse-weave, carbon-fibre, multicellular-core piston driver MF — 75mm rear-chambered, soft-dome driver isolated in nest mount HF — 19.5mm, SONOMEX™ soft-dome, ferro-fluid-cooled driver with 36mm wide surround, neodymium magnet, micro custom chassis, silicone Aureole™ isolation mount |
| Crossover Frequency | 3.8kHz & 380Hz |
| Input Connectors | Hex-Rhodium 4mm binding posts (3 pairs) accepting 4mm plugs, spades & bare wire |
| Dimensions | H 1700mm (66.9”) W 370mm (14.6”) D 623mm (24.5”) including binding posts |
| Weight | 80kg (176 lbs) each, including plinth |
