PMC · Speakers

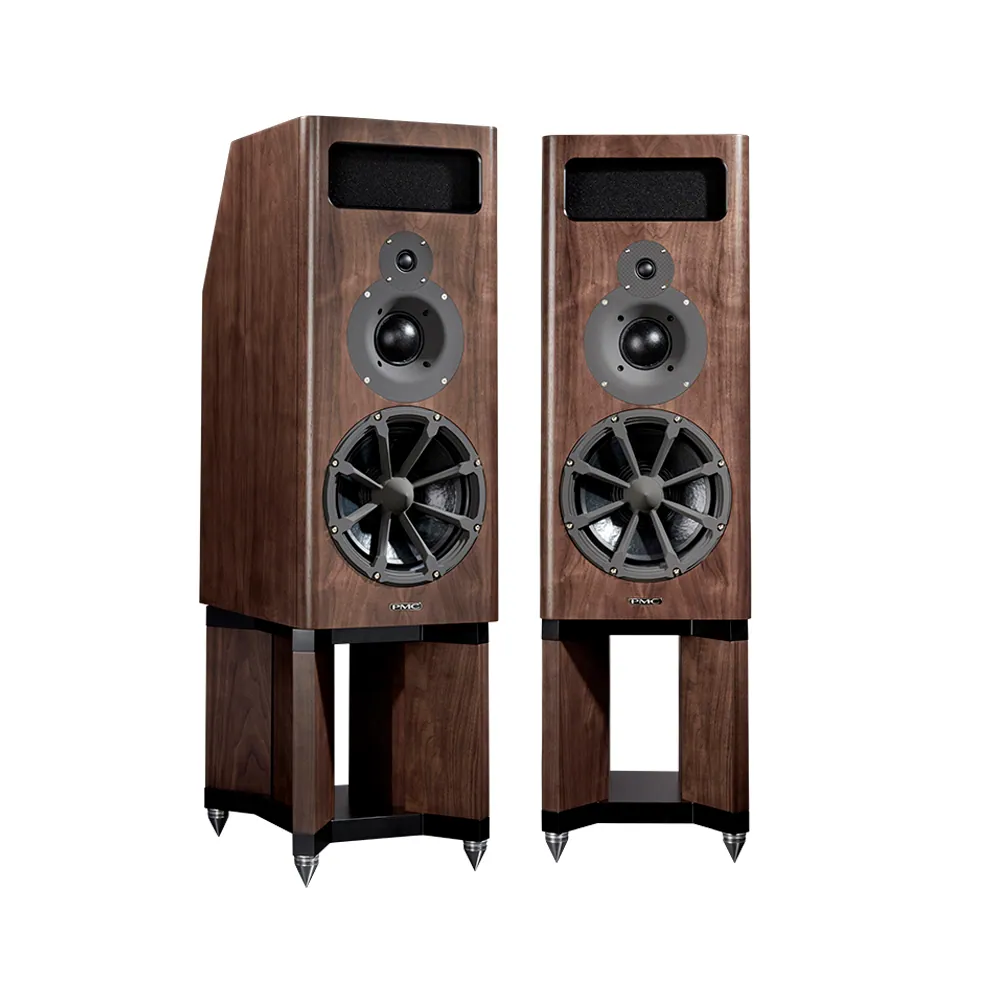

MB2 SE
The MB2 SE is a passive studio monitor in PMC's SE range, with a Radial bass unit rated down to 20Hz.
fig. 01 · speakers
MB2 SE
7 photographs · 5 shown
From PMC
The MB2 SE is the passive version of PMC's mid-sized SE monitor, sitting between the IB2 SE and BB5 SE in the range.
It shares the Radial bass unit used across the SE range: an exo-skeleton frame that keeps the cone rigid through large excursions, with exposed fins acting as a heat sink for the voice coil. Bass extends down to 20Hz.
It requires external amplification and suits studios or home systems already running a separate power amp.
Specifications
| Frequency Response | 20Hz-25kHz |
|---|---|
| Sensitivity | 90dB 1w 1m |
| Recommended Amp Power | 10 - 500W |
| Effective ATL™ Length | 3m 10ft |
| Impedance | 8 Ohm nominal |

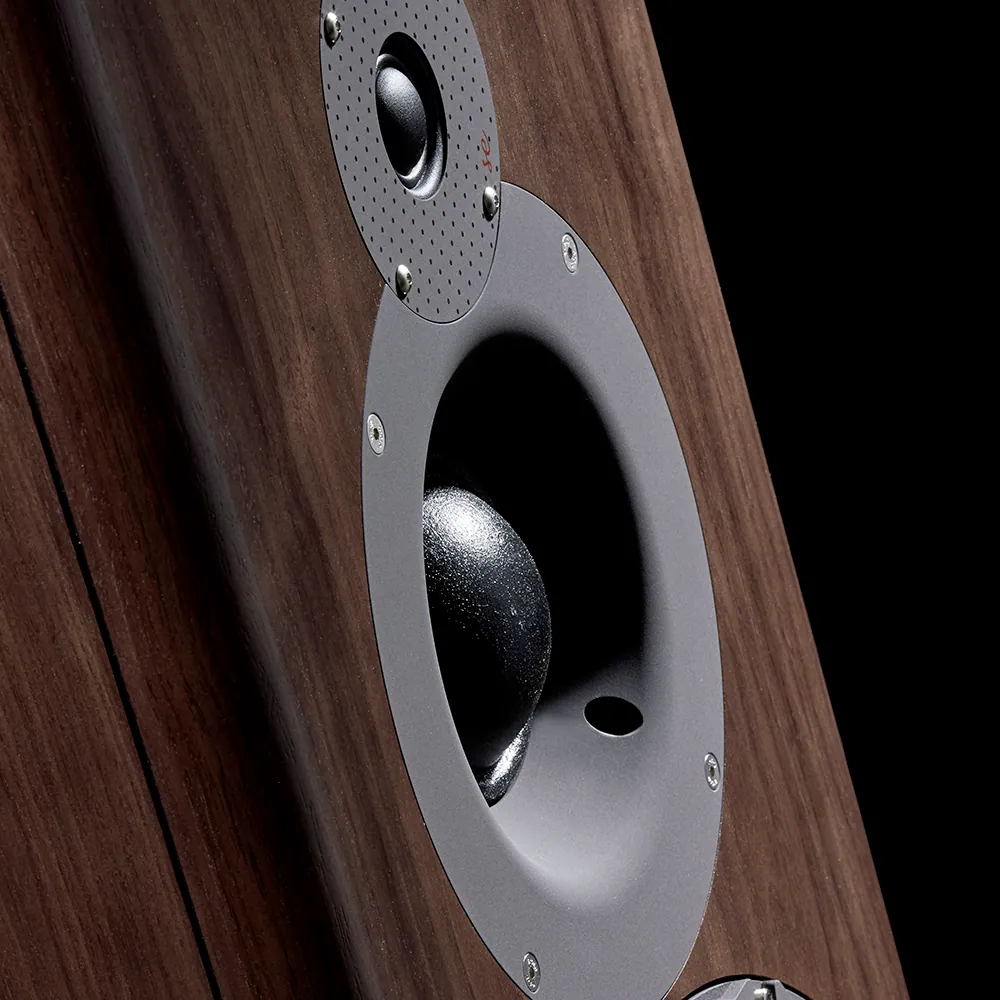

| Drive Units | LF - PMC 12” 310mm Radial™ driver HF- 27mm SONOLEX™ soft dome Ferrofluid cooled MF - PMC75 SE - 75mm soft dome |
| Crossover Frequency | 380Hz - 3.8kHz |

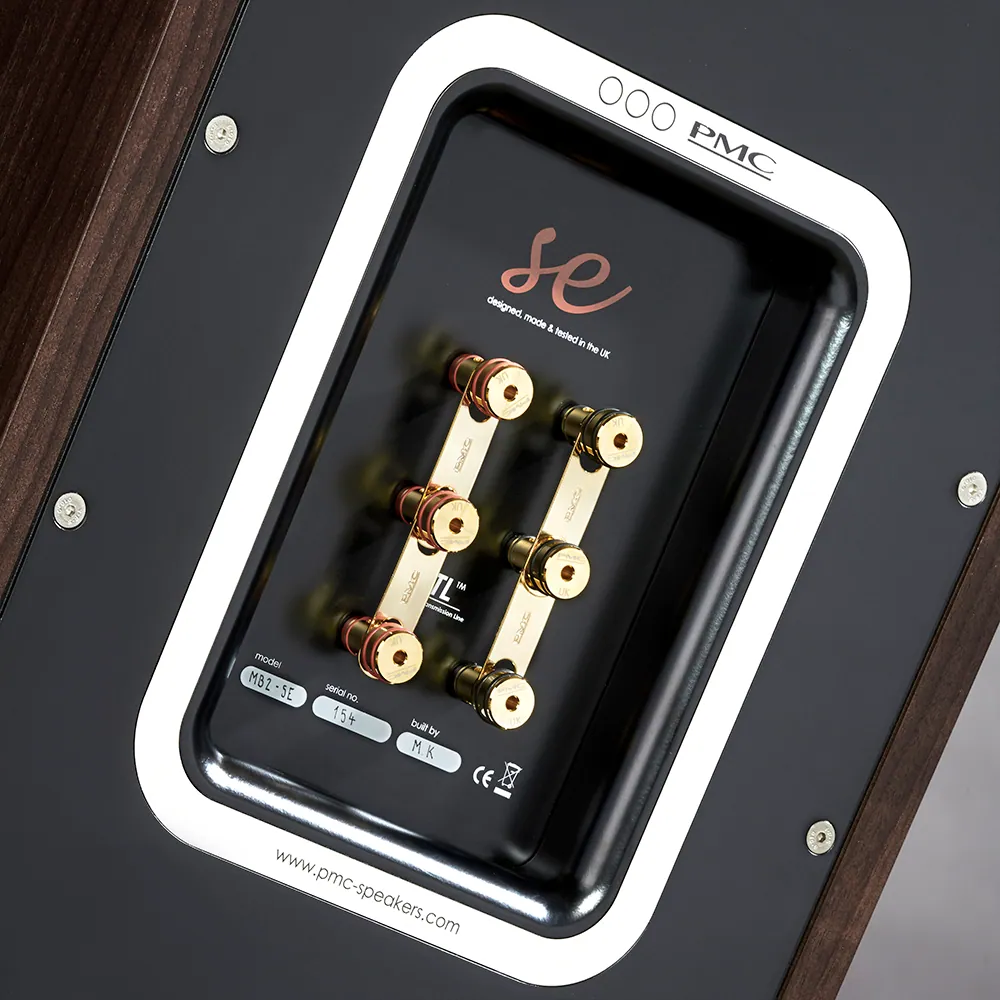

| Input Connectors | 3 pairs 4mm sockets (Tri-Wire or Tri-Amp) |
| Dimensions | H 870mm W 380mm D 535mm |
| Weight | 58kg (stand 17kg) |
