PMC · Speakers
MB2 XBD-A SE (Active)
The MB2 XBD-A SE is a twin-cabinet active monitor in PMC's SE range, built for extended bass depth and scale.
fig. 01 · speakers
MB2 XBD-A SE (Active)
From PMC

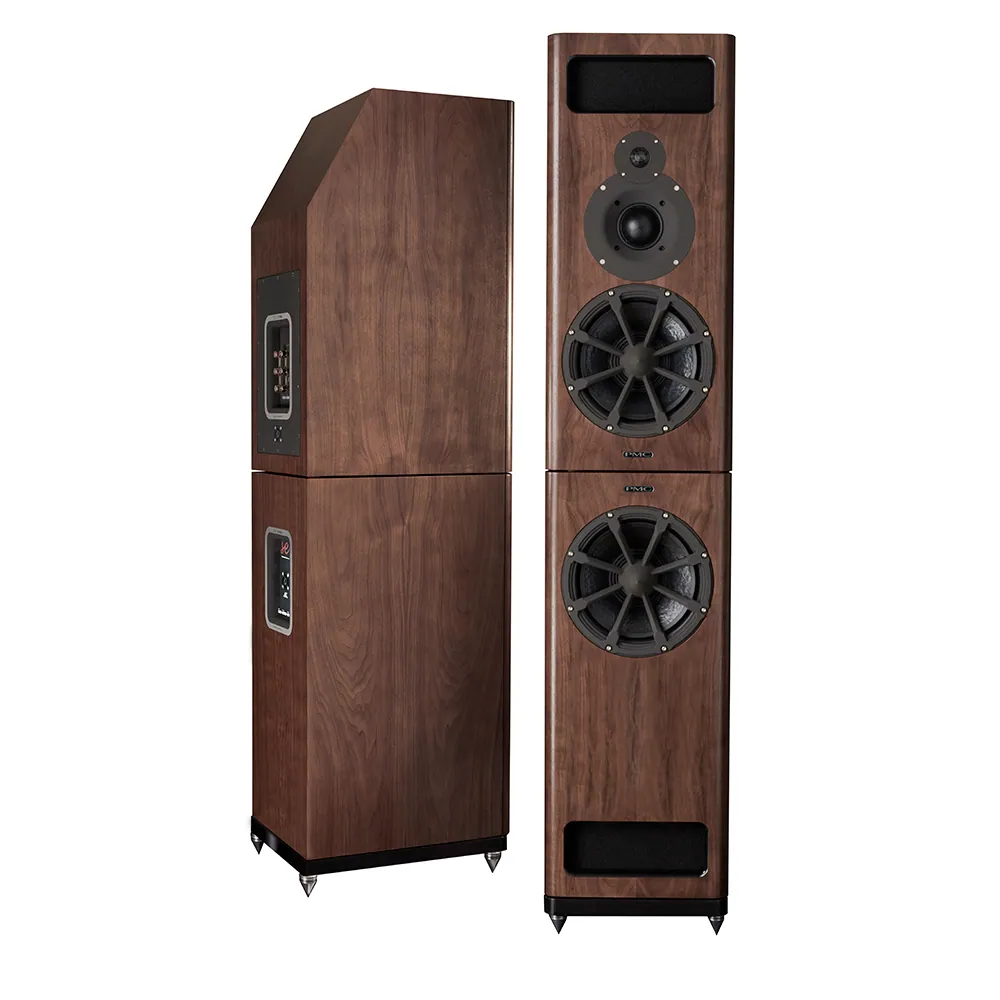

The MB2 XBD-A SE splits the MB2 platform across two cabinets, adding a dedicated extended bass driver alongside the main enclosure.
The twin-cabinet layout is built to add scale and low-frequency depth beyond what the single-cabinet MB2-A SE can produce.
It's built as a reference monitor for studios and high-end home systems that want MB2-level clarity with more bass extension.
Specifications
| Frequency Response | 20Hz-25kHz |
|---|---|
| Effective ATL™ Length | 2 x 3m (10ft) |

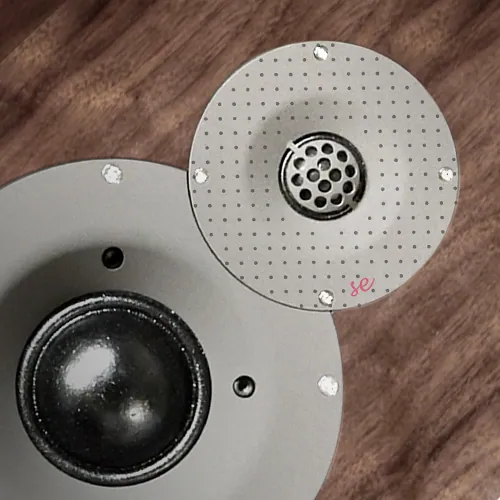

| Drive Units | LF 2 x PMC 12” (310mm) Radial™ driver MF PMC75 3” (75mm) fabric dome HF PMC34 1.3” (34mm) soft dome |
| Crossover Frequency | 380Hz - 3.8kHz |

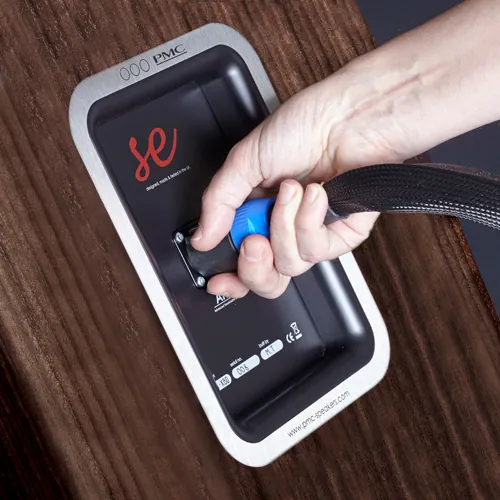

| Input Connectors | Neutrik NL8, NL4, Balanced Analogue XLR Balanced Analogue XLR |

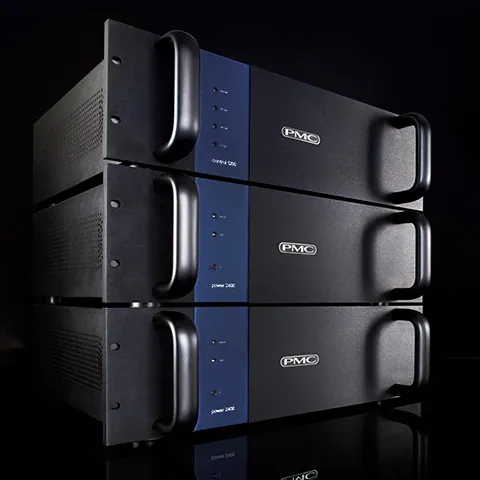

| Amplifier Power per Channel | LF 900W MF 150W HF 150W |
| Dimensions | H 1740mm (68.5”) W 380mm (14.96”) D 535mm (21”) |
| Weight | 116kg (255.7lbs) |
