PMC · Speakers
MB2 XBD SE

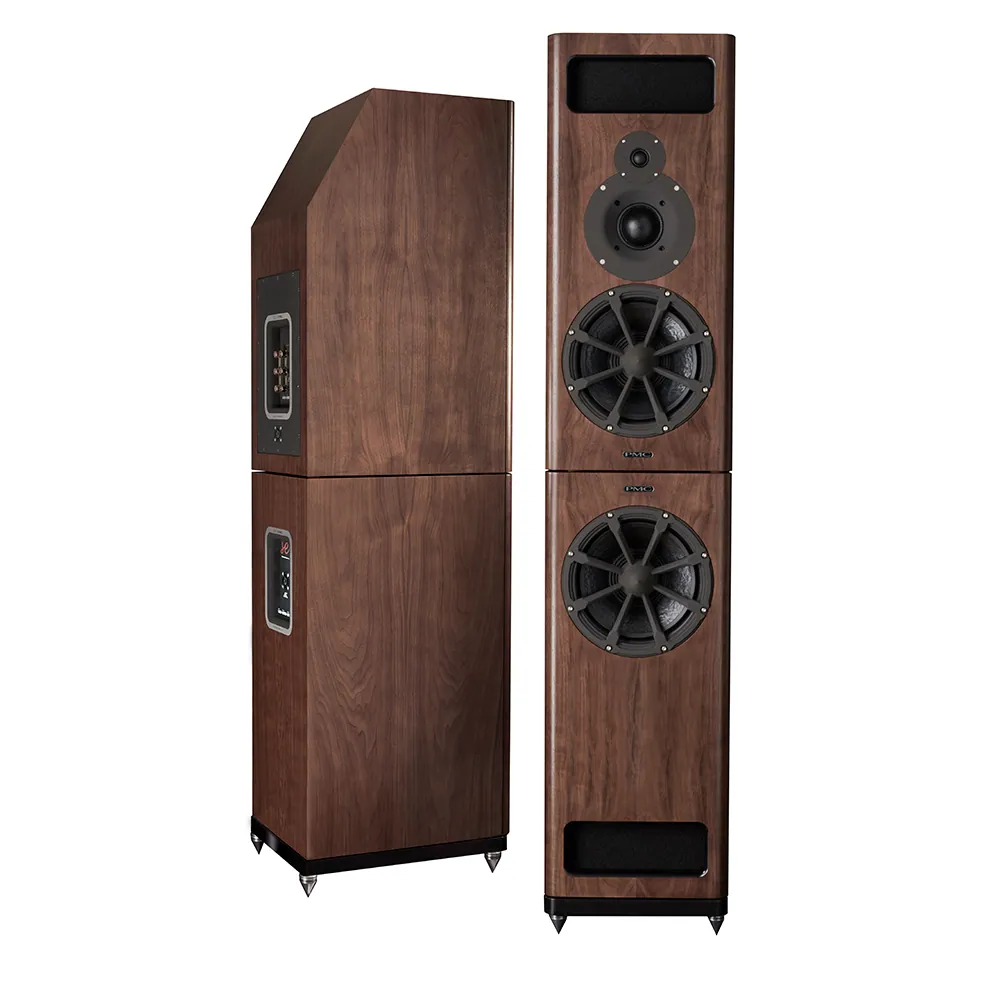

The MB2 XBD SE is a passive twin-cabinet monitor in PMC's SE range, built for extended bass depth beyond the standard MB2 SE.
fig. 01 · speakers
MB2 XBD SE
From PMC
The MB2 XBD SE splits the MB2 platform across two cabinets, adding an extended bass driver alongside the main enclosure.
It's the passive counterpart to the MB2 XBD-A SE, built for studios and systems already running external amplification.
It's built as a reference monitor for listeners who want MB2 clarity with added scale and low-frequency reach.
Specifications
| Frequency Response | 20Hz-25kHz |
|---|---|
| Sensitivity | 93dB 1w 1m |
| Recommended Amp Power | 10 - 800W |
| Effective ATL™ Length | 2 x 3m 10ft |
| Impedance | 4 Ohm |

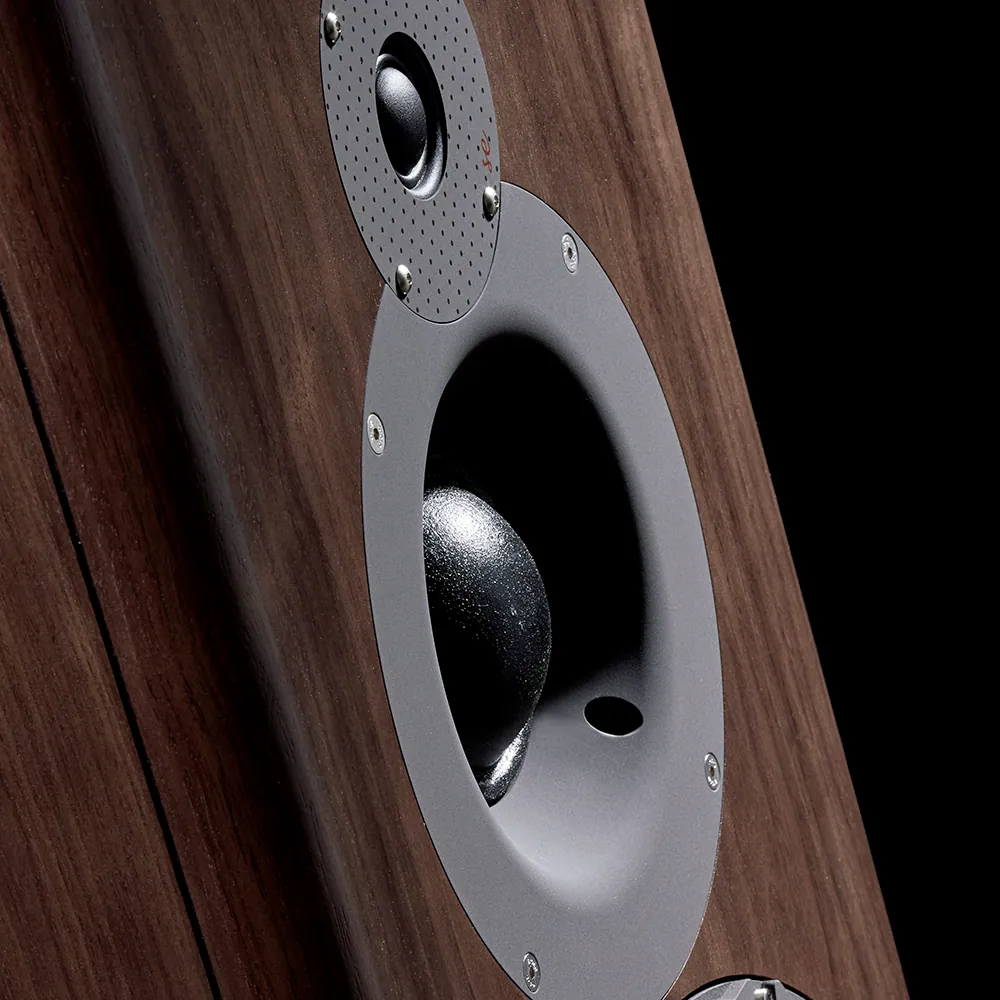

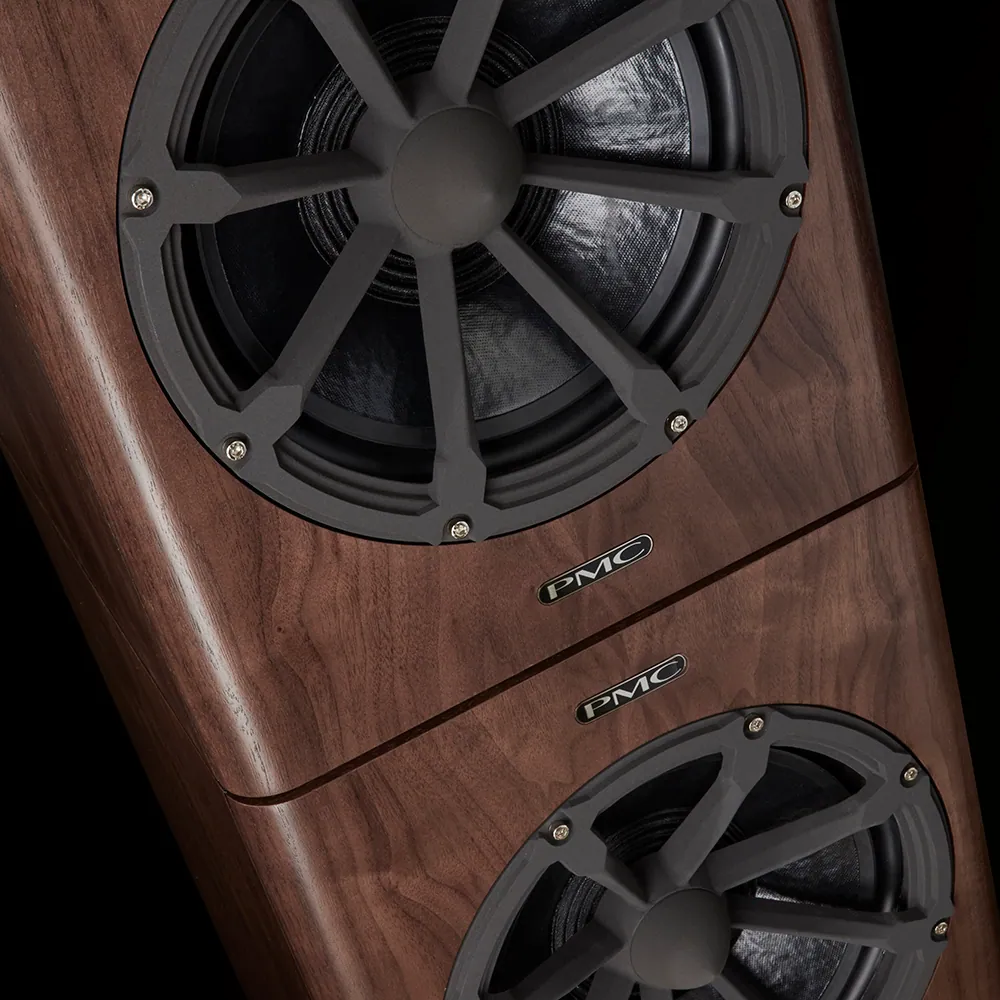

| Drive Units | LF - 2 x PMC 12” 310mm Radial™ driver HF - 27mm SONOLEX™ soft dome Ferrofluid cooled MF - PMC75 SE - 75mm soft dome |
| Crossover Frequency | 380Hz - 3.8kHz |
| Input Connectors | 3 pairs 4mm sockets (Tri-Wire or Tri-Amp) |
| Dimensions | H 1740mm 68.5” (+ 50mm spikes) W 380mm 14.96” D 535mm 21” |
| Weight | 116kg (255.7lbs) |
