ESL 2812
A four-panel QUAD electrostatic loudspeaker for full-range listening.

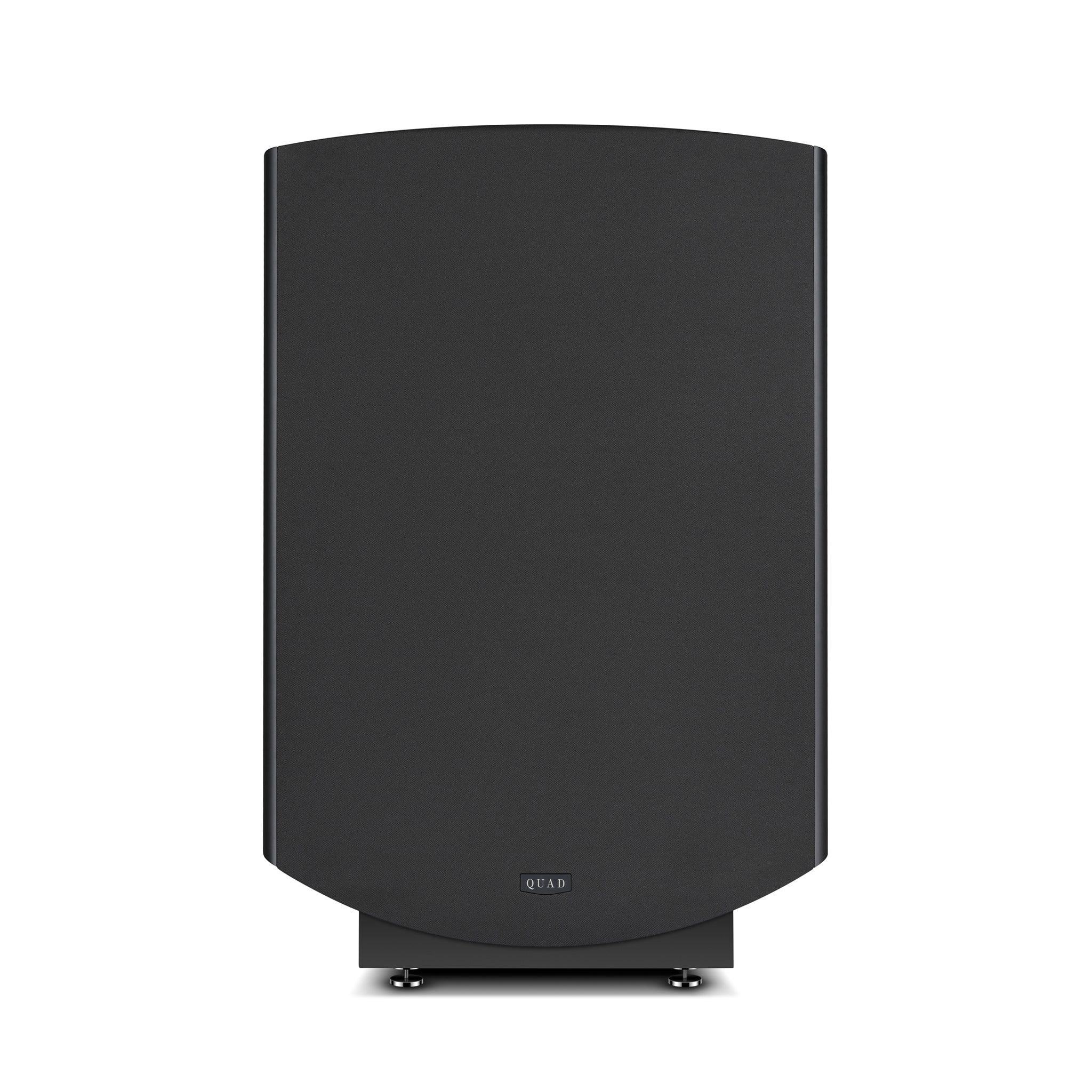

fig. 01 · speakers
ESL 2812
From Quad
ESL 2812 is the more compact model in QUAD’s classic electrostatic line. Its four-panel layout uses the familiar mylar diaphragm approach for listeners who want an ESL presentation in a smaller room footprint.
Specifications
| Model | ESL 2812 |
|---|---|
| Format | Floor standing dipole with 3 degree fixed tilt |
| Type | Multiple Electrostatic Drive Membranes |
| Time Delay | Progressive Concentric Rings |
| Chassis Structure | Heavy Duty Composite Aluminium / Steel |
| Panel Elements | 4 |
| Maximum Output | 2 N/m_ at 2m On Axis |
| Sensitivity | 1.5mbar Per Volt Referred To 1m |
| Impedance | 8 Ohms Nominal |
| Impedance Variation | 4-15 Ohms |
| Maximum Input | Continuous Input Voltage (RMS): 10V |
| Frequency response | 37Hz - 21kHz (-6dB) |
| Distortion (100dB at 1m) | Above 1000Hz 0.15% |
| Product type | electrostatic loudspeaker |
| Series | ESL |
