Quad · Speakers
ESL 2912
A larger QUAD electrostatic loudspeaker with six-panel scale.

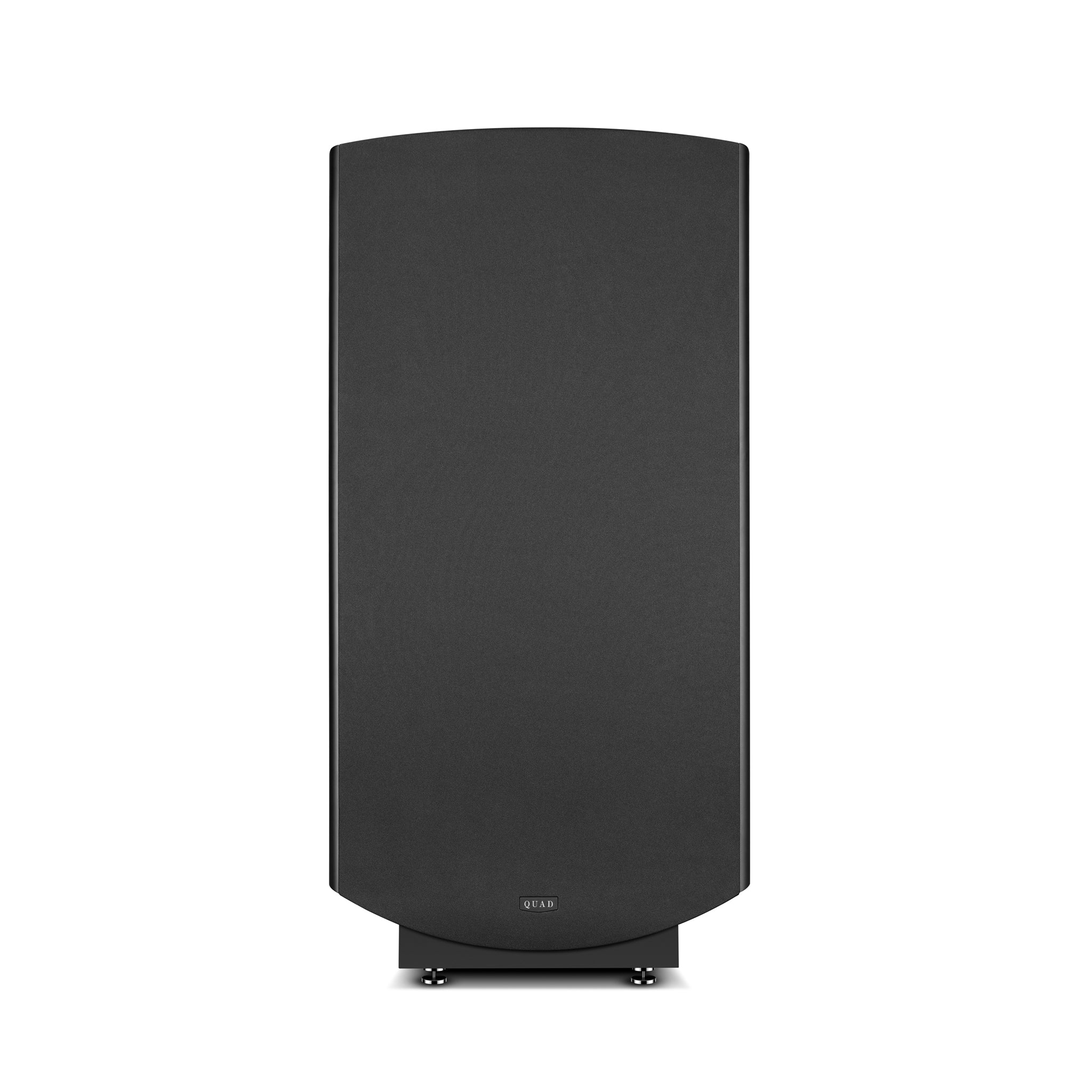

fig. 01 · speakers
ESL 2912
From Quad
ESL 2912 is the larger classic ESL model, using the mylar diaphragm approach and a broad panel layout. Choose it when the room can support a bigger QUAD electrostatic speaker with greater radiating area.
Specifications
| Model | ESL 2912 |
|---|---|
| Format | Floor Standing Dipole with 3 degree Fixed Tilt |
| Type | Multiple Electrostatic Drive Membranes |
| Time Delay | Progressive Concentric Rings |
| Chassis Structure | Heavy Duty Composite Aluminium Steel |
| Panel Elements | 6 |
| Maximum Output | 2 N/m_ at 2m On Axis |
| Sensitivity | 1.5mbar Per Volt Referred To 1m |
| Impedance Variation | 4-20 Ohms |
| Maximum Input | Continuous Input Voltage (RMS): 10V |
| Frequency response | 32Hz - 21kHz (-6dB) |
| Distortion (100dB at 1m) | Above 1000Hz 0.15% |
| Product type | electrostatic loudspeaker |
| Series | ESL |
