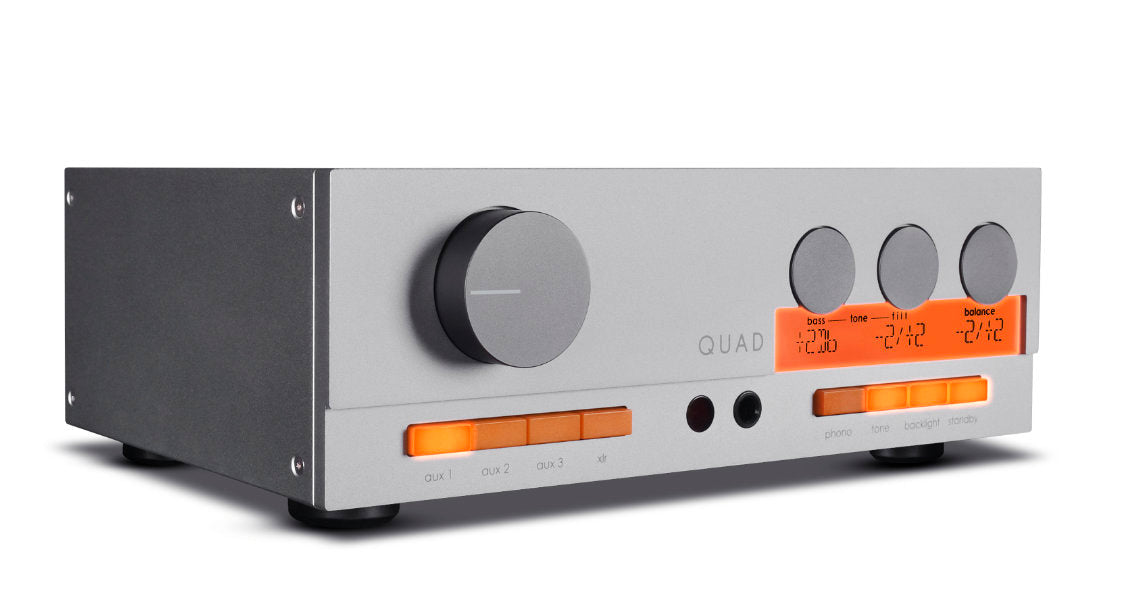

QUAD 33
A QUAD preamp with analogue inputs, output control, and compact 33 styling.
fig. 01 · preamplifiers
QUAD 33
From Quad

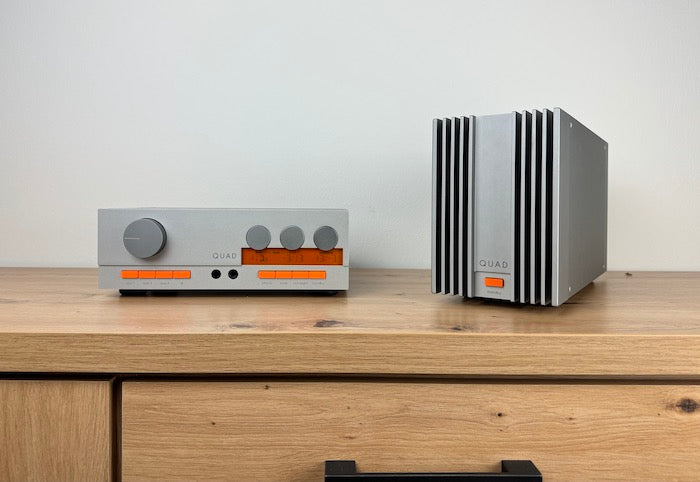

QUAD 33 brings the classic 33 control format back for modern analogue systems. It handles input selection, gain, output control, and system matching for use with the QUAD 303 or another suitable power amp.
Specifications
| Model | QUAD 33 |
|---|---|
| General description | Pre Amplifier |
| Design Philosophy and Core Technology | Illuminated LCD screenDedicated High Performance Low Noise MM/MC Phono stageClassic QUAD 'Tilt' adjustmentClassic QUAD / Tone ControlsDedicated Current-Feedback Headphone Amplifier |
| Inputs | 3 x RCA, 1 x Balanced XLR (pair), 1 x Phono (MM/MC switchable) |
| Outputs | 1 x RCA (AUX), 1 x XLR, 1 x RCA (Pre Out), 1 x Headphone, 2 x 12V Trigger Out |
| Gain | 0dB (Line / XLR)+46dB (Phono MM)+63.5dB (Phono MC) |
| Input Sensitivity (Vout=695mV) | 695mV (Line / XLR)3.2mV (Phono MM)460uV (Phono MC) |
| Input Impedance | 10k (Line / XLR)47k/100pF (Phono MM)100R/1.7nF (Phono MC) |
| Total harmonic distortion (THD) | < 0.01% (1kHz, 50mW) |
| Frequency response | 20Hz - 20kHz (+/-0.2dB) |
| Signal-to-noise ratio (S/N) | > 108dB (A-weighted, Line/XLR)> 82dB (A-weighted, Phono MM)> 74dB (A-weighted, Phono MC) |
| Output impedance | 2.35 ohms |
| Load impedance | 20 - 600 ohms |
| Standby power consumption | <0.5W |
| Net weight | 4kg |
| Gross weight | 4.96kg |
| Dimensions (W x H x D) | 258 x 94 x 165 |
| Carton Size (mm) (W x H x D) | 330 x 192 x 257 |
| Finish | Classic QUAD Grey |
| Power requirements | 220 - 240V - 50 / 60Hz100 - 120V - 50 / 60Hz |
| Standard accessories | Power Cord, Remote Control, User Manual. |
| Product type | stereo preamplifier |
| Series | 33 / 303 |
