S-1
A compact S Series bookshelf speaker with ribbon treble.

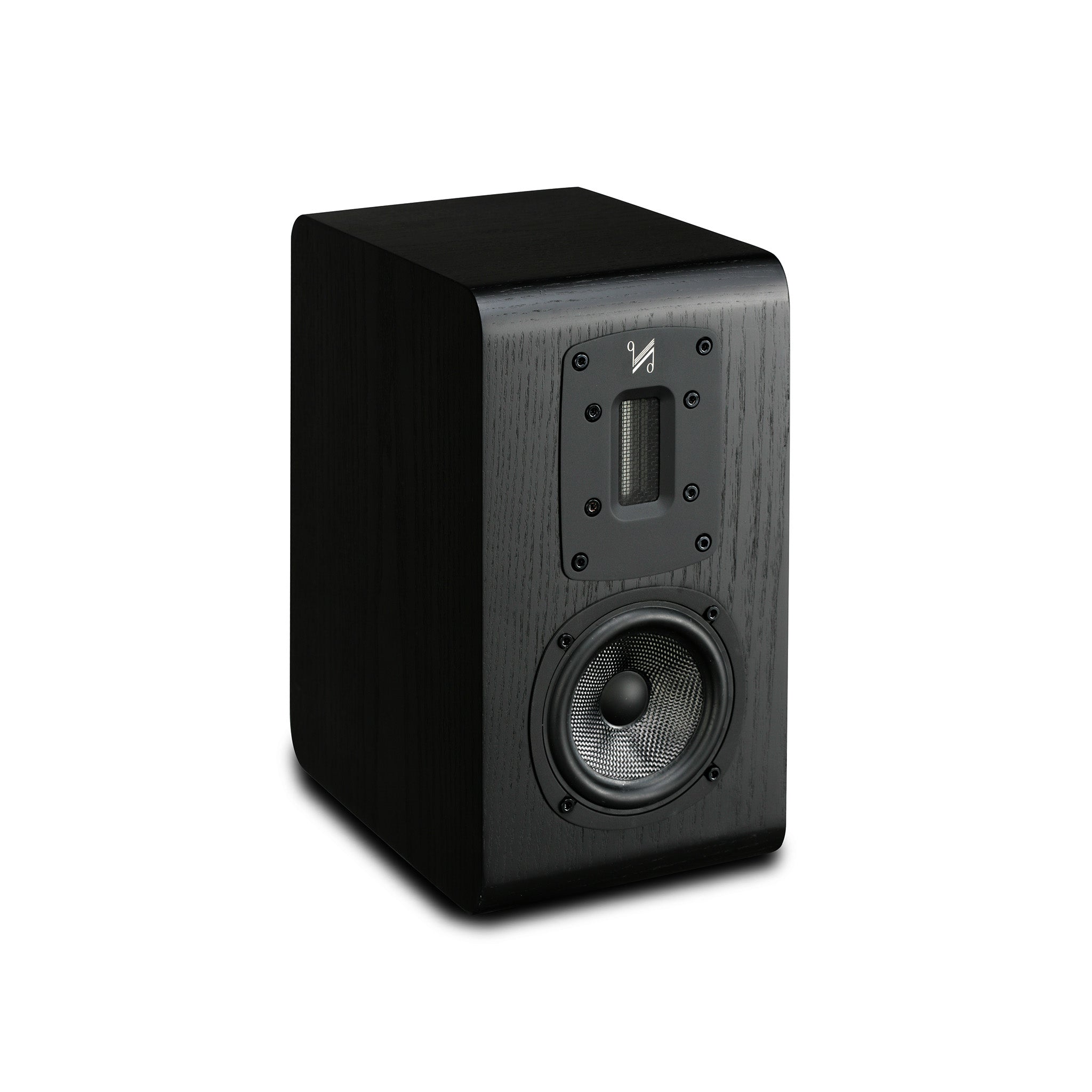

fig. 01 · speakers
S-1
From Quad
S-1 is a compact bookshelf loudspeaker in the QUAD S Series. It uses ribbon treble and a bass/mid driver for systems that need a small speaker with the S Series voicing.
Specifications
| Model | S-1 |
|---|---|
| General description | 2-way bookshelf speaker |
| Enclosure type | Vented box loudspeaker |
| Transducer complement | 2-way |
| Bass / Mid driver | 4"(100mm)woven Kevlar® cone |
| Treble driver | 45 x 12mm true ribbon |
| Sensitivity (2.83V @ 1m) | 84dB |
| Recommended amplifier power | 25-150W |
| Nominal impedance | 8Ω Compatible |
| Minimum impedance | 4.2Ω |
| Frequency response (+/-3dB) | 58Hz ~ 20kHz |
| Bass extension (-6dB) | 55Hz |
| Crossover frequency | 3.2kHz |
| Cabinet Volume (in litres) | 6.7L |
| Dimensions (H x W x D) | 285 x 156 x (240 + 30) mm |
| Weight | 5.2kg |
| Product type | bookshelf loudspeaker |
| Series | S Series |
