Quad · Speakers · Floor-standing Speakers
S-5
The larger S Series floorstanding speaker with ribbon treble.

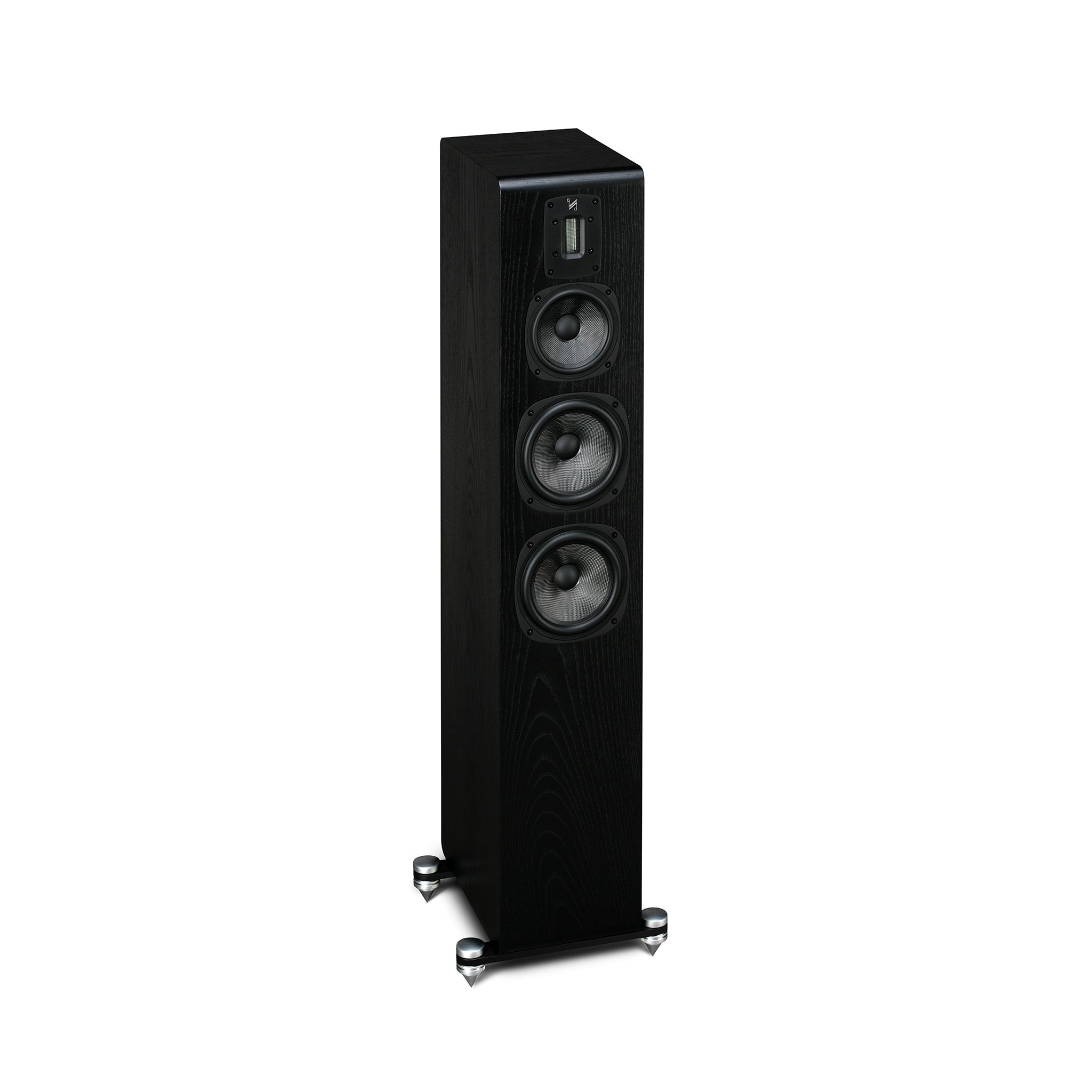

fig. 01 · speakers
S-5
s-5
From Quad
S-5 is the larger floorstanding model in the S Series, using ribbon treble with bass and midrange drivers. It is the stronger S Series option for rooms that can support a larger cabinet.
Specifications
| Model | s-5 |
|---|---|
| General description | 3-way floorstanding speaker |
| Enclosure type | ABR |
| Transducer complement | 3-way |
| ABR | 3 x 165mm |
| Bass driver | 2 x 165mm Woven Kevlar® |
| Midrange driver | 100mm Woven Kevlar® |
| Treble driver | 45 x 12mm true ribbon |
| Sensitivity (2.83V @ 1m) | 90dB |
| Recommended amplifier power | 40-200W |
| Nominal impedance | 6Ω |
| Minimum impedance | 3.2Ω |
| Frequency response (+/-3dB) | 42Hz ~ 23kHz |
| Bass extension (-6dB) | 35Hz |
| Crossover frequency | 570Hz & 3.2kHz |
| Cabinet Volume (in litres) | 72.4L |
| Dimensions (H x W x D) | (1070+55) x 205 x (330+30)mm |
| Weight | 25.32kg each |
| Product type | floorstanding loudspeaker |
| Series | S Series |
