An S Series centre speaker for matching QUAD home-cinema systems.

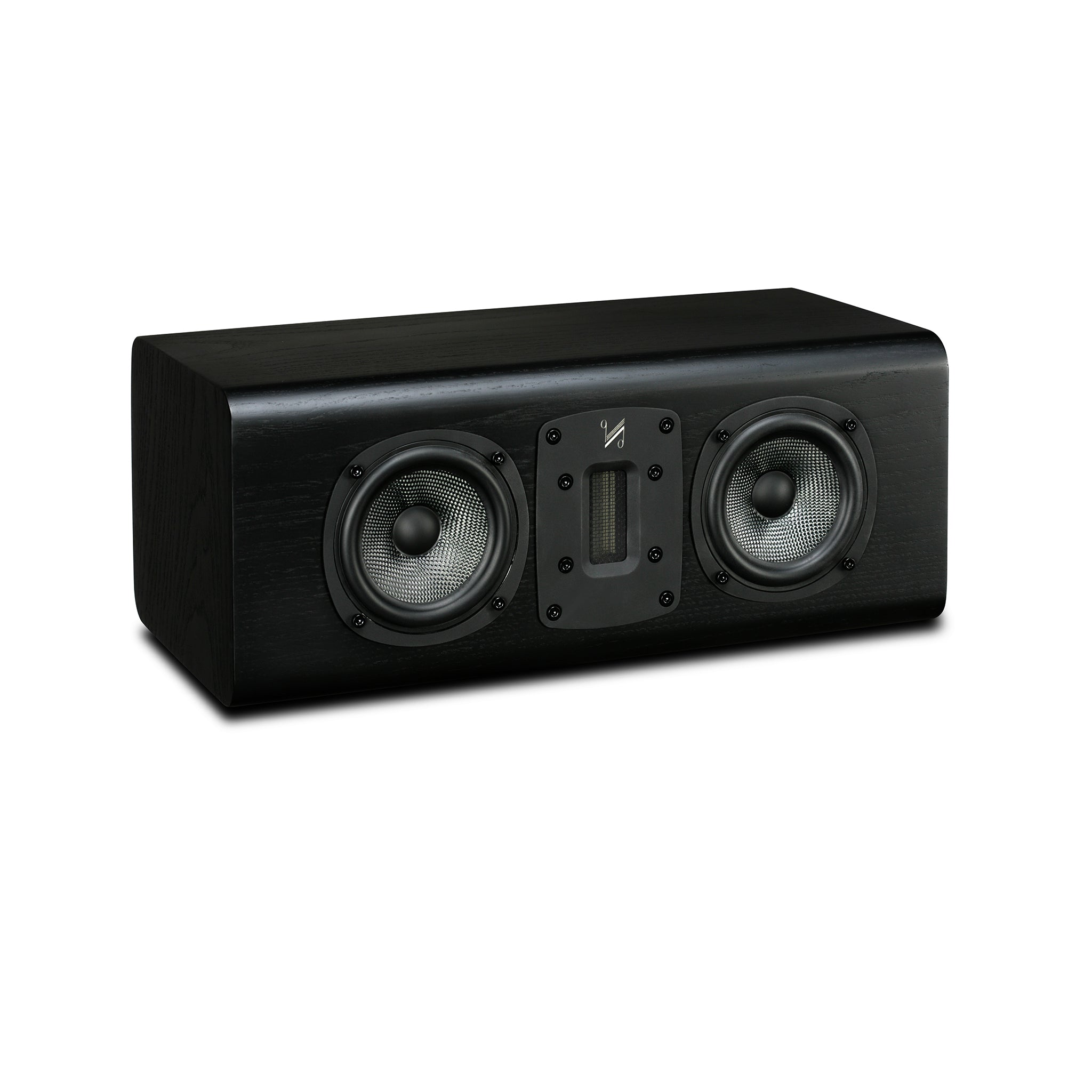

fig. 01 · speakers
S-C
From Quad
S-C is a centre-channel speaker for systems built around QUAD S Series loudspeakers. It uses ribbon treble and bass/midrange drivers so the front stage can stay matched across left, centre, and right channels.
Specifications
| Model | S-C |
|---|---|
| General description | 2-way centre speaker |
| Enclosure type | vented box loudspeaker |
| Transducer complement | 2-way |
| Bass / Midrange driver | 2 x 100mm Woven Kevlar® |
| Treble driver | 45 x 12mm true ribbon |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 86dB |
| Recommended amplifier power | 25-150W |
| Nominal impedance | 8Ω |
| Minimum impedance | 4.4Ω |
| Frequency response (+/-3dB) | 65Hz ~ 20kHz |
| Bass extension (-6dB) | 60Hz |
| Crossover frequency | 2.8kHz |
| Cabinet Volume (in litres) | 12.8L |
| Dimensions (H x W x D) | (165) x 400 x (200+30)mm |
| Weight | 6.3kg |
| Product type | centre speaker |
| Series | S Series |
