Quad · Speakers
S-C2
A larger S Series centre speaker for matched front-channel playback.

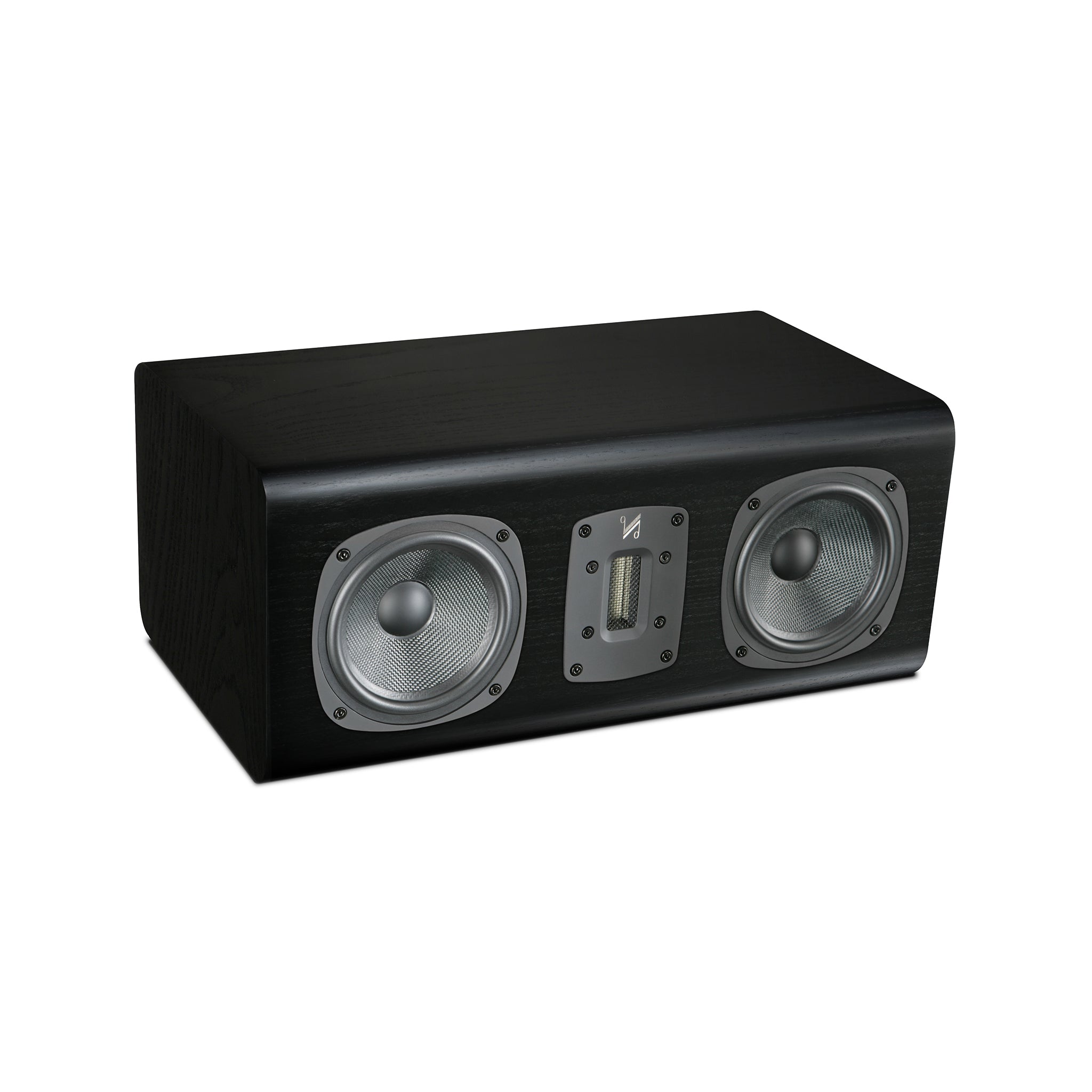

fig. 01 · speakers
S-C2
From Quad
S-C2 is the larger centre-channel speaker in the S Series. Use it with S Series left and right speakers when the front stage needs a centre channel with more cabinet scale.
Specifications
| Model | S-C2 |
|---|---|
| General description | 2-way centre speaker |
| Enclosure type | vented box loudspeaker |
| Transducer complement | 2-way |
| Bass / Midrange driver | 2 x 125mm Woven Kevlar® |
| Treble driver | 12 x 45mm true ribbon |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 89dB |
| Recommended amplifier power | 25-150W |
| Nominal impedance | 8Ω |
| Minimum impedance | 5.6Ω |
| Frequency response (+/-3dB) | 55Hz ~ 20kHz |
| Bass extension (-6dB) | 50Hz |
| Crossover frequency | 3kHz |
| Cabinet Volume (in litres) | 15.8L |
| Dimensions (H x W x D) | 190 x 460 x (280+30)mm |
| Weight | 9.5kg |
| Product type | centre speaker |
| Series | S Series |
