Quad · Integrated Amplifiers
VENA II Play
A Vena stereo amp with DTS Play-Fi streaming and DAC support.
fig. 01 · integrated amplifiers

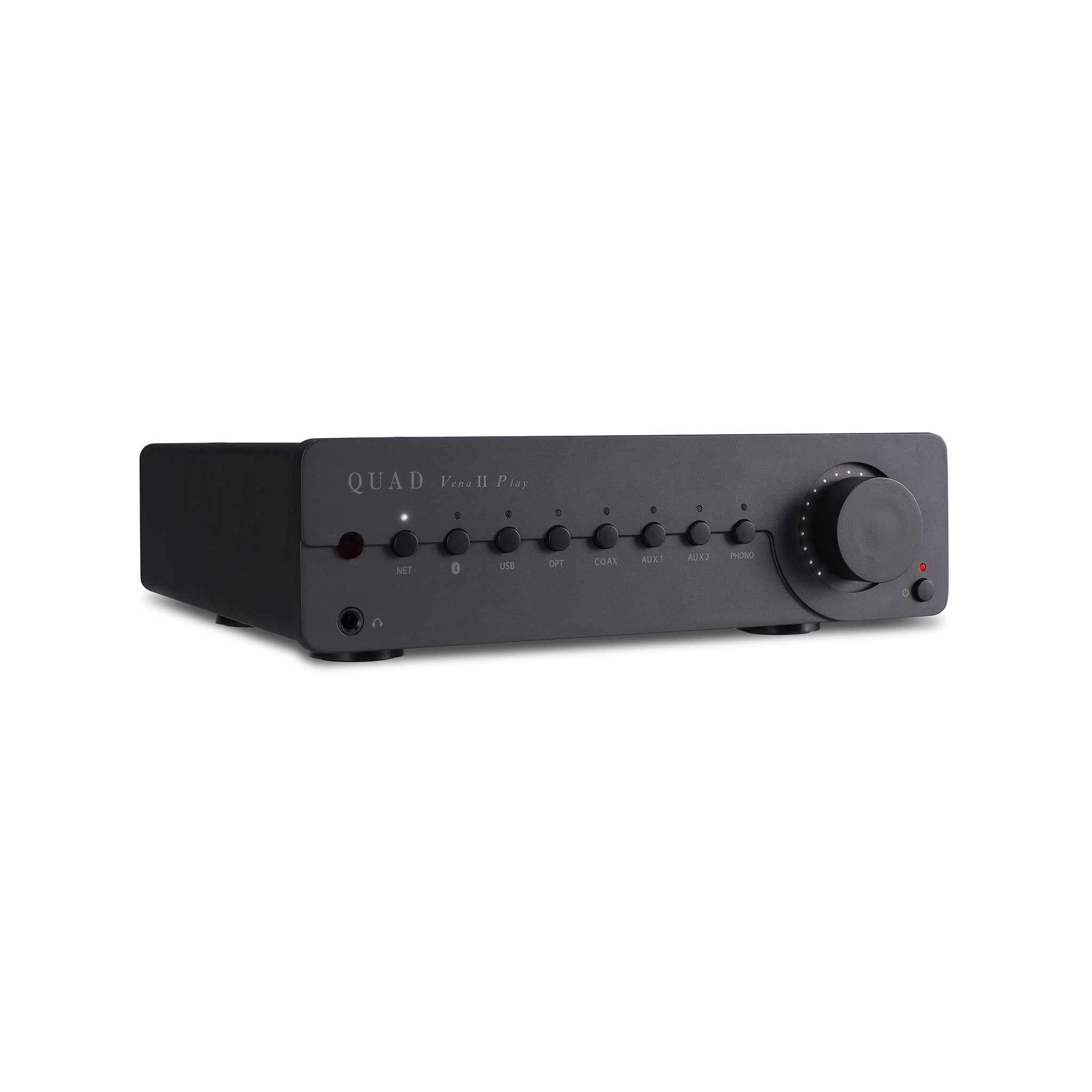

VENA II Play
From Quad
VENA II Play adds DTS Play-Fi streaming to the Vena platform while keeping analogue input, phono input, digital input, DAC conversion, and speaker outputs. It works for compact systems built around both local sources and wireless playback.
Specifications
| Model | VENA II Play |
|---|---|
| DTS Play-Fi Technology | Dual - band 802.11a/b/g/n |
| Input Sensitivity (AUX) | 525mV |
| Input Sensitivity (Phono, MM) | 2.5mV |
| Input Impedance | 10Kohm (AUX) , 47Kohm // 100pF (Phono) |
| Inputs | 2 x AUX , 1x Phono (MM) |
| Output | 1 x Pre-Out (RCA) |
| Frequency response | 20Hz-20KHz (+/- 0.5dB) |
| Total harmonic distortion (THD) | < 0.005% (30W, 8ohm) |
| Signal-to-noise ratio | > 108dB (A-Weighted) |
| Rated power | 2 x 45W (8ohm) / 2 x 65W (4ohm) |
| DAC | ESS Sabre32 ES9018K2M chip |
| Sampling Frequency | Optical, coaxial: 44.1kHz ---192kHz ; |
| Digital Input | 1 x Coaxial, 1 x Toslink Optical |
| Size (W X H X D) | 301 x 95 x 313 mm |
| Net weight | 6.1kg |
| Product type | streaming stereo amplifier |
| Series | Vena |
