Z-1
A Z Series bookshelf speaker with ribbon treble and curved lacquer cabinet.

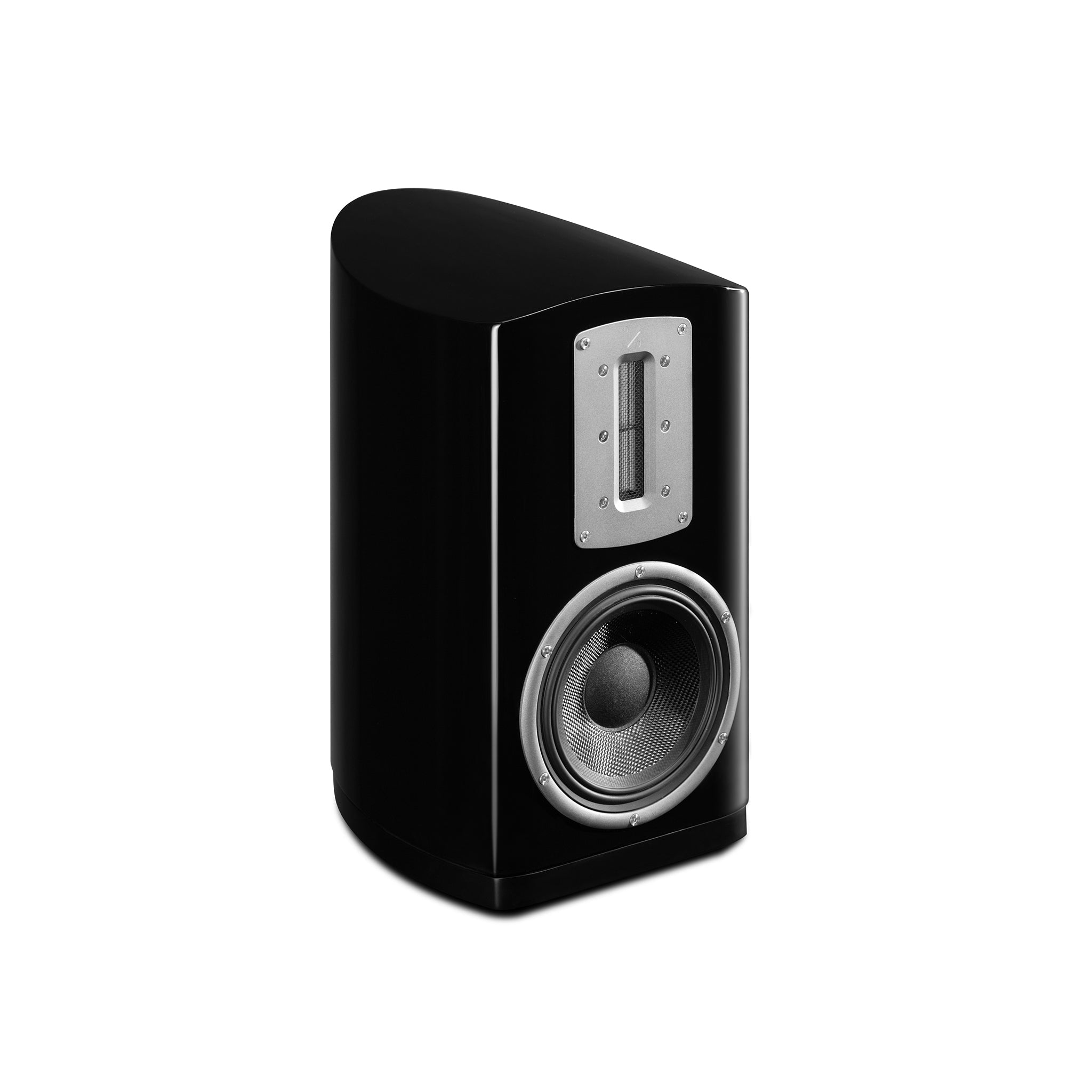

fig. 01 · speakers
Z-1
From Quad
Z-1 is a compact bookshelf loudspeaker in the Z Series, with ribbon treble and a curved lacquer cabinet. It is the smaller Z Series option for rooms where cabinet size matters.
Specifications
| Model | Z-1 |
|---|---|
| General description | bookshelf |
| Enclosure type | bass reflex |
| Transducer complement | 2-way |
| Bass driver | 150mm glass fibre |
| Treble driver | 90x12mm true ribbon |
| AV shield | No |
| Sensitivity (1W @ 1m) | 86db |
| Recommended amplifier power | 40-150w |
| Peak SPL | 102dB |
| Nominal impedance | 8Ω |
| Minimum impedance | 4.6Ω |
| Frequency response (+/-3dB) | 56Hz - 20kHz |
| Bass extension (-6dB) | 48Hz |
| Crossover frequency | 3.4kHz |
| Cabinet Volume (in litres) | 10L |
| Dimensions | 383 x 219 x 283 |
| Weight | 6.5kg |
| Product type | bookshelf loudspeaker |
| Series | Z Series |
