Quad · Speakers · Bookshelf Speakers

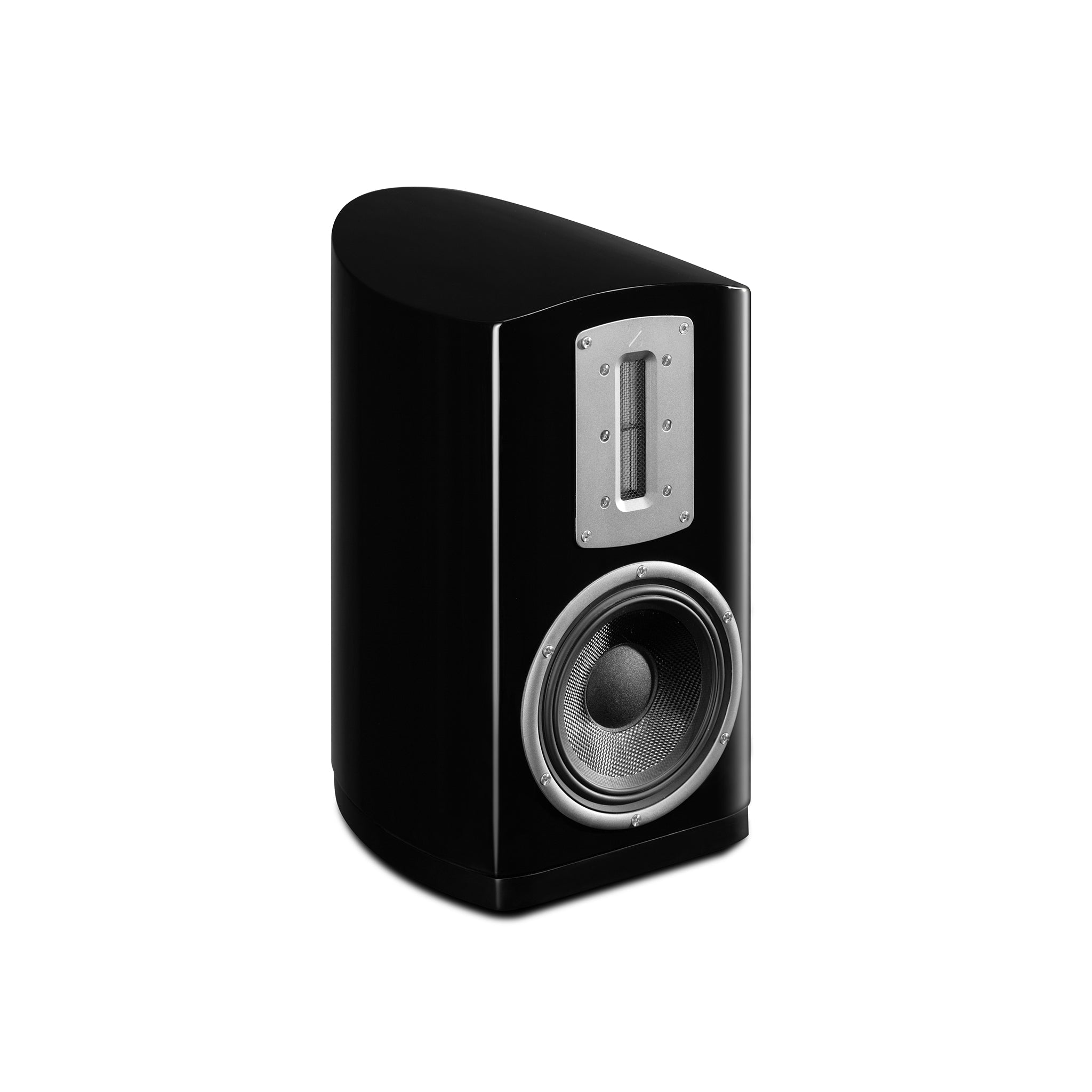

Z-2
A larger Z Series bookshelf speaker with ribbon treble.
fig. 01 · speakers
Z-2
From Quad
Z-2 is the larger bookshelf model in the Z Series, using ribbon treble and a larger cabinet than the Z-1. It suits standmount systems that need more scale from the same speaker family.
Specifications
| Model | Z-2 |
|---|---|
| General description | bookshelf |
| Enclosure type | bass reflex |
| Transducer complement | 2-way |
| Bass driver | 175mm glass fibre |
| Treble driver | 90x12mm true ribbon |
| AV shield | No |
| Sensitivity (1W @ 1m) | 84db |
| Recommended amplifier power | 40-200w |
| Nominal impedance | 8Ω |
| Minimum impedance | 4.6Ω |
| Frequency response (+/-3dB) | 50Hz - 20kHz |
| Bass extension (-6dB) | 45Hz |
| Crossover frequency | 3.4kHz |
| Cabinet Volume (in litres) | 15L |
| Dimensions (mm) | 421 x 243 x 329 |
| Weight | 9kg |
| Product type | bookshelf loudspeaker |
| Series | Z Series |
