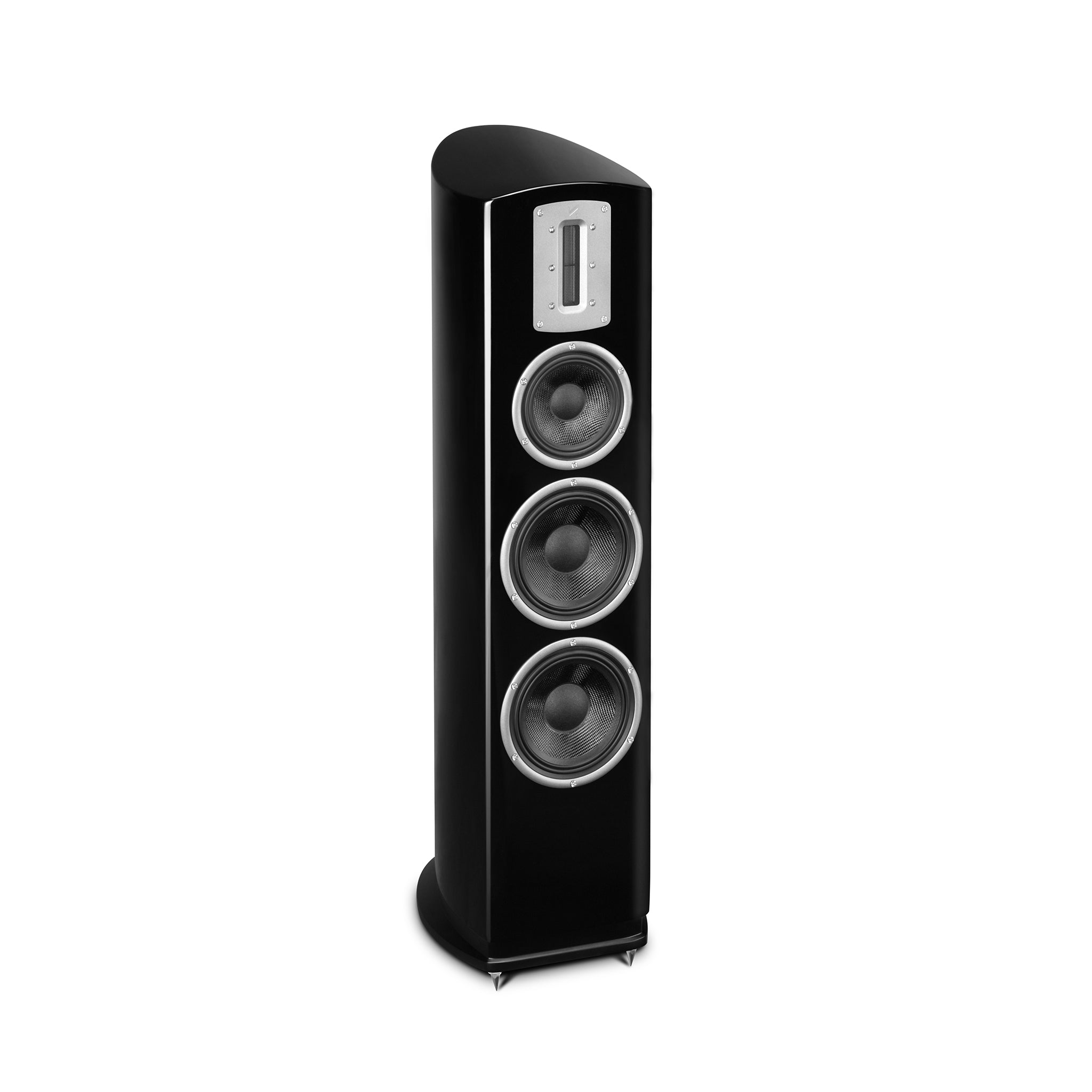

Z-3
A Z Series floorstanding speaker with ribbon treble and midrange driver.
fig. 01 · speakers
Z-3
From Quad
Z-3 is a floorstanding Z Series loudspeaker with ribbon treble, bass driver, and midrange driver. It is built for rooms that need a tower speaker from the Z Series line.
Specifications
| Model | Z-3 |
|---|---|
| General description | Floor-standing |
| Enclosure type | bass reflex |
| Transducer complement | 3-way |
| Bass driver | 2 x 175mm glass fibre |
| Midrange driver | 150mm glass fibre |
| Treble driver | 90x12mm true ribbon |
| AV shield | No |
| Sensitivity (1W @ 1m) | 89db |
| Recommended amplifier power | 60-250W |
| Nominal impedance | 6Ω |
| Minimum impedance | 3.8Ω |
| Frequency response (+/-3dB) | 50Hz - 20kHz |
| Bass extension (-6dB) | 45Hz |
| Crossover frequency | 450Hz & 3.6kHz |
| Cabinet Volume (in litres) | 34L |
| Dimensions (mm) | 965 x 267 x 340mm |
| Product type | floorstanding loudspeaker |
| Series | Z Series |
