Z-4
The larger Z Series floorstanding speaker with ribbon treble.

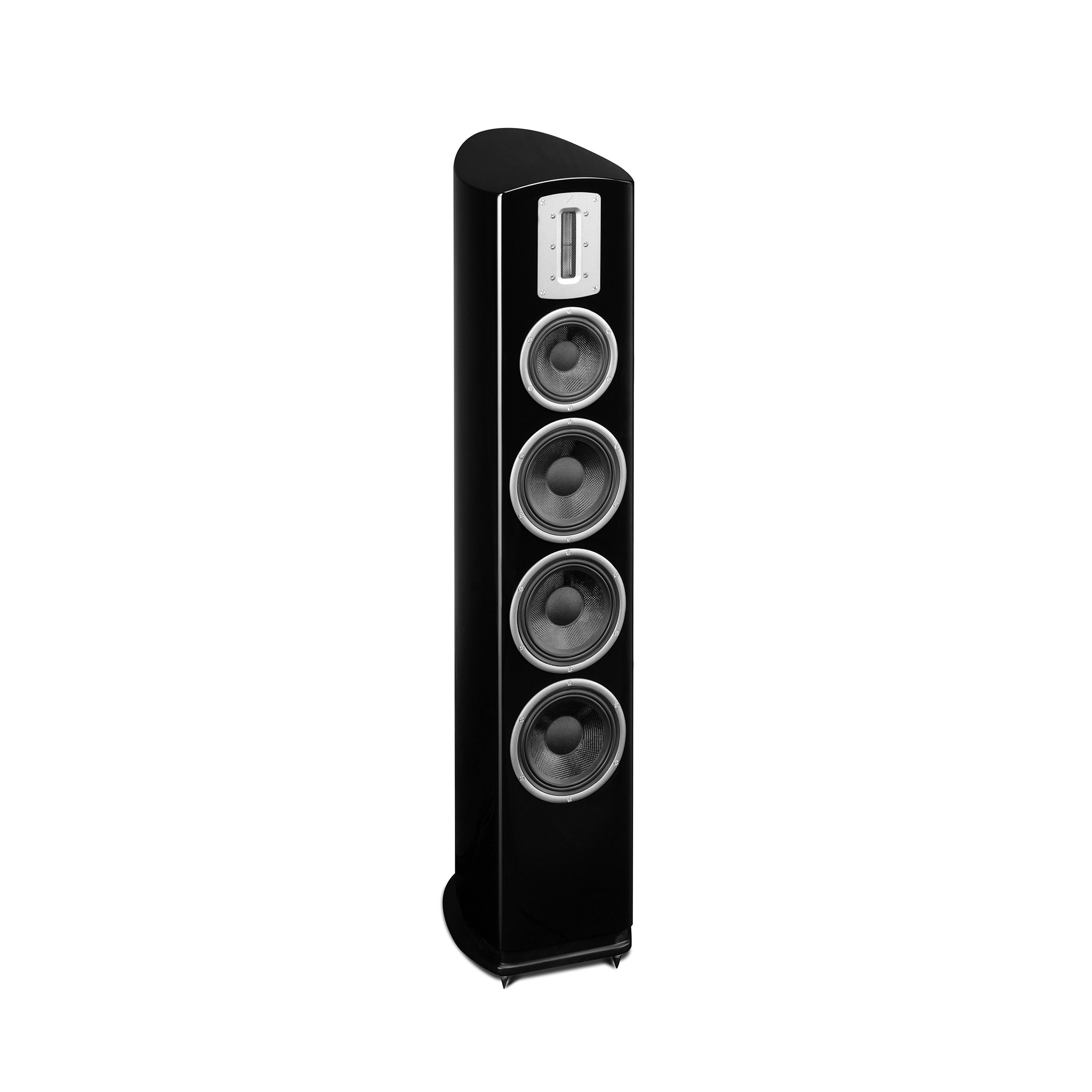

fig. 01 · speakers
Z-4
From Quad
Z-4 is the larger Z Series floorstanding loudspeaker, with ribbon treble plus bass and midrange drivers. It is the bigger tower choice in the Z Series range.
Specifications
| Model | Z-4 |
|---|---|
| General description | Floor-standing |
| Enclosure type | bass reflex |
| Bass Driver | 3 x 165mm glass fibre |
| Transducer complement | 3-way |
| Midrange driver | 150mm glass fibre |
| Treble driver | 90x12mm true ribbon |
| AV shield | No |
| Sensitivity (1W @ 1m) | 90db |
| Recommended amplifier power | 60-250w |
| Nominal impedance | 4Ω |
| Minimum impedance | 3.6Ω |
| Frequency response (+/-3dB) | 47Hz - 20kHz |
| Bass extension (-6dB) | 40Hz |
| Crossover frequency | 300Hz & 3.5kHz |
| Cabinet Volume (in litres) | 43L |
| Dimensions (mm) | 1175 x 267 x 340 |
| Product type | floorstanding loudspeaker |
| Series | Z Series |
