Z-C
A Z Series centre speaker for systems using matching Z loudspeakers.

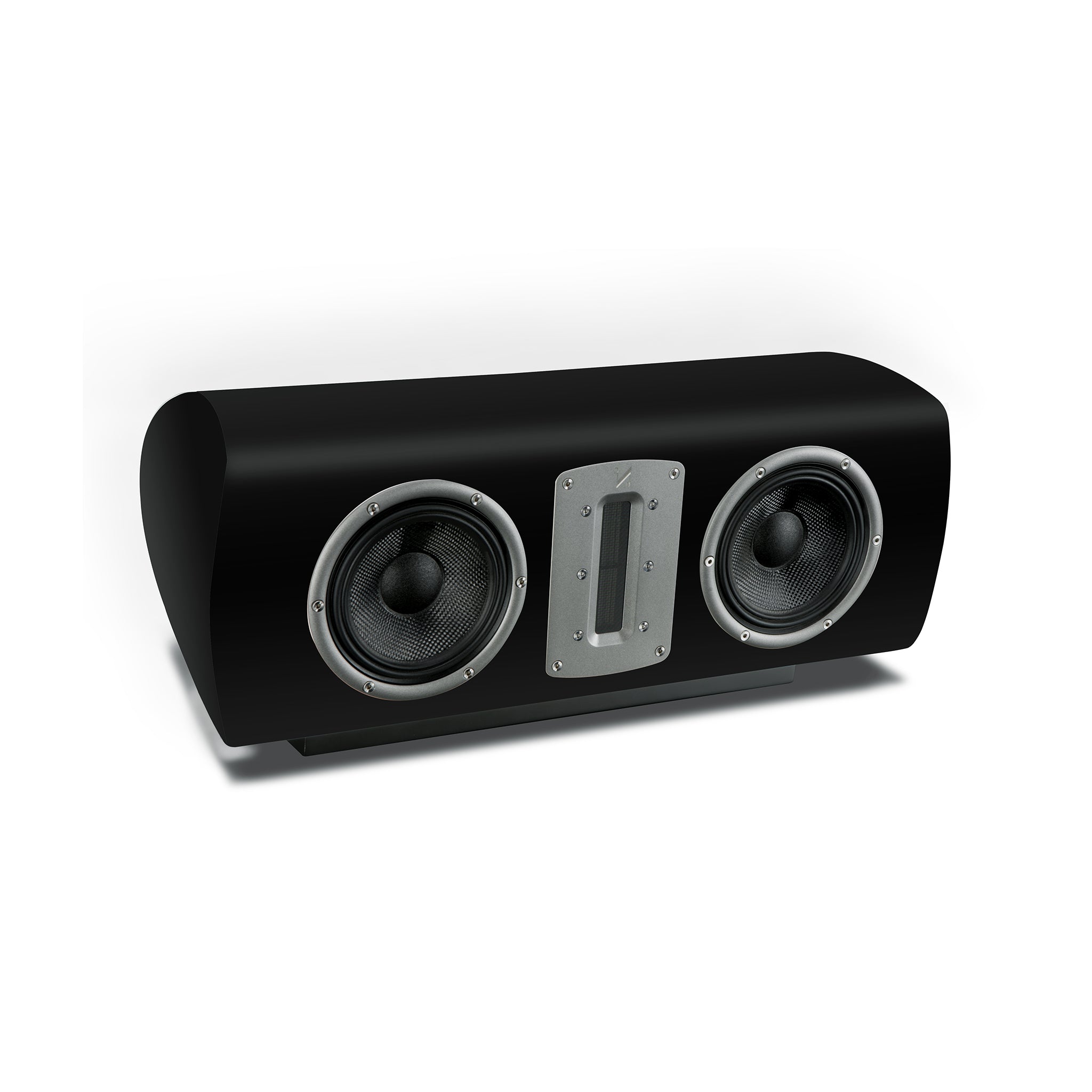

fig. 01 · speakers
Z-C
From Quad
Z-C is the centre-channel speaker for Z Series systems. It uses the same family approach as the bookshelf and floorstanding Z models, giving a matching centre option for multi-channel setups.
Specifications
| Model | Z-C |
|---|---|
| General description | Centre Speaker |
| Enclosure type | Bass Reflex |
| Transducer complement | 2-way |
| Midrange driver | 150mm Woven Kevlar Cone x2 |
| Treble driver | 90 x 12mm true ribbon |
| AV shield | No |
| Sensitivity (1W @ 1m) | 91db |
| Recommended amplifier power | 40-200W |
| Peak power handling | 150w |
| Peak SPL | 102dB |
| Nominal impedance | 8Ω Compatible |
| Minimum impedance | 4.0Ω |
| Frequency response (+/-3dB) | 65Hz - 20kHz |
| Bass extension (-6dB) | 60Hz |
| Crossover frequency | 2.7KHz |
| Cabinet Volume (in litres) | 15.5L |
| Height (on plinth & spikes) | 232mm |
| Width | 545mm |
| Depth | 275mm |
| Carton size | 650mmx360mmx350mm |
| Net weight | 11 kg/pcs |
| Finish | Black Piano / Rosewood Piano/White Piano |
| Standard accessories | stand base, user manual, certificate |
| Product type | centre speaker |
| Series | Z Series |
