Rotel · Integrated Amplifiers
A10MKII
The A10MKII is a 50W Class AB stereo amplifier with Bluetooth, a phono stage, and digital inputs.
fig. 01 · integrated amplifiers
A10MKII
From Rotel

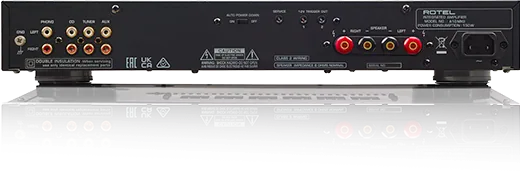

The A10MKII outputs 50W per channel from a Rotel-built toroidal transformer. It takes analog RCA, optical, coaxial, and aptX/AAC Bluetooth inputs, plus a moving-magnet phono stage.

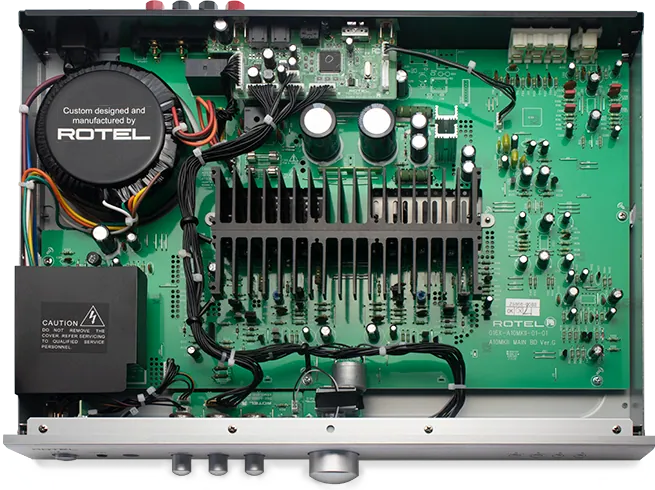

The Class AB amplifier section runs through the same circuit topology Rotel uses across the line.
Specifications
| Dimensions (W × H × D) | 430 × 73 × 347mm17” x 2 7/8” x 13 5/8” |
|---|---|
| Front Panel Height | 60 mm (2 3/8”) |
| Power Requirements | 120V, 60Hz |
| Power Consumption | 150W |
| Standby Power Consumption | <0.5W |
| Net Weight | 6.6 kg, 14.5 lbs |
| BTU Rating (4Ω, 1/8th power) | 450 BTU/h |
| Power Output (FTC) | 53 W/Ch (4 Ω) |
| Maximum Power Output (Non FTC) | 50 W/Ch (8 Ω) |
| Continuous Power Output (Non FTC) | 60 W/Ch (4Ω) |
| Total Harmonic Distortion (THD) | <0.03% |
| Frequency Response | Line Level Inputs: 10Hz - 100k Hz, |
| S/N Ratio (IHF "A" Weighted) | Line Level Inputs: 90 dB (Max Volume) |
