Rotel · Integrated Amplifiers
A11 Tribute
The A11 Tribute is a 50W Class AB stereo amplifier developed with Ken Ishiwata, featuring upgraded components and tuning.
fig. 01 · integrated amplifiers
A11 Tribute
From Rotel
The A11 Tribute was developed with audio engineer Ken Ishiwata as a tribute to his legacy. It outputs 50W per channel of Class AB power.

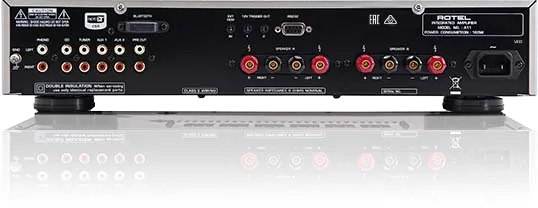

Upgraded components and tuning of critical circuits aim for a richer, more expressive sound than the standard A11. Inputs cover analog, digital, Bluetooth, and a phono stage.
Specifications
| Dimensions (W × H × D) | 430 × 93 × 345mm17" × 3.6" × 13.5" |
|---|---|
| Front Panel Height | 80mm (3.15") |
| Power Requirements | 120V, 60Hz |
| Power Consumption | 160W |
| Standby Power Consumption | <0.5W |
| Net Weight | 6.85kg (15lbs.) |
| BTU Rating (4Ω, 1/8th power) | 479 BTU/h |
| Power Output | 50W/Ch (8Ω) |
| Total Harmonic Distortion (THD) | (20Hz–20kHz) <0.03% |
| Frequency Response | Line Level Inputs: 10Hz - 100kHz, ±0.5dB |
| S/N Ratio (IHF "A" Weighted) | Line Level Inputs: 100dB |
