Rotel · Integrated Amplifiers
A11MKII
The A11MKII is a Class AB stereo amplifier built around Rotel's toroidal power supply with Bluetooth and digital inputs.
fig. 01 · integrated amplifiers
A11MKII
From Rotel

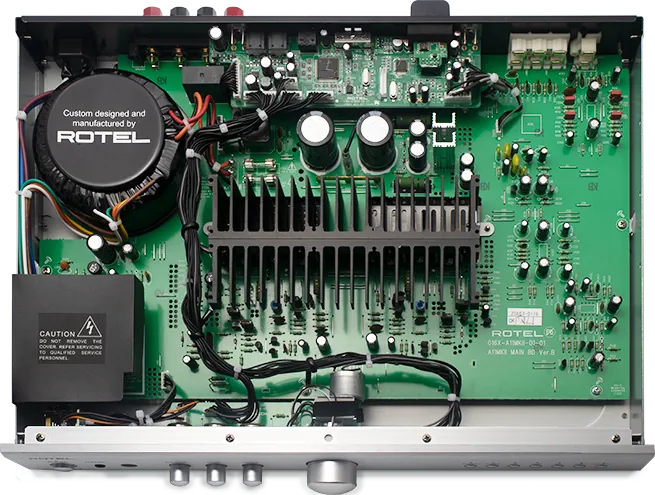

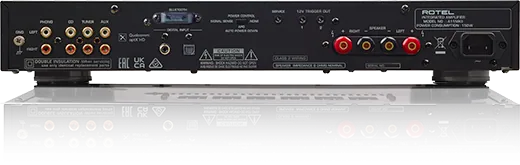

The A11MKII delivers Class AB power with a Rotel-built toroidal transformer. Digital inputs include optical, coaxial, USB, and aptX/AAC Bluetooth. A moving-magnet phono stage covers vinyl.
It sits in the middle of Rotel's stereo amplifier lineup, between the A10MKII and A12MKII.
Specifications
| Dimensions (W × H × D) | 430 × 73 × 347 mm17” x 2 7/8” x 13 5/8” |
|---|---|
| Front Panel Height | 60 mm (2 3/8”) |
| Power Requirements | 120 V, 60 Hz |
| Power Consumption | 150 W |
| Standby Power Consumption | <0.5 W |
| Net Weight | 6.8 kg (15 lbs.) |
| BTU Rating (4Ω, 1/8th power) | 450 BTU/h |
| Power Output (FTC) | 62 W/Ch (8 Ohms) |
| Power Output (Non FTC) | 50 W/Ch (8 Ohms) |
| Total Harmonic Distortion (THD) | <0.03% |
| Frequency Response | Line Level Inputs: |
| S/N Ratio (IHF "A" Weighted) | Line Level Inputs: 90 dB (Max Volume) |
