Rotel · Integrated Amplifiers
A12MKII
The A12MKII is a 60W Class AB stereo amplifier with a DAC, phono stage, Bluetooth, and PC-USB input.
fig. 01 · integrated amplifiers
A12MKII
From Rotel

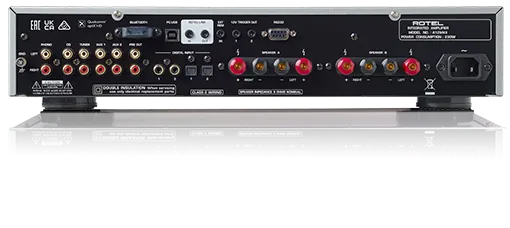

The A12MKII delivers 60W per channel into 8 ohms. Sources include MM phono, analog RCA, digital (optical, coaxial), PC-USB, and aptX/AAC Bluetooth.
The built-in DAC handles high-resolution files through the USB input. A subwoofer output is included for systems with a powered sub.
Specifications
| Dimensions (W × H × D) | 430 × 93 × 345 mm17" × 3.6" × 13.5" |
|---|---|
| Front Panel Height | 80 mm (3.15") |
| Power Requirements | 120 V, 60 Hz |
| Power Consumption | 230 W |
| Standby Power Consumption | <0.5 W |
| Net Weight | 8.76 kg (19.31 lbs.) |
| BTU Rating (4 Ω, 1/8th power) | 632 BTU/h |
| Power Output (FTC) | 75 W/Ch (8 Ω) |
| Maximum Power Outpu t (Non FTC) | 120 W/Ch (4 Ω) |
| Continuous Power Output (Non FTC) | 60 W/Ch (8 Ω) |
| Total Harmonic Distortion (THD) | <0.018% |
| Frequency Response | Line Level Inputs: |
| S/N Ratio (IHF "A" Weighted) | Line Level Inputs: 100 dB |
