Rotel · Integrated Amplifiers
A14MKII
The A14MKII is an 80W Class AB stereo amplifier with MQA-capable USB, Bluetooth, and a phono stage.
fig. 01 · integrated amplifiers
A14MKII
From Rotel

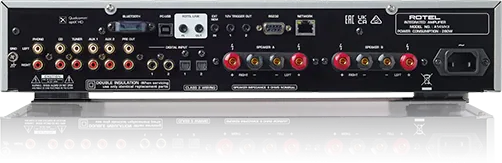

The A14MKII puts out 80W per channel of Class AB amplification. Digital inputs include optical, coaxial, and PC-USB with MQA support. Bluetooth runs aptX and AAC.

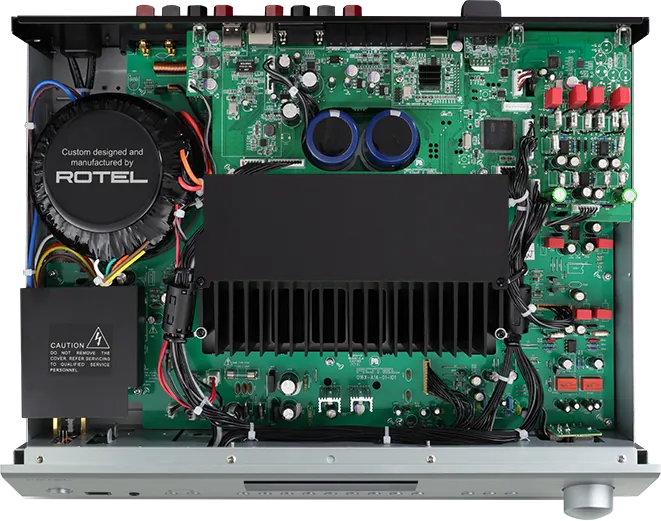

Analog inputs include RCA and a moving-magnet phono stage. The power supply uses tuned capacitors and a large toroidal transformer.
Specifications
| Dimensions (W × H × D) | 430 × 93 × 345 mm17" × 3.6" × 13.5" |
|---|---|
| Front Panel Height | 80 mm (3.15") |
| Power Requirements | 120 V, 60 Hz |
| Power Consumption | 280 W |
| Standby Power Consumption | <0.5 W |
| Net Weight | 8.94 kg (19.71 lbs.) |
| BTU Rating (4 Ω, 1/8th power) | 632 BTU/h |
| Power Output (FTC) | 92 W/Ch (8Ω) |
| Maximum Power Outpu t (Non FTC) | 150 W/Ch (4Ω) |
| Continuous Power Output (Non FTC) | 80 W/Ch (8Ω) |
| Total Harmonic Distortion (THD) | <0.018% |
| Frequency Response | Line Level Inputs: |
| S/N Ratio (IHF "A" Weighted) | Line Level Inputs: 100 dB |
