Rotel · Integrated Amplifiers
A8
The A8 is a 40W Class AB stereo amplifier with Bluetooth, a phono stage, and a compact footprint.
fig. 01 · integrated amplifiers
A8
From Rotel

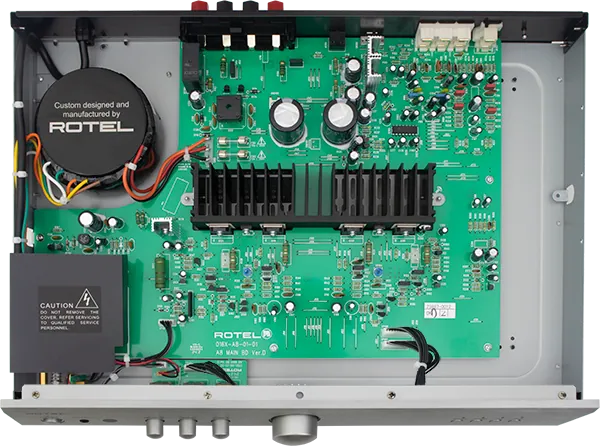

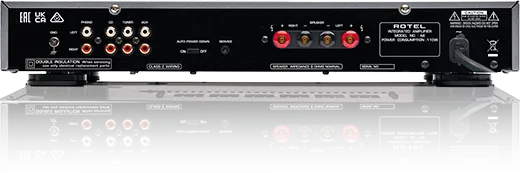

The A8 puts 40W per channel into 4 ohms from a Rotel-built toroidal transformer. Inputs include RCA analog, optical digital, and aptX/AAC Bluetooth.
A moving-magnet phono stage handles turntable duty. The form factor is smaller than Rotel's standard-width components.
It's the entry point in Rotel's current stereo amplifier range.
Specifications
| Dimensions (W × H × D) | 430 × 73 × 347 mm17” x 2 7/8” x 13 5/8” |
|---|---|
| Front Panel Height | 60 mm (2 3/8”) |
| Power Requirements | 120 V, 60 Hz |
| Power Consumption | 110 W |
| Standby Power Consumption | <0.5 W |
| Net Weight | 5.8 kg, 12.8 lbs |
| BTU Rating (4 Ω, 1/8th power) | 340 BTU/ h |
| Power Output | 30 W/ Ch (8 Ω) |
| Total Harmonic Distortion (THD) | <0.03% |
| Frequency Response | Line Level Inputs: 10 Hz - 100k Hz, -0.5 dB, +0 dB |
| S/N Ratio (IHF "A" Weighted) | Line Level Inputs: 90 dB (Max Volume) |
