CD11 Tribute

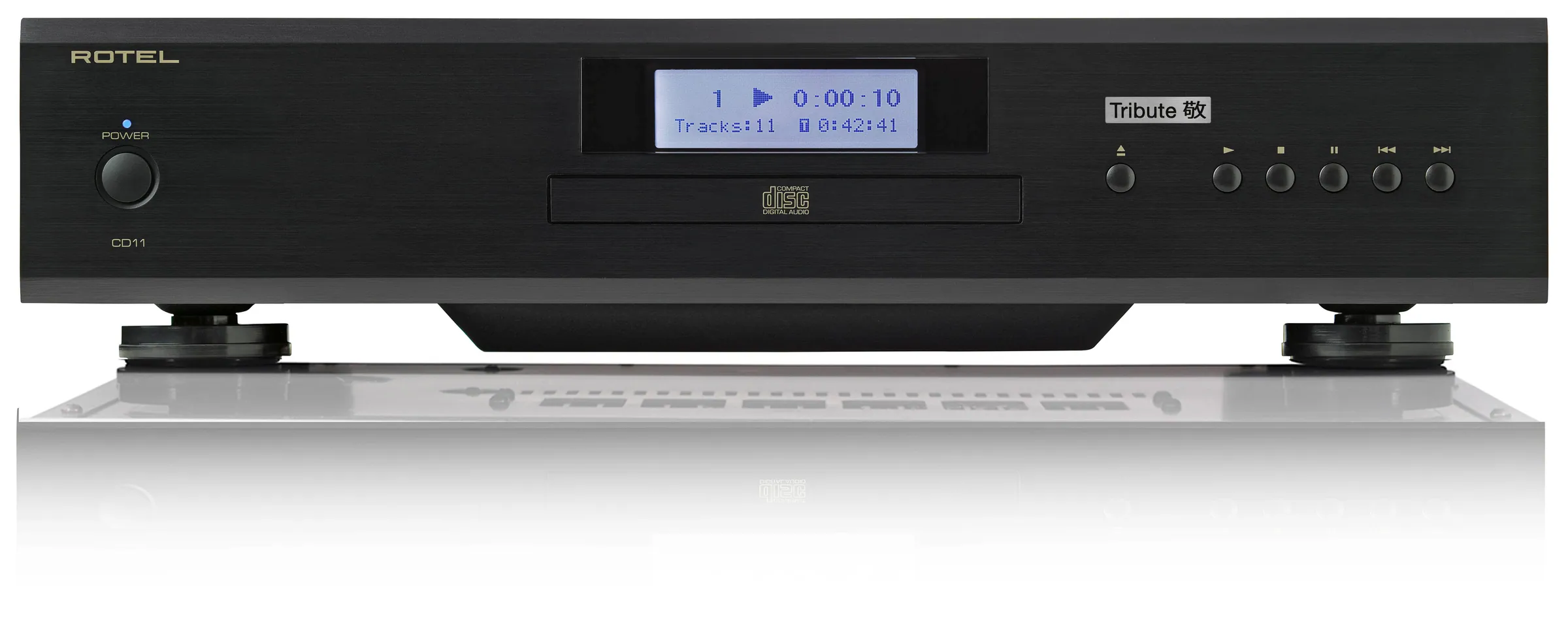

The CD11 Tribute is a CD player engineered with Ken Ishiwata, using acoustically tuned components.
fig. 01 · cd & sacd players
CD11 Tribute
From Rotel

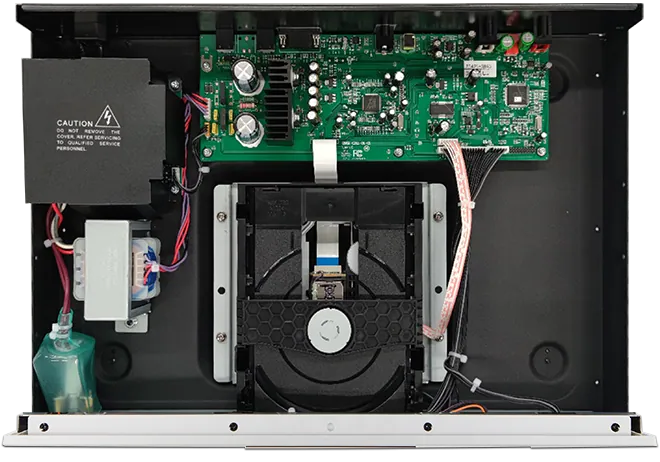

The CD11 Tribute was developed with input from audio engineer Ken Ishiwata. Custom-selected components and acoustic tuning aim for a higher level of clarity and performance than the standard CD11.

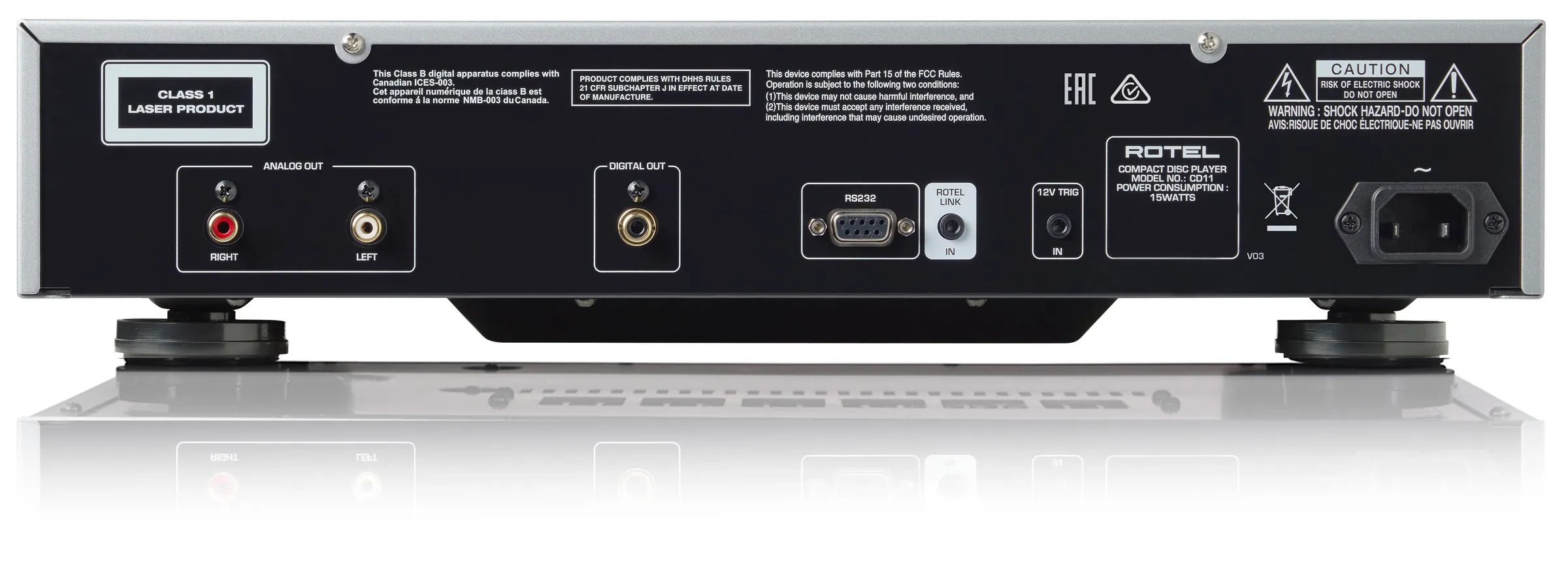

It plays Redbook CDs through analog and digital outputs.
Specifications
| Dimensions (W × H × D) | 430 × 98 × 314mm17" × 3.8" × 12.4" |
|---|---|
| Front Panel Height | 80mm (3.15") |
| Power Requirements | 120V, 60Hz |
| Power Consumption | 15W |
| Standby Power Consumption | <0.5W |
| Net Weight | 5.8kg (12,7lbs.) |
| BTU Rating | 40 BTU/h |
| Total Harmonic Distortion (THD) | 0.009% @ 1kHz |
| Frequency Response | 20Hz - 20kHz ±0.5dB |
| S/N Ratio (IHF "A" Weighted) | >125dB |
| Dynamic Range | >99dB |
| Digital to Analog Converters | Texas Instruments |
| Channel Balance | ±0.5dB |
| Channel Separation | >115dB @ 10kHz |
