Rotel · CD & SACD Players

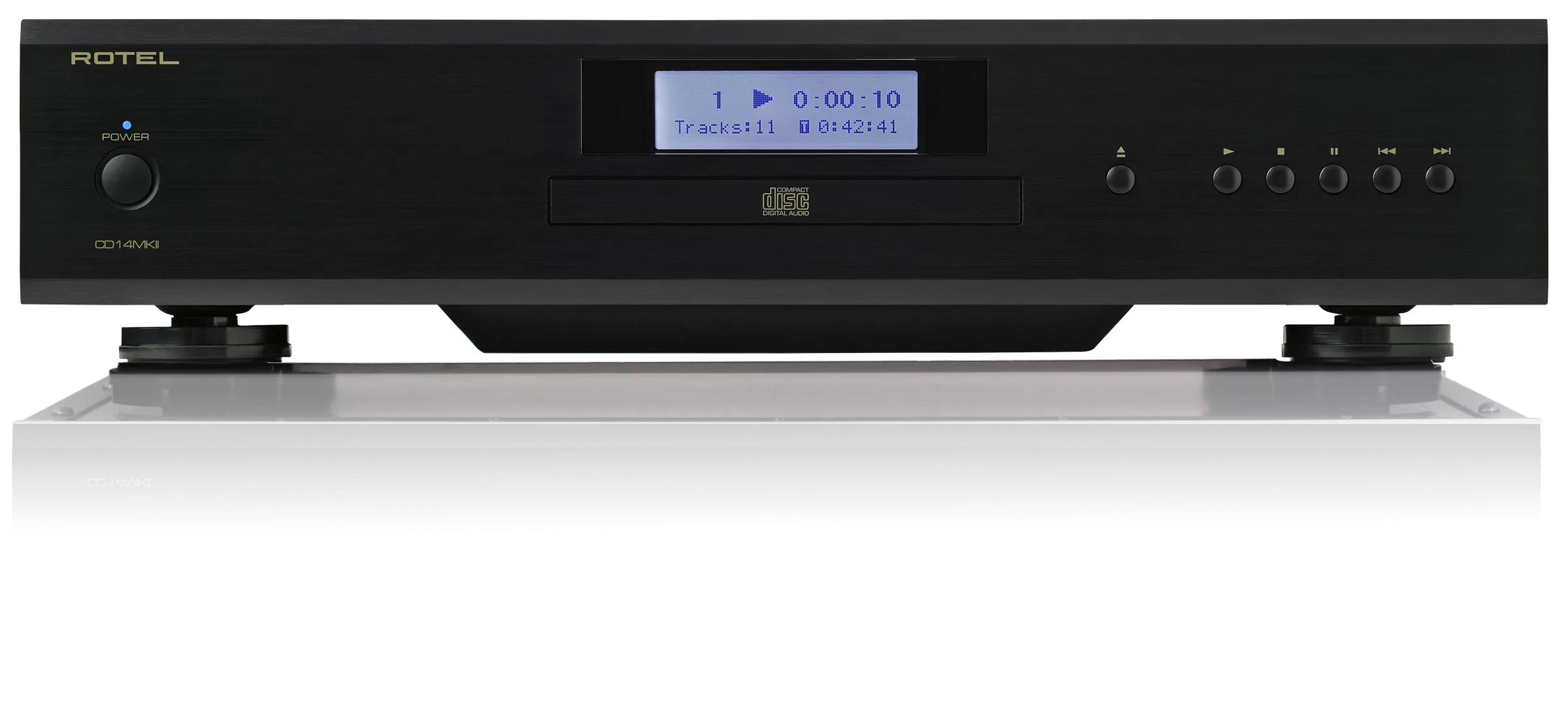

CD14MKII
The CD14MKII is a CD player with a Texas Instruments 32-bit DAC and independent power supplies for motor and audio circuits.
fig. 01 · cd & sacd players
CD14MKII
From Rotel

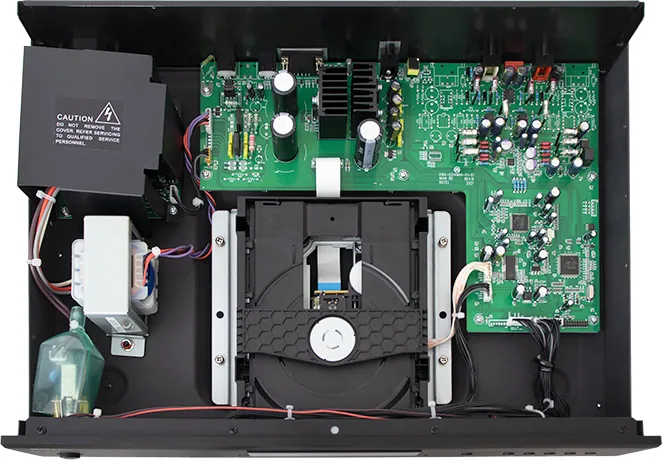

The CD14MKII separates its motor control and audio circuits onto independent power supplies to reduce noise. The Texas Instruments 32-bit DAC handles conversion.

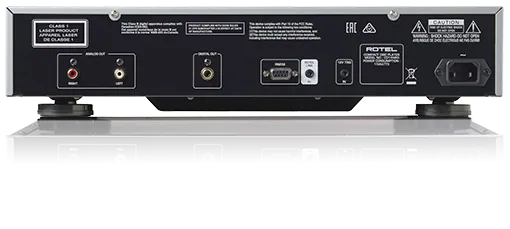

Analog and digital outputs are available. The transport handles standard Redbook CDs.
Specifications
| Dimensions (W × H × D) | 430 × 98 × 314mm17" × 3.8" × 12.3" |
|---|---|
| Front Panel Height | 80mm (3.15") |
| Power Requirements | 120V, 60Hz |
| Power Consumption | 15W |
| Standby Power Consumption | <0.5W |
| Net Weight | 6.51kg (14.35lbs.) |
| Total Harmonic Distortion (THD) | 0.0035% @ 1kHz |
| Frequency Response | 20Hz - 20kHz ±0.5dB |
| S/N Ratio (IHF "A" Weighted) | >118dB |
| Dynamic Range | >99dB |
| Digital to Analog Converters | Texas Instruments |
| Channel Balance | ±0.5dB |
| Channel Separation | >118dB @ 10kHz |
