Rotel · Power Amplifiers
Michi M8
The Michi M8 is a monoblock power amplifier delivering 1,080W into 8 ohms and 1,800W into 4 ohms.
fig. 01 · power amplifiers
Michi M8
From Rotel
The Michi M8 is a Class AB monoblock. It delivers 1,080W into 8 ohms and 1,800W into 4 ohms from a single channel.

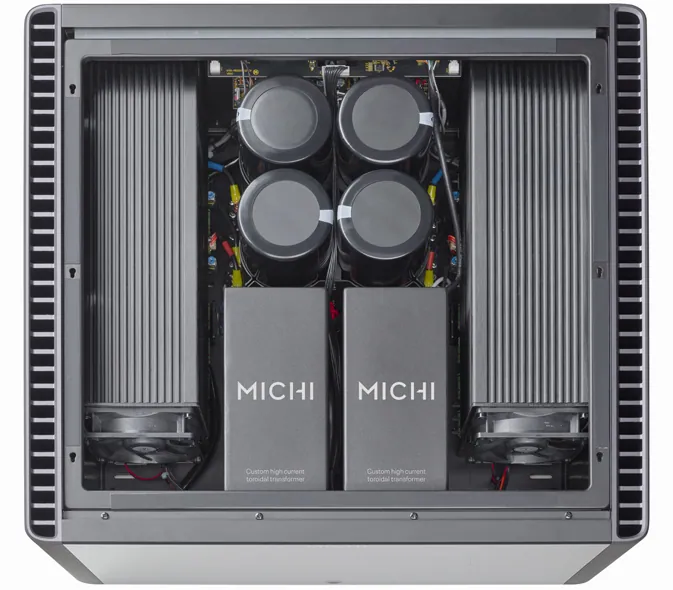

The design architecture uses a massive power supply to maintain control and composure at high output levels. Balanced XLR and unbalanced RCA inputs connect to a preamplifier.
A pair of M8s is the top-tier amplification option in the Michi system.
Specifications
| Dimensions (W × H × D) | 485 × 238 × 465 mm19" × 9.375" × 18.25" |
|---|---|
| Front Panel Height | 220 mm (8.625") |
| Power Requirements | 120 V, 60 Hz |
| Power Consumption | 1200 W |
| Standby Power Consumption | Normal: <0.5 W |
| Net Weight | 59.1 kg (130.3 lbs.) |
| BTU Rating (4Ω, 1/8th power) | 3200 BTU/h |
| Power Output (FTC) | 1170 W/Ch (8 Ω) |
| Continuous Power Output (Non FTC) | 1080 W/Ch (8 Ω) |
| Total Harmonic Distortion (THD) | <0.018% |
| Frequency Response | 20 Hz - 20k Hz (+0 dB, -0.15 dB) |
| S/N Ratio (IHF "A" Weighted) | 120 dB |
| Gain | Unbalanced (RCA): 34 dB |
