Rotel · Preamplifiers
Michi P5 Series 2
The Michi P5 Series 2 is a reference preamplifier with dual 8-channel ESS SABRE DACs and balanced analog inputs.
fig. 01 · preamplifiers
Michi P5 Series 2
From Rotel

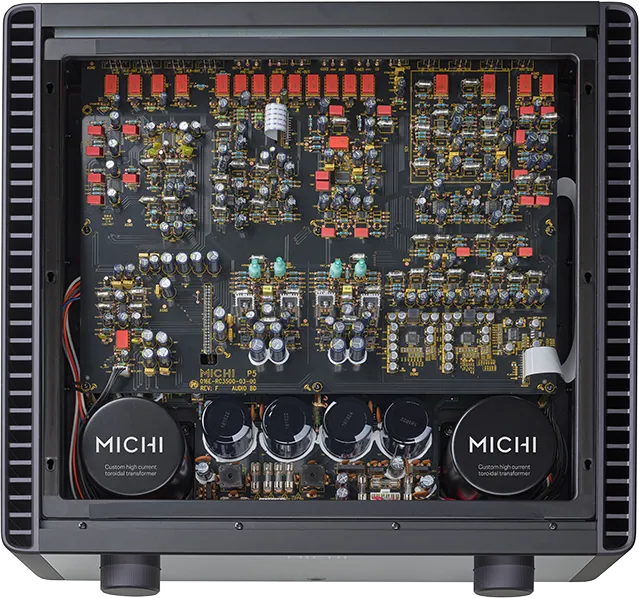

The Michi P5 Series 2 uses dual ESS SABRE 8-channel DACs for its digital section. Inputs cover analog, digital, XLR balanced, MQA-capable USB, and Bluetooth.

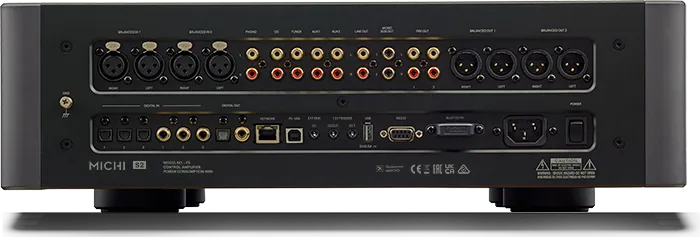

Balanced XLR and unbalanced RCA outputs feed a power amplifier. The P5 Series 2 is the preamplifier in the Michi component lineup, paired with the S5 power amp or M8 monoblocks.
Specifications
| Dimensions (W × H × D) | 485 × 150 × 452mm19" × 6" × 17.75" |
|---|---|
| Front Panel Height | 132mm (5.25") |
| Power Requirements | 120V, 60Hz |
| Power Consumption | 40W |
| Standby Power Consumption | Normal: <0.5W |
| Net Weight | 22.9kg (50.5lbs.) |
| BTU Rating (4Ω, 1/8th power) | 87 BTU/h |
| Total Harmonic Distortion (THD) | (20Hz–20kHz) <0.002% |
| Frequency Response | Line Level Inputs: 10Hz - 100kHz (±0.3dB) |
| S/N Ratio (IHF "A" Weighted) | Line Level Inputs: 116dB |
